COMMANDO AirONE 5KM+, 900Mbps, 5GHz, 802.11ac, MIMO, Wireless Bridge
COMMANDO AirONE 5KM+, 900Mbps, 5GHz, 802.11ac, MIMO, Wireless Bridge
4 in 1 Operation Mode Wireless AP, Gateway, Wireless Bridge & Super WDS, Supports HI-MAX TDMA Technology, Support Multi SSID up to 4, Support Beamforming Technology, MIMO High Gain Omni 15dBi Internal Antenna, 802.11ac, 2T2R 900M MIMO Technology, 8MB Flash, 64M DDR2 RAM, Support 24V Passive PoE

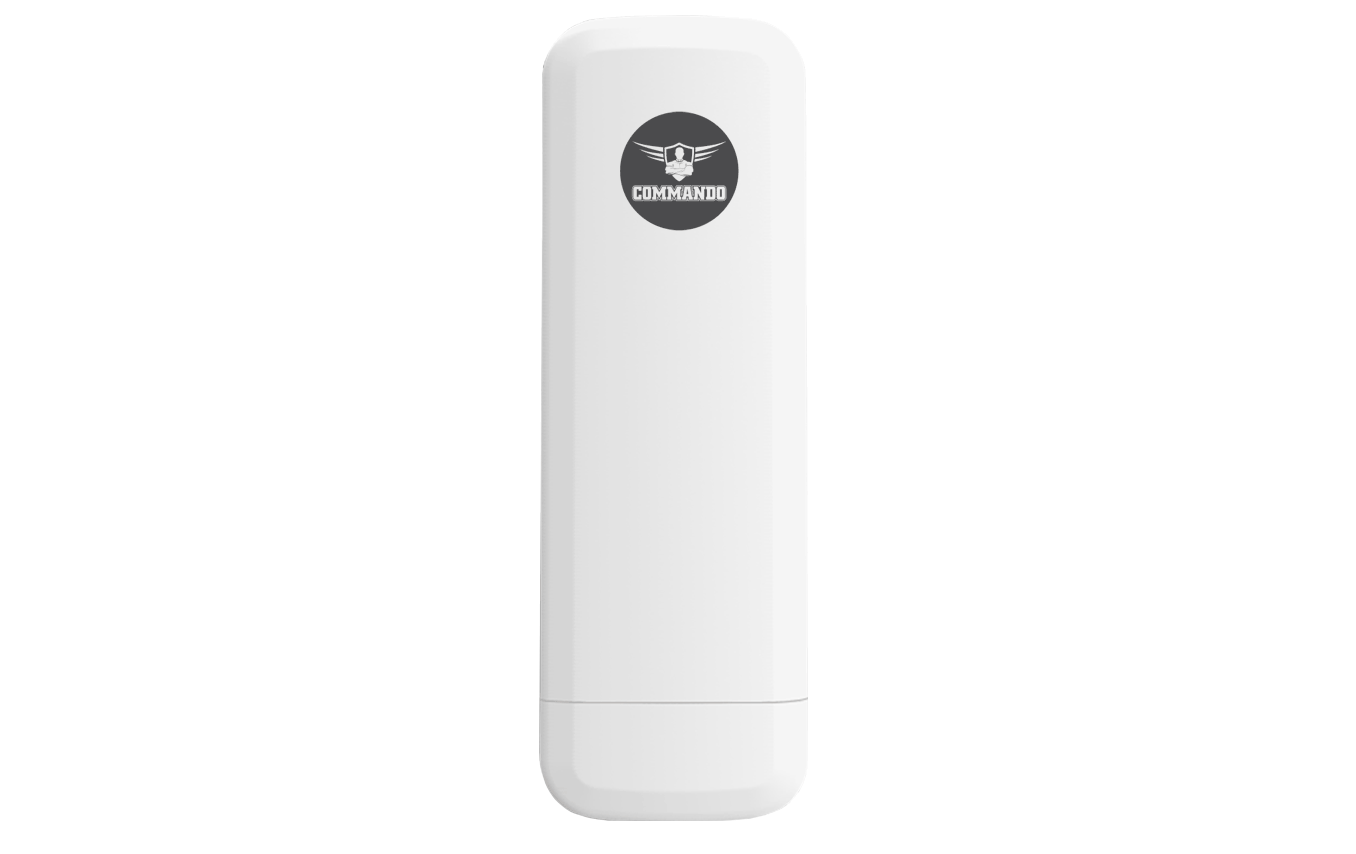

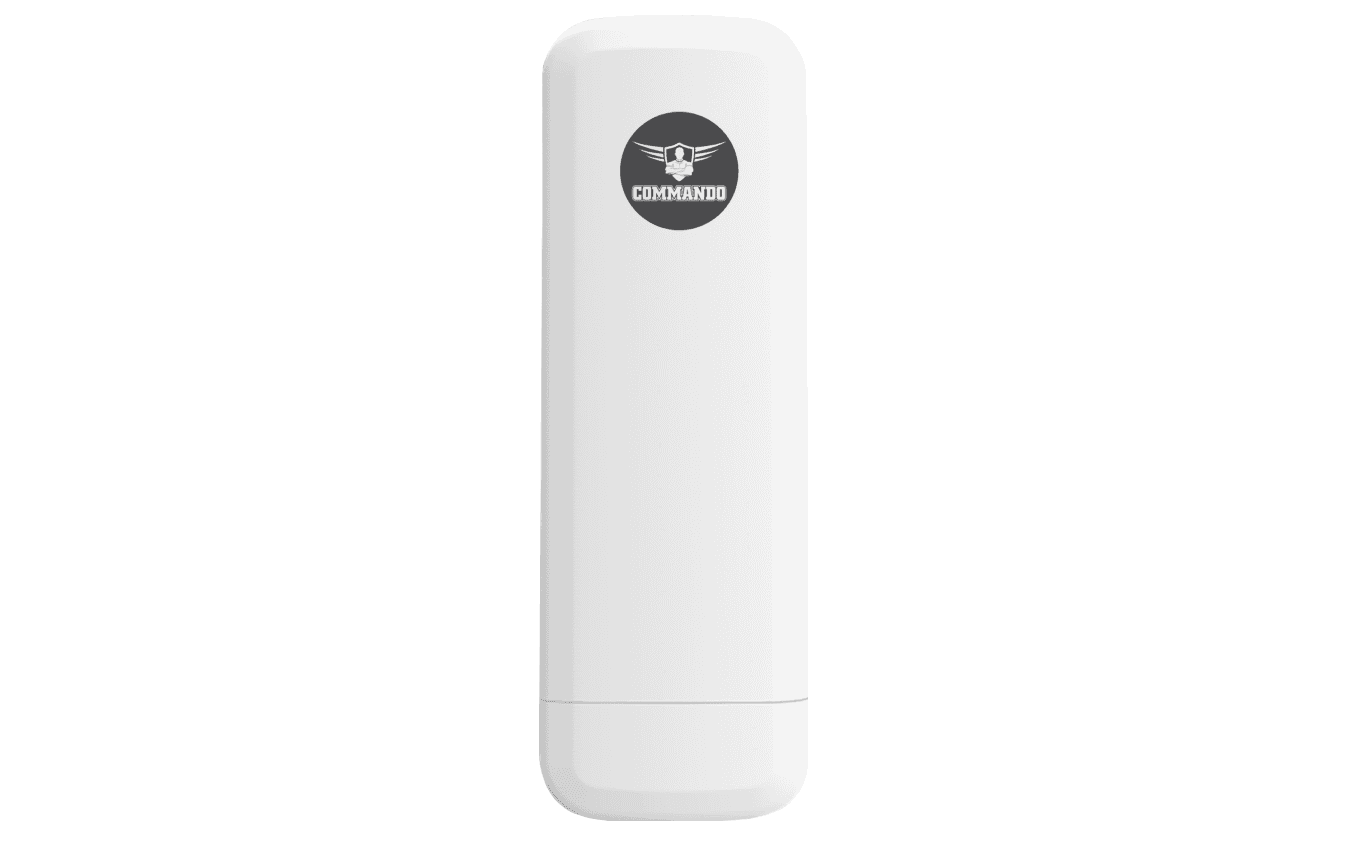

AIR-CPE5K+ is a 900Mbps outdoor wireless CPE/Bridge, Build in 15dBi Omni antenna, 5KM+ Outdoor Wi-Fi Distance Coverage. It supports Wireless AP, Gateway, Wireless Bridge & Super WDS Operation Mode, effective solution for outdoor Wi-Fi coverage application. With an outdoor waterproof and dustproof enclosure, built in lighting protection IC, support 24V passive PoE, 2T2R 900M MIMO Technology, 900Mbps high speed, integrated IEEE 802.3af PoE Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available.
AIR-CPE5K+ Supports HI-MAX TDMA Technology (use polling technique to solve the hidden node and resource waste problem between the CPE and base station, provide low latency, high throughput in PTP/PTMP application likes IP camera, long range Wi-Fi Transmission), Gateway, Wireless AP, WISP, WDS operation mode for all wireless coverage.

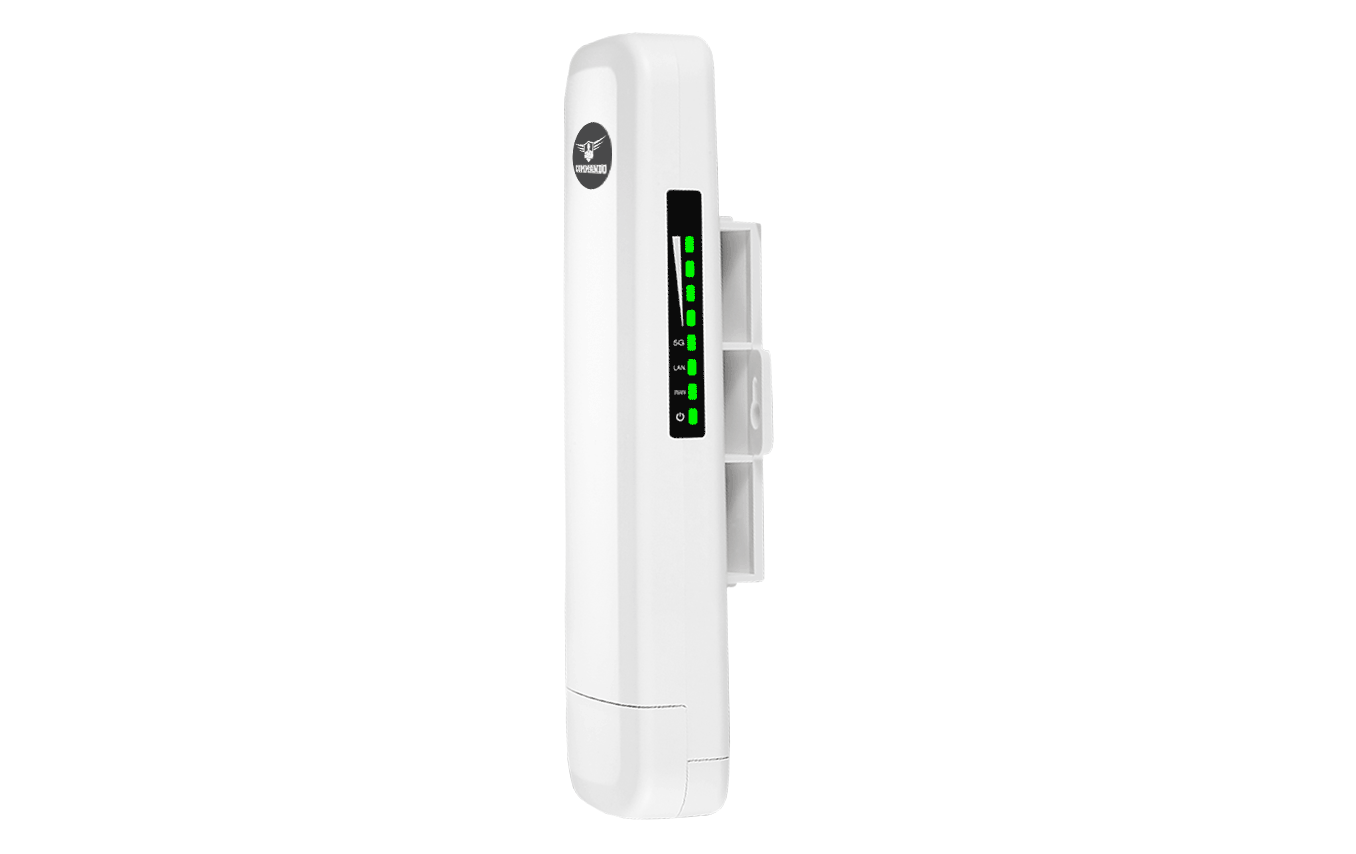

AIR-CPE5K+ support Wireless AP, Gateway, Wireless Bridge, super WDS operation mode, to suit for variety application environment. LED display, easy to setup IP address, signal strength, Channel and WDS connection by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
Time-division multiple access (TDMA) is a channel access method for shared-medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots The users transmit in rapid succession, one after the other, each using its own time slot. This allows multiple stations to share the same transmission medium (e.g. radio frequency channel) while using only a part of its channel capacity
IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, 24V passive PoE Integrated, Plug and Play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Support Wireless AP, Gateway, Wireless Bridge & Super WDS to meet with different installation requirements, such as Gateway for home use, Wi-Fi Repeater to extend the exist Wi-Fi signal to more range
Hardware | |
---|---|
Standard | 802.11ac/a/n, MIMO technology |
Memory | 64MB DDR2 RAM |
Flash | 8MB |
Interface | 1 * 10/100/1000Mbps RJ45 WAN Port 1 * 10/100/1000Mbps RJ45 LAN Port 1 * WDS switch button, press it to do WDS PTE/PTMP connection 1 * DC injector, 12V/1A 1 * Reset button, press 15 seconds to revert to default setting |
Antenna | Build in 15dBi MIMO Panel Antenna |
Power consumption | 24V PoE, <8W |
Size | 260mm * 85 mm * 45mm |
Power | DC 12V/1A;24V PoE Power |
RF Data | |
Frequency | 5GHz: 802.11a/ac 5GHz: 5180~5825MHz |
Throughput | 900Mbps |
Country code | FCC, IC, ETSI, MKK, MKK1, MKK2, MKK3, NCC, RUSSIAN, CN |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK |
Receive Sensitivity& RF Power | |
RF Power | 802.11a: 54M 23±2DB,6M 26±2DB. 802.11n HT20: MCS7 23±2DB, MCS0 26±2DB. 802.11n HT40: MCS7 22±2DB, MCS0 25±2DB 802.11ac HT80: MCS9 20±2DB, MCS0 23±2DB |
Receive Sensitivity | 802.11a:-72dbm@54Mbps, -90dbm@6Mbps. 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 802.11ac HT80: -60dbm@MCS9, -86dbm@MCS0 |
EVM | 802.11n: <=-28 DB 802.11a: <=-25 DB |
Firmware Features | |
Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater, WDS |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
SSID | Multiple SSID up to 4 |
Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
Protocols | IPv4 |
Others | |
Package Contents | 900Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: -44°C~55°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Management | Firmware GUI, Remote Management, WLAN Controller, Cloud Management System |
