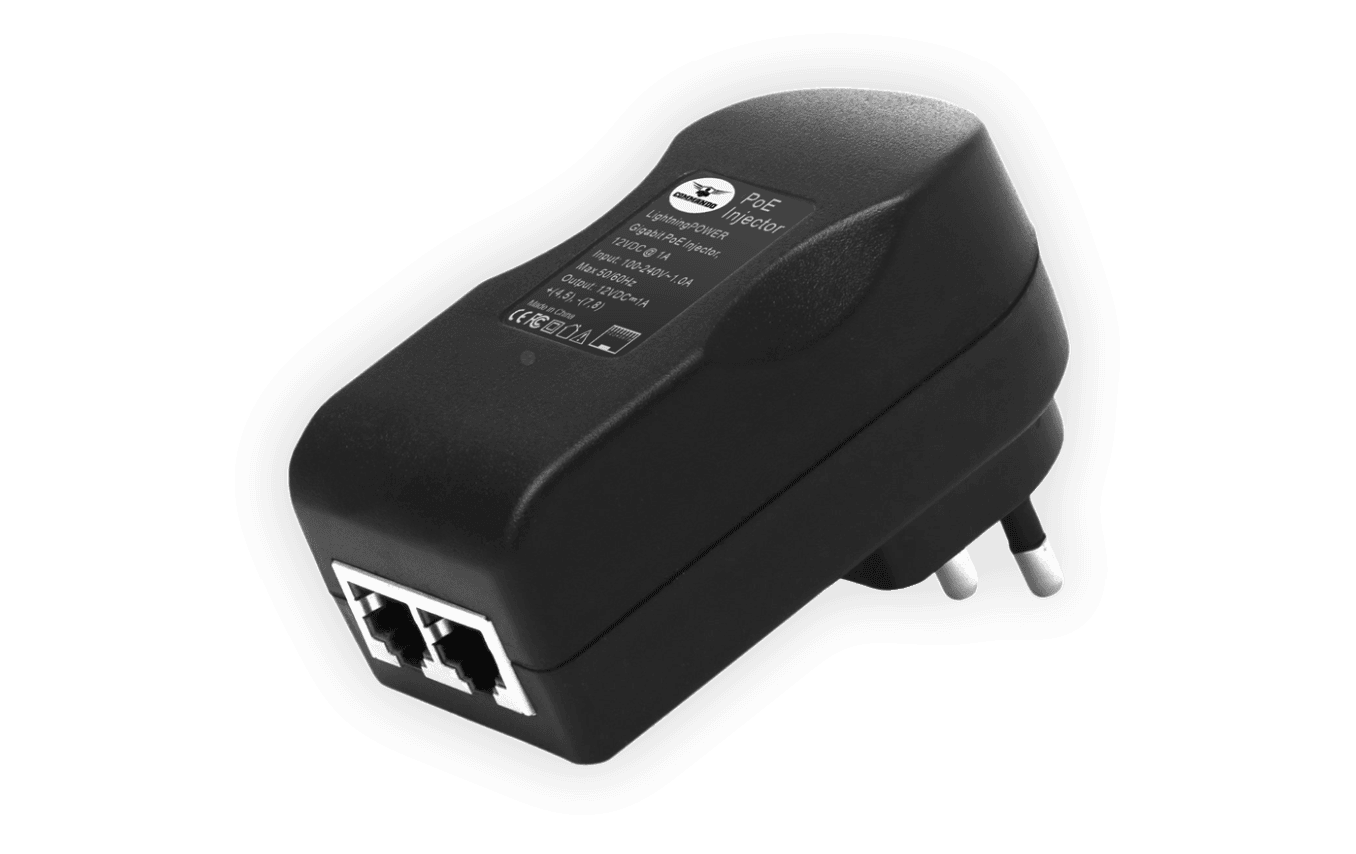

COMMANDO LightningPOWER 10/100/1000Mbps, Max Power 24VDC @ 1A, PoE Injector
COMMANDO LightningPOWER 10/100/1000Mbps, Max Power 24VDC @ 1A, PoE Injector
COMMANDO LightningPOWER 10/100/1000Mbps, Max Power 24VDC @ 1A, PoE Injector
COMMANDO LightningPOWER 10/100/1000Mbps, Max Power 24VDC @ 1A, PoE Injector
COMMANDO LightningPOWER PoE Injector, Power Over Ethernet up to 24VDC@1A (Max 24W), Non-PoE/Non-Compliance PoE Standard, Expands Network to Areas with no Power Lines or Outlets are Available, Plug and Play no Configuration Required, Ideal for use with IP Phone, Access Points, IP Print Servers, Security Cameras, Smart Door System
Price & Availability:
Hardware | |
---|---|
Model | CMD-POE-24V-1A |
PoE Standard | Non-PoE/Non-Compliance Standard |
Input | 100-240V AC, 50-60Hz |
Output | 24VDC@0.5A (Max 15W) |
Interface | 10/100Mbps |
Adjusting range | 90-264VAC, 47-63Hz |
Protection | Short-circuit/over-load/over-current/over-voltage protection |
Pin assignments | Pin (4, 5+/7, 8-) |
Output ripple | 1% max |
Efficiency | >=90% |
Response time | <1ns |
Combined load regulation | ±3% |
Combined line regulation | ±5% |
Operating temp | 0 to 40°C (32 to 104°F) |
Operating humidity | 10 to 90% non condensing |
