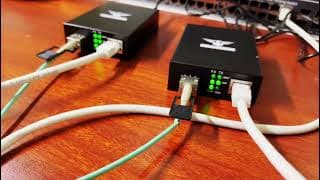

MC-1G+1SFP

Specifications:

• Capable of Gigabit Ethernet connections and provide 1000mbps of data transferring Ethernet RJ45 to SFP Media Converter and vice a versa.
• Auto MDI/MDI-X for copper port 10/100/1000Mbps auto-negotiation for copper port along with Half or full duplex auto-negotiation.
• Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z.
• As per requirement SFP inserted to extend network distance.
• SC single/dual fiber port connector with single/multimode fiber operating at 850/1310/1550nm based on SFP inserted.
• Support Link Fault Pass Through function
• 2048-entry MAC address table with 4-way hash algorithm
• Supports 9216-byte jumbo packet length forwarding
• Built-in function of broadcast storm suppression, traffic control, CRC error verification
• EMC Support, Anti Electro-Static Discharge and Radiation Resistant
• Class 1 FDA Laser Safety
• Full-duplex and half-duplex operation with IEEE 802.3x flow control along with backpressure
• Latest optical module technology with plug and play, reduce & lower optical loss
• Compensate for optical power attenuation and provides no packets loss
• Automatic identification of MDI/MDI-X and cross connections
• Diagnostic LEDs for continuous monitoring real-time network status
• Supports SPANNING TREE for loop free networks
• Power Adapter External DC 5V, 1A with Wide voltage input design, supporting 5 to 12V external adapters
• Compact and durable metallic casing with side vent silent design, perfect for noise sensitive environments
• Plug and Play design simplifies installation with self-adaption. Easy Installation with no setup with Zero Configuration Required
• Competitive and Affordable price with Inbuilt SFP and RJ-45 Port which saves cost. Easy-to-Use Media Converter for Small Business Networks
• A wide range of single-channel Media Converters, suitable for expanding any network depending on the speed and distance of the cable length
• Works in harsh environment with heat dissipation optimization
• Supports Energy-Efficient Ethernet(EEE) function (IEEE 802.3az)
• CE, FCC, ROHS, Lead-Free & ISO 9001:2005
• Environmental Specifications for Operating Temperature: 0°C~50°C and Humidity: 5%~90% Non-condensing
• 2-Year Warranty
