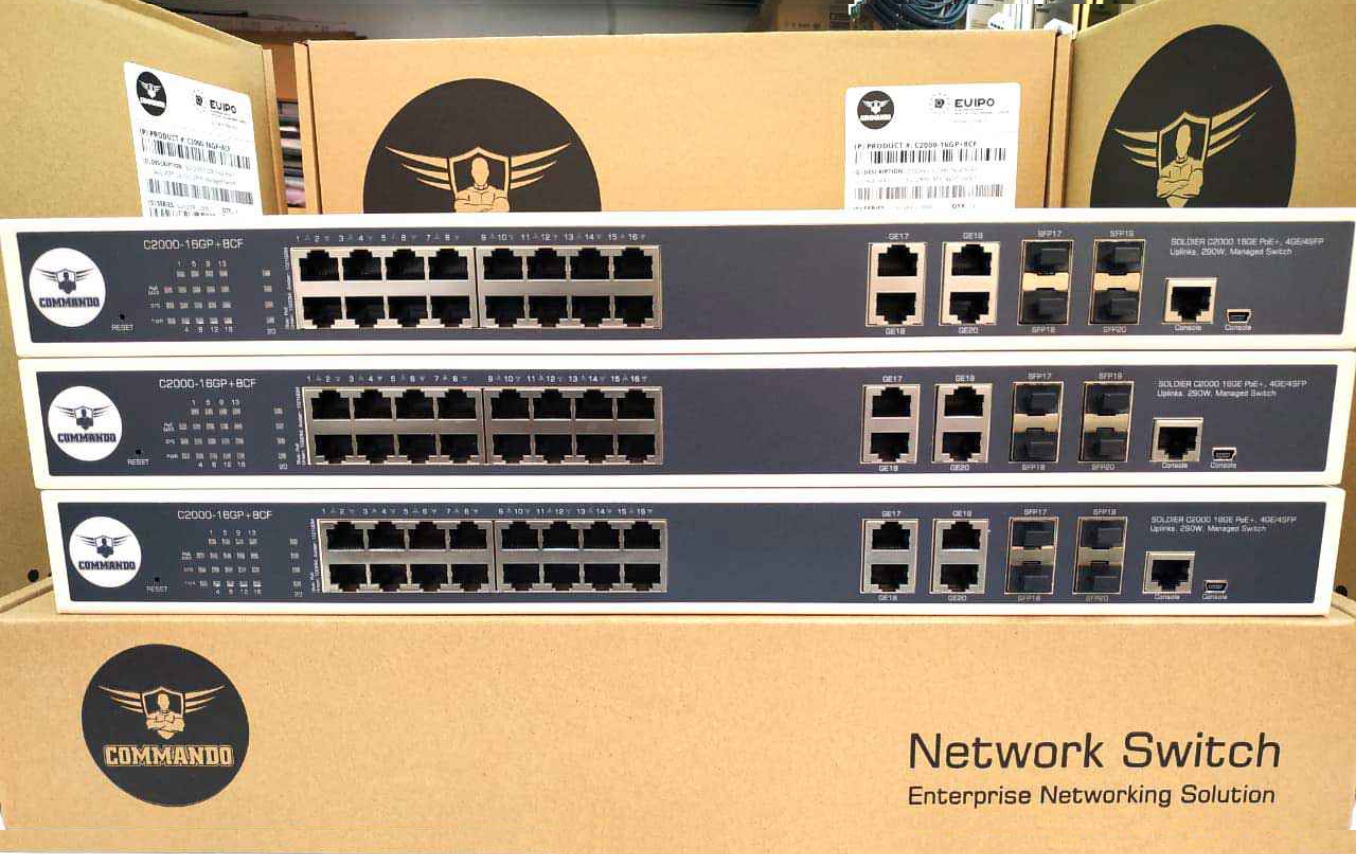

C2000-16GP+8CF

COMMANDO Soldier C2000 16GE Full PoE/PoE+, 4GE/4SFP Combo Uplinks, 290W, Managed Switch

Data Sheet CLI Guide Config Guide Software Comparison YouTube Gallery

C2000-16GP+8CF

COMMANDO Soldier C2000 16GE Full PoE/PoE+, 4GE/4SFP Combo Uplinks, 290W, Managed Switch

HARDWARE HIGHLIGHTS

16 x 10/100/1000M GigE PoE+ ports
4 x 10/100/1000M GigE Uplink slots
4 x 1G SFP Uplink slots
1 x RJ45 Console port
1 x USB Console port
16 x IEEE802.3af 15.4W PoE ports
8 x IEEE802.3at 30W PoE+ ports
Power Budget: 290W
Switching Capacity: 40 Gbps
Thunder Protection: ±6 kV

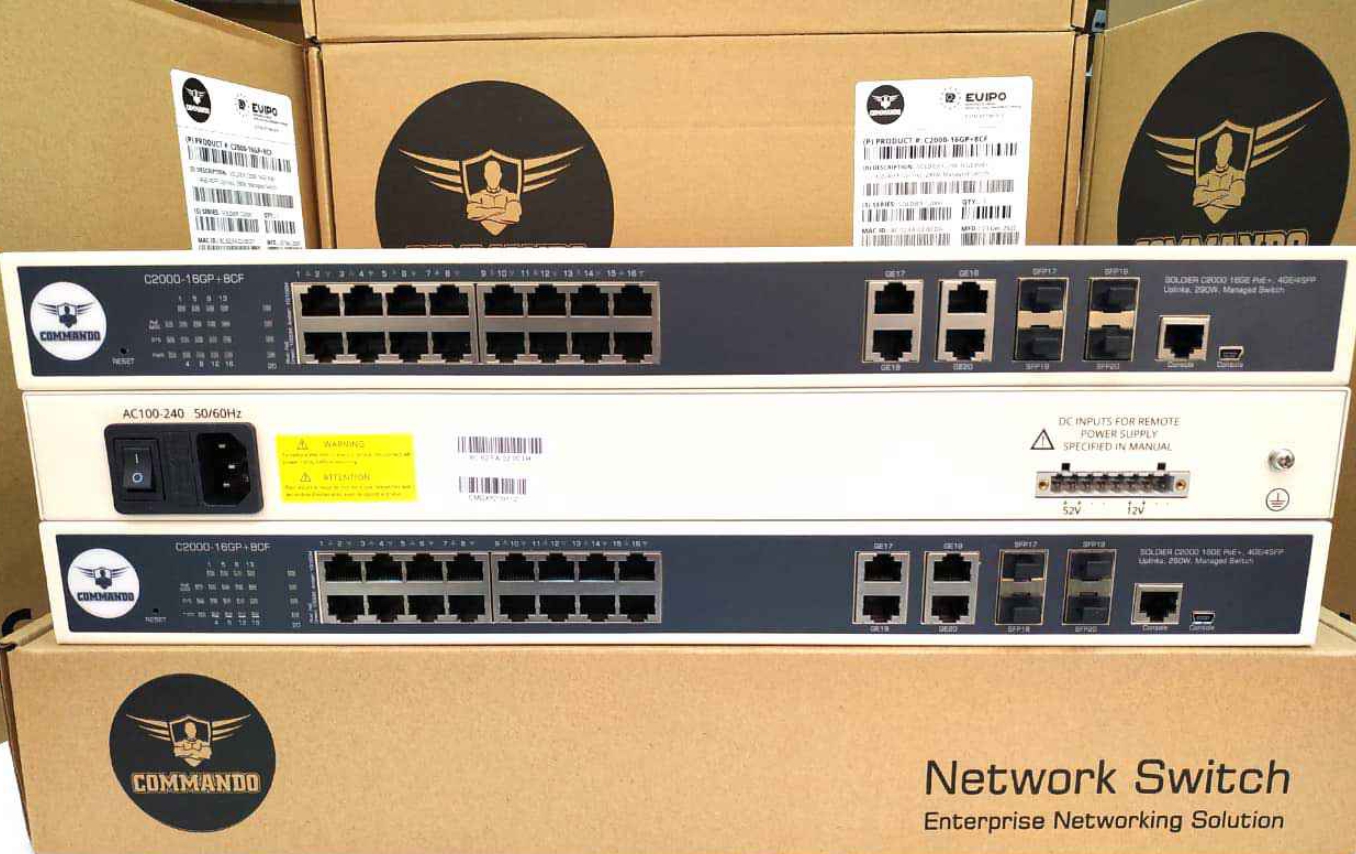

Power Supply: AC + DC
AC: 100~240V 50/60Hz, DC: 12V and 52V
SoldierOS L2+ Software Feature Set
L2+ PoE+ Managed Switch
5 Year Extendable Warranty

SOFTWARE HIGHLIGHTS (SoldierOS L2+)


Highlights:

DHCP Server
Intelligent PoE Scheduling
Watchdog Function
Dual Image
Automated Traffic Control
Sflow
Traffic Segmentation
MAC Notification

L3 Features:

L3 Static/Default Route
Gratuitous ARP
IPv6

L2 Features:

MAC Table 8K to 16K
802.3x Flow Control
Back Pressure
HOL Blocking Prevention
Jumbo Frame
ERPS
Port Mirroring
RSPAN
Auto Loopback Detection and Prevention
L2 Protocol Tunneling
Link Aggregation Static / 802.3ad LACP
STP/RSTP/MSTP
IGMP Snooping v1/v2/v3
Multicast VLANs
MLD v1/v2 Snooping
PIM Snooping
VLAN - IP Subnet / Protocol / Voice / Surveillance / MAC based / Q in Q / Guest
IEEE802.1Q with 4K VLAN groups and 4K VIDs
GARP/GVRP
Auto-negotiation for Port speed, PoE Power and Duplex mode with Flow Control
VLAN Trunking
Traffic Segmentation
IGMP Querier / Snooping v1, v2, v3 / Throttling / Filtering / Immediate Leave
MVR
Mirror - Port Based (One to One, Many to One) / VLAN based / MAC based
Ethernet Ring Protection Switching

QoS Features:

Queue Scheduling: SP, WRR, SP+WRR
Traffic classification based on Port / IEEE 802.1p / DSCP
Enhanced QoS (Shaping /Re-Marking)
DiffServ
Port based Egress / Igress Rate limiting
Flow based Rate Limit
Voice VLAN
Surveillance VLAN

Security Features:

IP-MAC-Port-VID Binding
DoS Defend
Dynamic ARP Inspection
802.1x Authentication
RADIUS / TACACS+
ACL L4 / L3 / L2 / ARP / Time
Storm Control
HTTPS / SSLv2 / v3 / TLSv1 Secure Web Access
Secure Remote with SSH v1/V2
MAC Authentication with Dynamic VLAN / Dynamic QoS / Authentication By-pass
Web Authentication
Port Security with Violation Action Trap and/or Shutdown
AAA Model
Local user database
DHCP Snooping & Option 82
ARP Inspection
IP Source Guard
IP Filter for Web, SNMP , TELNET
Automatic Traffic Control (ATC) for Broadcast and Multicast

Management Features:

User friendly Web GUI
Feature rich and standard CLI
SNMP v1/v2c/v3
RMON (1, 2, 3, 9 Groups)
DHCP Server / Client / Snooping / Option 82
CPU Monitoring
Cable Diagnostics
Ping / Trace route
SNTP
System Log
Login Banner
CLI via Console port or Telnet/SSH
SNMP v1, v2c, v3 with MAC Notification Trap
Firmware Upgrade via TFTP/FTP/HTTP
Configuration file Upload / Download via TFTP/FTP/HTTP
BOOTP, DHCP Client
SNTP
LLDP (802.1ab) and LLDP-MED
DNS
Event/Error log / System log
Remote Syslog
SMTP Support for logs
CPU and Memory Utilization Monitoring
Ports Statistics and Chart
Cable Diagnostic
Scheduled Reload
Reset to Factory Default
Energy Efficient Ethernet IEEE 802.3az
