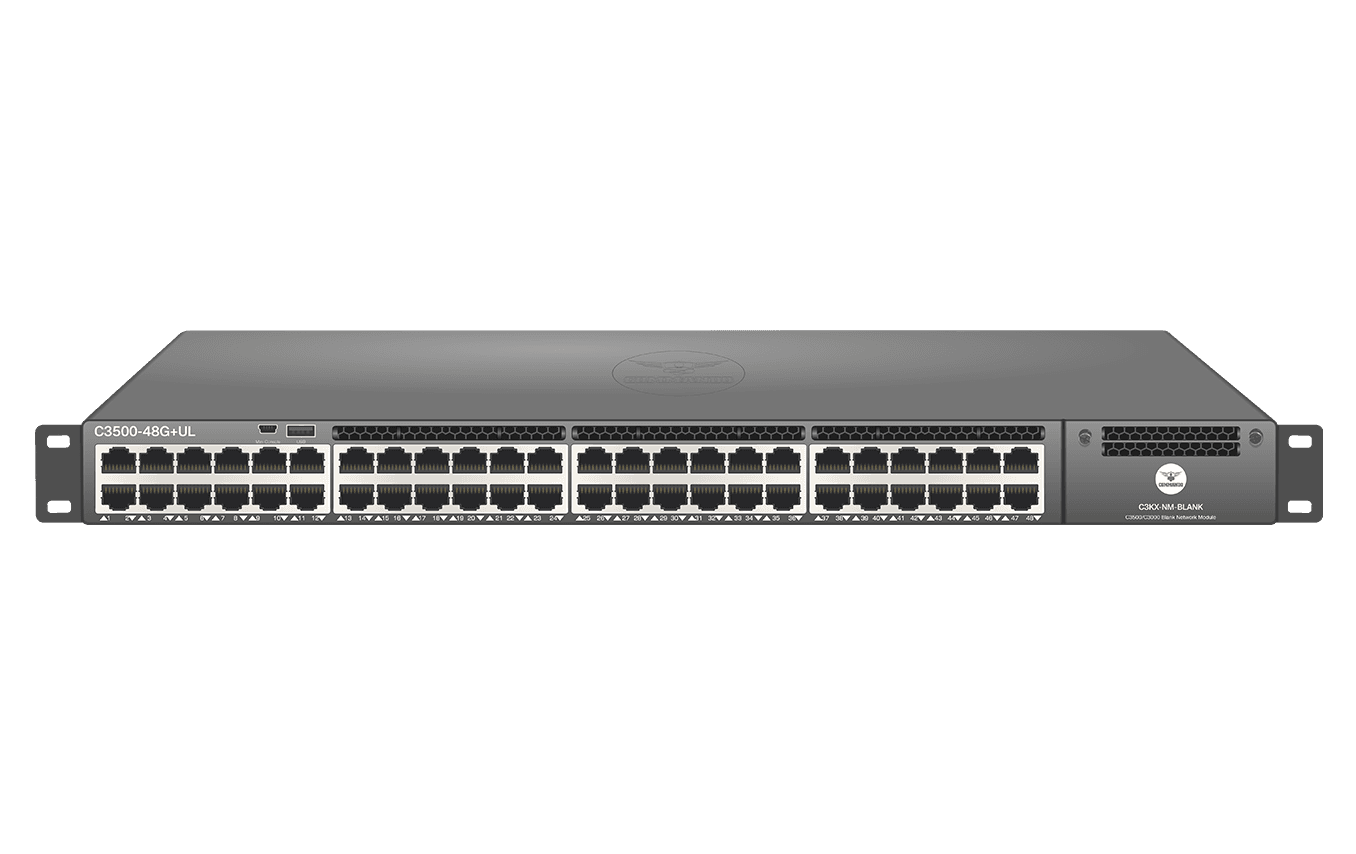

C3500-48G+UL

COMMANDO Marshall C3500 48GE, FRU PWR 75W, Modular Uplinks, Managed Core Switch

Click on image to expanded

C3500-48G+UL

COMMANDO Marshall C3500 48GE, FRU PWR 75W, Modular Uplinks, Managed Core Switch

COMMANDO Marshall C3500, 48 10/100/1000Mbps Ethernet ports, Support Modular uplink 2/4/8 Ports 1G Fiber/Copper Network Module & 2/4/8 Ports 10G Fiber/Copper Network Module, FRU Power Supplies 75W, Support Stacking up till 6 switch, 160Gbps Bandwidth, 9198 bytes Jumbo frames, 128Gbps - 880Gbps Switching Capacity, 190.4Mpps - 1309Mpps Forwarding Rate, IPv4/IPv6 Routes, Multicast Routing, Switched Virtual Interfaces (SVIs), QoS, ACL, Packet Buffer, Flexible NetFlow (FNF), 2GB DRAM, 8GB Flash, L3, Marshall OS IP Service, Managed Core Switch

Information

COMMANDO Marshall C3500 latest Development of Gigabit Layer 3 Access/Core Switch, with Modular uplink, Second Generation Intelligent Managed Switches Designed for Networks Requiring High Performance, High Port Density, High uplink Bandwidth and easy to Deploy, Deliver High Performance, Flexibility, Fault Tolerance, and Advanced Software Features for Maximum Return on Investment, can act as Core, Distribution or Access Layer Switches, High port densities Gigabit Ethernet, SFP, 10G SFP+, Security features, and Advanced Quality of Service (QoS), ideal for all Organizations considering reliable, affordable and simple CORE/Distribution/Access layer switching with CLI and WEB Managed, advanced PoE IEEE 802.3af Power over Ethernet (PoE) provides up to 15.4W per port, IEEE 802.3at Power over Ethernet Plus (PoE+) provides up to 30W per port, both IEEE 802.3at Layer 2 LLDP method and 802.3at 2-event classification methods are supported for compatibility with all PoE+ PD devices, scripting capabilities and Layer 3 routing, Automatic MDIX and Auto-negotiation on all ports select the right transmission modes (half or full duplex) as well as data transmission for crossover or straight-through cables dynamically for the admin, COMMANDO Switch can save up to 58% of power consumption, making it an eco-friendly solution for your business network

Modular Uplinks

Marshall C3500 Series switches come with modular uplinks, uplink module slot can accept either a 2/4/8 Ports 1G/10G/40G & 100G Fiber/Copper Network Module. Modular Ordering Information.

Modular Ordering Information
Network module Description
C3500-NM-2SFP 2 x 1G Fiber Network Module
C3500-NM-2X 2 x 1G/10G Fiber Network Module
C3500-NM-4SFP 4x 1G Fiber network module
C3500-NM-4X 8x 1G Fiber network module
C3500-NM-8SFP 8x 1G Fiber network module
C3500-NM-8X 8x 1G/10G Fiber network module
C3500-NM-2Q 4x 1G/10G Fiber and 2x 40G Fiber network module
C3500-NM-2XT 2 x 1G/10G Copper Network Module
C3500-NM-4XT 4 x 1G/10G Copper Network Module
C3500-NM-8XT 8 x 1G/10G Copper Network Module
C3500-NM-2X+2XT 2 x 1G/10G Fiber and 2 x 1G/10G Copper Network Module
C3500-NM-4X+4XT 4 x 1G/10G Fiber and 4 x 1G/10G Copper Network Module
C3500-NM-BLANK No network module
Stacking

COMMANDO MARSHALL C3500 Series switch models are designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 384 access ports. The default stacking cable is 0.5 m, but options of 1 m and 3 m are also available. Table 5 lists the stacking accessories.

Stacking Kit Ordering Information

Model Description
C3500-STACK-KIT Stack kit for C3500 SKUs only: Two data stack adapters and one data stack cable
C3500-STACK-KIT Stack kit for C3500 SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable
Power supplies

Marshall C3500 Series switches support dual power supplies, Dual user-replaceable redundant power supply modules provide an extremely high level of switch/router reliability, for those applications where the possibility of a power supply single-point-of-failure cannot be tolerated. One default power supply, and a second identical power supply can be installed when required, this second power supply can provide redundancy or additional power to PoE+ ports as needed.

Secondary Power Supplies Ordering Information
Power supplies Description
PWR-C3500-75WAC= C3000 75WAC Power Supply, Spare
PWR-C3500-500WAC= C3000 500WAC Power Supply, Spare
PWR-C3500-800WAC= C3000 800WAC Power Supply, Spare
Fan

COMMANDO MARSHALL C3500 Series switches also come with dual fans and support redundancy. COMMANDO MARSHALL C3500 Series switches support redundancy with dual fans. On the C3500 SKUs, the fan units are field-replaceable, whereas on the fixed C3500 SKUs, the fan units are fixed

Fan modules
FRU FAN Model Description
FRU-FAN-3000 3000 rpm Temperature Control Fan module
FRU-FAN-5000 5000 rpm Temperature Control Fan module
FRU-FAN-10000 10000 rpm Temperature Control Fan module
PRODUCT CODE SUPPORTING SFP
CMD-SM-1G COMMANDO CMDFiber GBIC-LX/LH, SFP, 1310nm, MMF/SMF, 550m/10km, DOM, Compatible w/ Cisco GLC-LH-SMD
CMD-MM-1G COMMANDO GBIC-SX, SFP, 850nm, 550m, MMF, DOM, Compatible w/ Cisco GLC-SX-MMD
CMD-SM-LX-10K COMMANDO CMDFiber 1000BASE-LX/LH, SFP, 1310nm, MMF/SMF, 550m/10km, LC, DOM
CMD-SM-LH-20K COMMANDO CMDFiber 1000BASE-LX/LH, SFP, 1310nm, SMF, 20km, LC, DOM
CMD-SM-EX-40K COMMANDO CMDFiber 1000BASE-EX, SFP, 1310nm, SMF, 40km, LC, DOM
CMD-SM-ZX-80K COMMANDO CMDFiber 1000BASE-ZX, SFP, 1550nm, SMF, 80km, LC, DOM
CMD-SM-EZX-120K COMMANDO CMDFiber 1000BASE-EZX, SFP, 1550nm, SMF, 120km, LC, DOM
CMD-ZX-1G-RGD COMMANDO CMDFiber 1000BASE-ZX, SFP, 1550nm, 80km, SMF, DOM, Extended Distance, Rugged
CMD-LX-1G-RGD COMMANDO CMDFiber 1000BASE-SX, SFP, 850nm, 550m, MMF, DOM, Short Wavelength, Rugged
PRODUCT CODE SUPPORTING SFP
CMD-SM-1G COMMANDO CMDFiber GBIC-LX/LH, SFP, 1310nm, MMF/SMF, 550m/10km, DOM, Compatible w/ Cisco GLC-LH-SMD
CMD-MM-1G COMMANDO GBIC-SX, SFP, 850nm, 550m, MMF, DOM, Compatible w/ Cisco GLC-SX-MMD
CMD-SM-LX-10K COMMANDO CMDFiber 1000BASE-LX/LH, SFP, 1310nm, MMF/SMF, 550m/10km, LC, DOM
CMD-SM-LH-20K COMMANDO CMDFiber 1000BASE-LX/LH, SFP, 1310nm, SMF, 20km, LC, DOM
CMD-SM-EX-40K COMMANDO CMDFiber 1000BASE-EX, SFP, 1310nm, SMF, 40km, LC, DOM
CMD-SM-ZX-80K COMMANDO CMDFiber 1000BASE-ZX, SFP, 1550nm, SMF, 80km, LC, DOM
CMD-SM-EZX-120K COMMANDO CMDFiber 1000BASE-EZX, SFP, 1550nm, SMF, 120km, LC, DOM
CMD-ZX-1G-RGD COMMANDO CMDFiber 1000BASE-ZX, SFP, 1550nm, 80km, SMF, DOM, Extended Distance, Rugged
CMD-LX-1G-RGD COMMANDO CMDFiber 1000BASE-SX, SFP, 850nm, 550m, MMF, DOM, Short Wavelength, Rugged
PRODUCT CODE SUPPORTING 1GbE SFP
CMD-T COMMANDO GBIC-T SFP, Copper, RJ-45, 100m, Standard, Compatible w/ Cisco GLC-T
PRODUCT CODE SUPPORTING SFP+
CMD-SR-10G COMMANDO CMDFiber 10GBASE-SR, SFP+, 850nm, 300m, MMF, DOM, Compatible w/ Cisco SFP-10G-SR
CMD-LR-10G COMMANDO CMDFiber 10GBASE-LR, SFP+, 1310nm, 10km, SMF, DOM, Compatible w/ Cisco SFP-10G-LR
CMD-ER-10G COMMANDO CMDFiber 10GBASE-ER, SFP+, 1550nm, 40km, SMF, DOM, Compatible w/ Cisco SFP-10G-ER
CMD-ZR-10G COMMANDO 10GBASE-ZR/ZW,SFP+, 1550nm, 80km, SMF, DOM, Compatible w/ Cisco SFP-10G-ZR
PRODUCT CODE SUPPORTING 1GbE SFP+
CMD-UTP-10G COMMANDO 10GBASE-T Copper RJ-45, SFP+, Up to 100m, CAT 6a/7
PRODUCT CODE SUPPORTING QSFP+
CMD-SR4SM-40G COMMANDO CMDFiber 40GBASE-SR4, QSFP+, 850nm, 150m, MMF, MTP/MPO, DOM
CMD-LR4SM-40G COMMANDO CMDFiber 40GBASE-LR4 and OTU3, QSFP+, 1310nm, 10km, SMF, LC duplex, DOM
PRODUCT CODE SUPPORTING QSFP28+
CMD-SR4S-100G COMMANDO CMDFiber 100GBASE-SR4, QSFP28+, 850nm, 100m, MTP/MPO-12, MMF, DOM
CMD-LR4S-100G COMMANDO CMDFiber 100GBASE-LR4, QSFP28+, 1310nm, 10km, LC duplex, SMF, DOM
Rich L3 Features

Marshall C3500 L3 Managed Core Switch Series Delivers High-performance, Hardware Based Unicast routing, Static routes, RIPv1&v2, OSPF, BGP, ECMP, Routing policies, Policy-based routes (PBR), uRPF check & VRF, With Marshall C3500 Series, customers could easily achieve Policy based Route (PBR), More function of Routing available in Multicast routing such as IGMPv1/v2/v3, PIM-SM, PIM-SSM, PIM-DM, Static multicast & Mroute-RPF, IPv6 Unicast routing & IPv6 Multicast routing with L3 IOS Image available in Marshall C3500 Managed Core Switch.

QoS

Marshall C3500 giving optimal performance to real-time applications such as voice and video, Traffic classification, Traffic behaviors, Queue scheduling, Congestion avoidance, Shaping & Device reliability, preserves network bandwidth and allows full control of network resources, Traffic classification based on the combination of the MAC address, IPv4/IPv6 Address, IP precedence and TCP/UDP port number, L2 protocol header, TCP, UDP, outgoing interface, and 802.1p field, With 8 queues per port, enable differentiated management of up to 8 traffic types.

Enhanced Security

IEEE 802.1X port-based access control and MAC-based access control ensure all users are authorized before being granted access to the network. Ingress/Egress Access Control Lists (ACL’s) can be used to restrict access to sensitive network resources by denying packets based on L2/L3/L4 headers Information, and for some services are based on time, the product can support time based ACL to match the requirement. System Security such as Hierarchical CLI protection to prevent unauthorized users from accessing Switch SSH v2.0, RADIUS and TACACS+ Authentication, ACL filtering (Standard ACL and extend ACL),DHCP Packet Filtering (Option 82), ARP Inspection, IP Source Guard, CPU Traffic Limit, Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood), BHM (Beat Heart Monitor).

Go Green with Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation COMMANDO Gigabit Unmanaged Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The COMMANDO can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The COMMANDO analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.p>

Specification

Hardware
ModelC3500-48+UL
Port48 10/100/1000Mbps
UplinkModular
C3500-NM-2SFP
C3500-NM-2X
C3500-NM-4SFP
C3500-NM-4X
C3500-NM-8SFP
C3500-NM-8X
C3500-NM-2Q
C3500-NM-4X+2Q
C3500-NM-2XT
C3500-NM-4XT
C3500-NM-8XT
C3500-NM-2X+2XT
C3500-NM-4X+4XT
C3500-NM-BLANK
Management port1 Console
Reset KEY1
Bandwidth160Gbps
Jumbo Frames9198 bytes
Switching Capacity128 Gbps - 880 Gbps
Forwarding Rate190.4 Mpps - 1309 Mpps
VLAN IDs4096
MAC addresses32000
IPv4 routes14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries4000
IPv6 routing entries2000
Multicast routing scale1000
Switched Virtual Interfaces (SVIs)1000
QoS scale entries1000
ACL scale entries1600
Packet buffer per SKU6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM2 GB
Flash8 GB
Thunder Protection6KV
EnvironmentalOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
FRU Power inAC 100~240V 50/60hz
FRU Fan Quantity2PCS
Dimensions ( W x D x H )232*152*45 mm
CertificationCE, FCC
Ethernet Basic Features
EthernetEthernet interface operating modes: full duplex, half duplex, and auto-negotiation
Ethernet interface operating rates
Jumbo frames
Flow-control tx/rx
Port based storm-control
Port-block(know-unicast/unknow-unicast/know-multicast/unknow-multicast/broadcast)
Uni-direction isolate
L2 Protocol Tunnel (support CDP/CFM/DOT1X/LLDP/SLOW-PROTO/STP/VTP
Store-and-forward
Cut-through
VLANAccess/Trunk
Default VLAN
VLAN Classification (port based/mac based/ip based/protocol based)
Basic QinQ
Selective QinQ
Selective QinQ
VLAN Mapping?1:1 VLAN Translation?
VLAN Statistics
Private VLAN
Voice VLAN
Guest VLAN
MACAutomatic learning and aging of MAC addresses
Hardware Learning
Static and dynamic MAC address entries
blackhole MAC
MAC Flapping detect
Port Bridge
Ethernet Loop Protection
xSTPSpanning-Tree Protocol
Rapid Spanning-Tree Protocol
Multi-instance Spanning-Tree Protoco
BPDU Filter/Guard
Root Guard
Loop Guard
Anti TC-BPDU attack
ERPSSingle ERPS ring
tangent ERPS rings
tangent ERPS rings
intersecting ERPS rings
compatible with RRPP
G.8031G.8031?Ethernet Linear Network Protection?
G.8032G.8032 V1 & V2
Single Ring
Sub Ring
Loopback DetectLoopback-detection
Layer 2 multicast
Layer 2 multicastIGMPv1/v2/v3 Snooping
Fast leave
Static IGMP snooping group
MVR?Multicast VLAN Registration?
IPv4 Forwarding
ARPStatic and dynamic ARP entries
Aging of ARP entries
Gratuitous ARP
basic ARP-Proxy
local ARP-Proxy
IPv4 Unicast RoutingIPv4 Static Routes
blackhole Routes
co-work with IP SLA
VRF?Virtual Routing and Forwarding?
uRPF check
RIPv1/v2
OSPFv2
IS-IS
IBGP
EBGP
Route-map
IPv4 prefix-list
PBR?Policy-based Routing?
ICMP redirect
ICMP unreachable
ECMP(SLB)
ECMP(DLB)
ECMP(RR)
ECMP Self-healing
IPv4 Multicast RoutingIGMPv1/v2/v3
IGMP-Proxy
IGMP SSM Mapping
PIM-SM
PIM-SSM
PIM-DM
IPv6 Forwarding
IPv6 Basic ProtocolICMPv6
NDP
PMTU
IPv6 Unicast routingIPv6 Static Route
RIPng
OSPFv3
IPv6 Multicast routingMLD v1/v2
MLD v1/v2 Snooping
MVR6
PIM-SM v6
IP TunnelIPv6 over IPv4 Tunnel
6to4 Tunnel
ISATAP Tunnel
IPv6 ServiceDHCPv6 Relay
DHCPv6 Snooping
IPv6 Prefix-list
QOS
Traffic classificationTraffic classification based on COS/DSCP (simple classification)
Traffic classification based on ACL (complex classification)
Traffic classification based on inner header of the tunnel packets
Traffic behaviorsQueue scheduling
Remark the priority fields (COS/DSCP) of the packet based on Table Map
Flow redirection
Flow mirror
Traffic policingTraffic policing based on direction(in/out) of Port
Traffic policing based on direction(in/out) of VLAN
Traffic policing based on direction(in/out) of flow
Traffic policing based on direction(in/out) of aggregated flow
Traffic shapingQueue based traffic shaping
Port based traffic shaping
Congestion managementSP?Strict Priority?scheduling
WDRR?Weighted Deficit Round Robin?scheduling
SP + WDRR mixed scheduling
Congestion avoidanceTD?Tail Drop?
WRED?Weighted Random Early Detection?
Traffic statisticsPacket counts and bytes statistics based on traffic classification
Packet counts and bytes statistics based on the color after traffic policing
Forwarded and discarded packet counts and bytes statistics
ECN (Explicit congestion notification)ECN tags based on Tail Drop
ECN tags based on WRED
DEVICE RELIABILITY FEATURES
BFDBFD for Static route
BFD for OSPFv2
BFD for VRRP/Track
VRRPVRRP
Track for VRRP
Smart Linkmulti-instance
load balance
Multi-Link
Monitor-link
MLAGMLAG basic
MLAG orphan Port
DATA CENTER
VARPVARP?Virtual-ARP?
VARP subnet
TunnelManual configure VxLAN tunnel
VxLAN distributed gateway
VxLAN active-active access
Interconnect across Datacenters based on VxLAN
L2 Protocol packet passthrough
Edit DSCP in VxLan outer header
BGP EVPN
GRE Tunnel
NVGRE Tunnel
GENEVE Tunnel
DCBLLDP support DCBX TLV
PFC
SYSTEM SECURITY
AAAAuthentication
Authorization
Accounting
Dot1xPort based dot1x
MAC based dot1x
Guest VLAN
ACLMAC/IP ACL
Basic Mode ACL
Port-group ACL
VLAN-group ACL
IPv6 ACL
ACL UDF
Time Range
ARP InspectionARP Inspection
IP Source GuardIP Source Guard
Port SecurityLimitation on MAC address learning on interface
VLAN SecurityLimitation on MAC address learning on VLAN
COPPBlack list/wihte list
Rate limit
CPU Traffic LimitCPU Traffic Limit
Prevent DDOS attackPrevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood)
Login filterTelnet/SSH ACL filtering
Telnet/SSH IPv6 ACL filtering
MAC SecurityMacSec (802.1AE)
Link-Flapping detectionLink-Flapping detection
CONFIGURATION AND MAINTENANCE
Terminal ServicesConfigurations through CLI (Command Line Interface)
Banner configuration
Help information in English
Vty Terminal service
Configuration ManagementInband management interface and configuration
Outband management interface and configuration
privileged user priority and privileged commands
Network management based on SNMPv1/v2c/v3
Public and private MIB
Public and private Trap
Configuration and management based on WEB UI
Configuration and management based on RPC-API
SmartConfig?Automatically configuration when system start?
Configuration and management based on OVSDB
change the system specifications by choose different STM Profiles
Feature configuration based on License
Restore factory default configuration
File SystemFile system (support directory and file management)
Upload and download files through FTP or TFTP
Upload and download files through Xmodem
Debugging And Maintenanceper-module Debug features
ICMP Debug
Software process monitor: BHM?Beat Heart Monitor?
Hardware Watch Dog
CPU usage display and alarm
Memory usage display and alarm
Device temperature?PSU?FAN?status display and alarm
User operation logs
Management of logs, alarms, and debugging information
VCT?Virtual Cable Test?
Detailed Diagnostic-information collection
Manual reboot
Schedule Reboot
Reboot Information logging
Ping
IPv6 Ping
Traceroute
Port mirror
Flow mirror
Remote mirror
Multi-destination mirror?m:n?
Use CPU as mirror source
Use CPU as mirror destination and analyze packet
ERSPAN
To CPU/From CPU packets statistics
layer2 network connectivity detection - L2Ping (MAC Ping/Trace)
UDLD?Unidirectional Link Detection?
unidirectional forwarding of the fiber
port loopback
hardware loopback?internal/external?
Time configuration
Time zone
Version Upgradeupgrade with the local image file
upgrade with the remote TFTP server
Online upgrade Uboot

Related Products

C3500-24G+UL

COMMANDO Marshall C3500 24GE, FRU PWR 75W, Modular Uplinks, Managed Core Switch

Read More
C3500-48G+UL

COMMANDO Marshall C3500 48GE, FRU PWR 75W, Modular Uplinks, Managed Core Switch

Read More
C3500-24GP+UL

COMMANDO Marshall C3500 24GE PoE+, FRU PWR 500W, Modular Uplinks, Managed Core Switch

Read More
C3500-48GP+UL

COMMANDO Marshall C3500 48GE PoE+, FRU PWR 800W, Modular Uplinks, Managed Core Switch

Read More
C3500-24SFP+UL

COMMANDO Marshall C3500 24SFP, FRU PWR 75W, Modular Uplinks, Managed Core Switch

Read More
C3500-48SFP+UL

COMMANDO Marshall C3500 48SFP, FRU PWR 75W, Modular Uplinks, Managed Core Switch

Read More
C3500-24X+2Q

COMMANDO Marshall C3500 24x 10G SFP+, 2x 40G QSFP+ Uplinks, FRU PWR 75W, Managed Core Fiber Switch

Read More
C3500-24X+2C

COMMANDO Marshall C3500 24x 10G SFP+, 2x 100G QSFP28 Uplinks, FRU PWR 75W, Managed Core Fiber Switch

Read More
C3500-12X

COMMANDO Marshall C3500 12x 10G SFP+, FRU PWR 75W, Core Fiber Switch

Read More
C3500-24X

COMMANDO Marshall C3500 24x 10G SFP+, FRU PWR 75W, Core Fiber Switch

Read More
C3500-44X

COMMANDO Marshall C3500 44x 10G SFP+, FRU PWR 75W, Core Fiber Switch

Read More

Awards

Certificate

Download Mobile App

Whether you are browsing the web or on the go, you can easily add content to your queue
with our mobile apps. Save time and get more done by working from anywhere.

COMMANDO Networks Telegram
