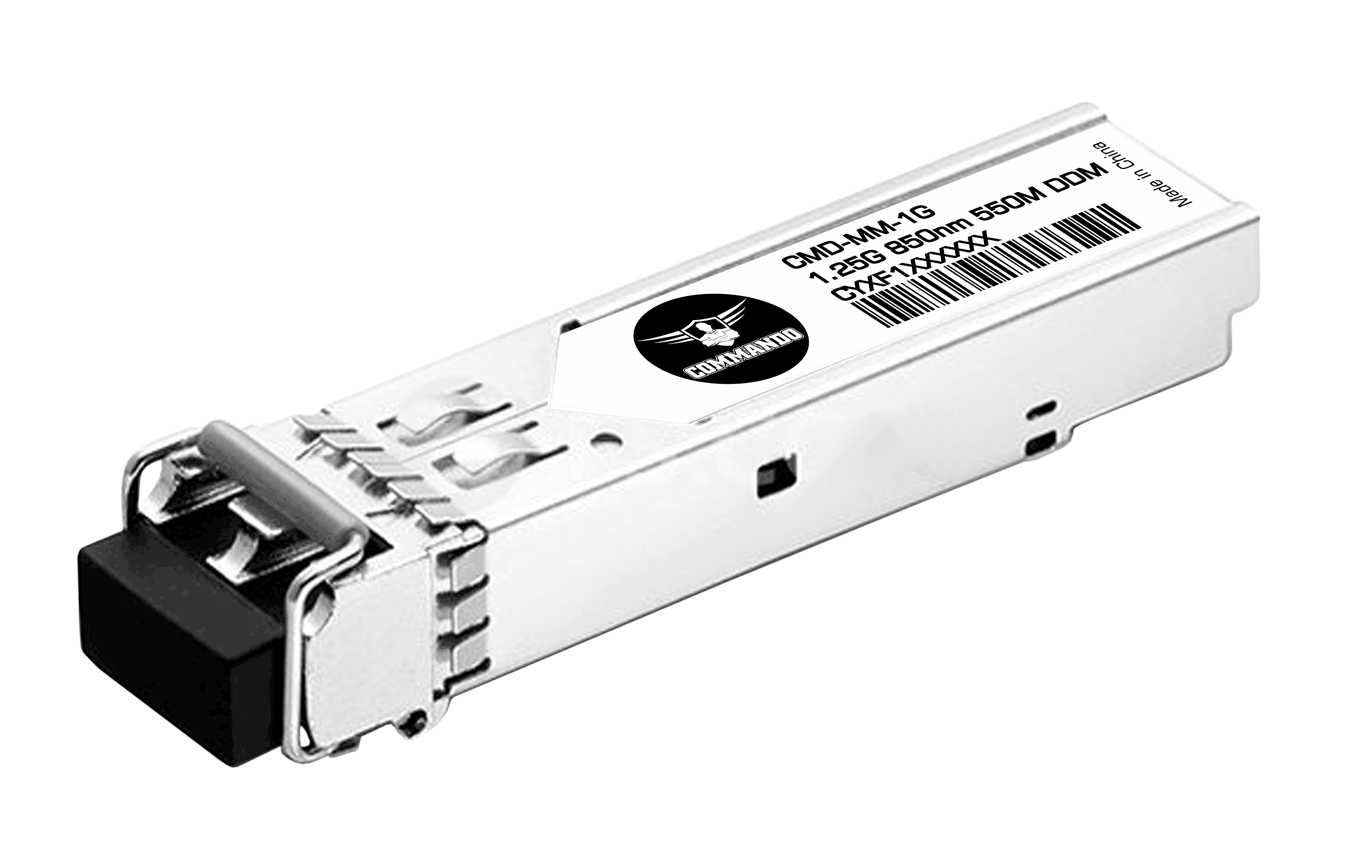

CMD-MM-1G

COMMANDO LightningFIBER GBIC-SX, SFP, 850nm, 550m, MMF, DDM, Compatible w/ GLC-SX-MMD

Click on image to expanded

CMD-MM-1G

COMMANDO LightningFIBER GBIC-SX, SFP, 850nm, 550m, MMF, DDM, Compatible w/ GLC-SX-MMD

Information

  • CMD-MM-1G SFP Transceiver Module
  • Cabling Type: GBIC-SX, MMF
  • Data Transfer Rate: 1000Mbps
  • Connective Media: LC duplex
  • Distance Support: 550m over OM2 MMF
  • Form Factor: SFP (Small Form Factor Pluggable) MSA & ROHS Compliant

Specification

Product Details
COMMANDO Part CodeCMD-SX-MMD
Form TypeSFP
Wavelength850nm
InterfaceLC duplex
Cable TypeMMF
TX Power:-9.5 ~ -3dBm
Industrial Temperature Range0 to 70°C (32 to 158°F)
Max Data Rate1000Mbps
Max Cable Distance550m
Optical ComponentsVCSEL 850nm
DOM SupportYes
Receiver Sensitivity< -17dBm
HTS-Harmonized Code8517706000
