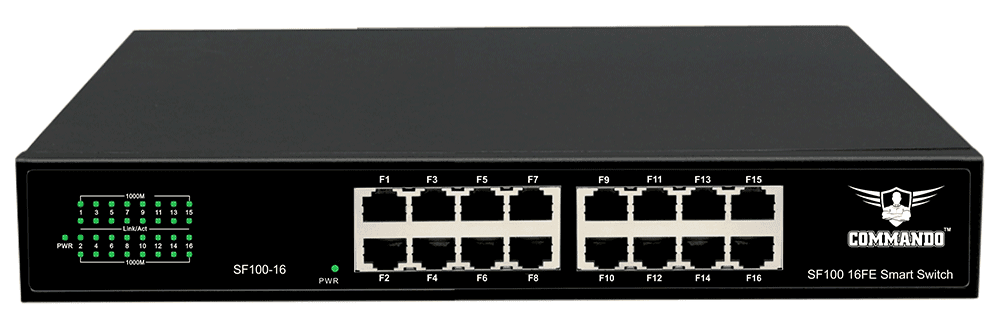

SF100-16

COMMANDO SF100 16FE, Unmanaged Switch

Click on image to expanded

SF100-16

COMMANDO SF100 16FE, Unmanaged Switch

Information

SF100-16 Desktop Fast Ethernet switch, mainly for the Ethernet access layer or aggregation layer, Plug and play, self-adaption, support standard, port isolation 2 working modes.


Main Features
  • 16 port fast Rj45 network
  • Support camera, wireless AP, and IP phone etc.
  • Flood Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX.
  • Support port lightning protection.
  • Store-and-forward.
  • All ports support wire speed switch, jumbo frame transmission.
  • Plug and play, self-adaption.
  • Panel lights can monitor operative mode and malfunction analysis.

Specification

Hardware
ModelSF100-16
Port16 10/100M Rj45
Exchange MechanismStore-and-forward
Bandwidth14.8G
MAC4K
Working Temperature0°C~40°C
Storage temperature-40°C~70°C
Working Humidity 10%~90% RH non-condensing
Storage Humidity5%~90% RH non-condensing
Power inputDC 5-15V
Standards ProtocolsIEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x
IEEE 802.1q
System modelDefault standard,Port isolation
SpeedEthernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Network Media10Base-T: Pair 2 Category 3(Cat3)
100Base-TX: Pair 2 Category 5(Cat5/5e)
