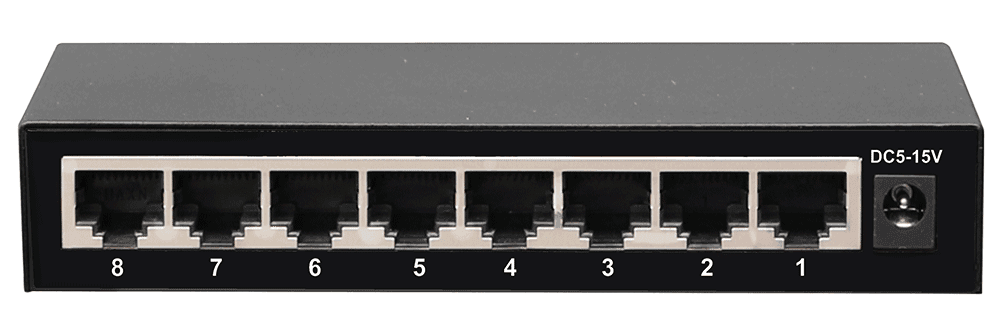

SF100-8

SF100-8

COMMANDO SF100, 8 10/100M, Auto MDI/MDIX, Store-and-Forward, PnP, Fast Ethernet, Smart Switch

SF100-8 Fast Ethernet switch, mainly for the Ethernet access layer or aggregation layer, Plug and play, self-adaption, support standard, port isolation 2 working modes.


Main Features
  • 8 port fast Rj45 network
  • Support camera, wireless AP, and IP phone etc.
  • Flood Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX.
  • Support port lightning protection.
  • Store-and-forward.
  • All ports support wire speed switch, jumbo frame transmission.
  • Plug and play, self-adaption.
  • Panel
Hardware
Model SF100-8
Port 8 10/100M Ports
Exchange Mechanism Store-and-forward
Bandwidth 1.6G
MAC 2K
Environmental
Working Temperature：0℃～40℃
Storage temperature ：-40℃～70℃
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing
Power input DC 5~15V
Standards Protocols
IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x
IEEE 802.1q
System model Default standard,Port isolation
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Network Media
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
Product specifications
Product Size：138mm*78mm*25mm（L*W*H）
package Size：215mm*175mm*45mm(L*W*H)
Weight:0.5kg
