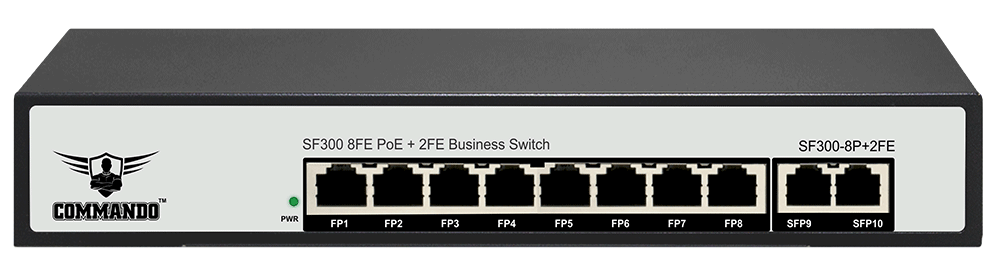

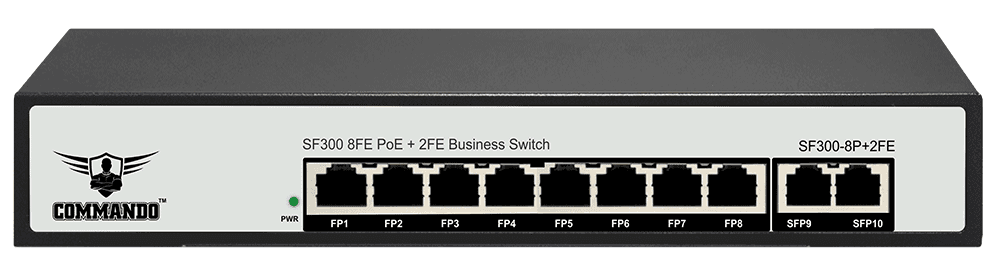

SF300-8P+2FE

COMMANDO SF300 8FE + 2FE Uplinks, 150W PoE+, 30W Max, Smart Unmanaged Switch

Product Highlights : View Details

SF300-8P+2FE with 8 FE PoE Ports, 2 FE RJ45 Uplink Ports Smart Fast Ethernet PoE Desktop Switch, support 802.3at/af compliant PoE, 30W Max per Port POE.

Excellent PoE power supply performance

PoE features comply with IEEE, 802.3af and IEEE 802.3at standards, automatically detect and identify equipment in accordance with IEEE, 802.3af and IEEE 802.3at standards, and supply power to them. Intelligent power supply management, flexible power supply scheduling, conditions restart, conditional shutdown, adapt to complex office environment applications;
POE police function, real-time automatic device on-line detection function, when the lower equipment crashes, automatically restart the port power supply, to ensure rapid restoration of the network, without manual operation.

POE characteristics:

1:Automatic IEEE802.3af/at
2:Dynamic power to ensure stable and reliable output power
3:Anti collinear interference to solve the problem of grounding installation
4:Queue up to effectively reduce current impact
5:Reliable short circuit protection, safe and reliable
6:Overpressure under voltage protection

Hardware
Model SF300-8P+2FE
Port
8 10/100M RJ45 Port
2 10/100M RJ45 Port
Exchange Mechanism Store-and-forward
Bandwidth 2.0G
MAC 1K
Working Temperature 10℃~55℃
Storage temperature  -40℃~70℃
Working Humidity  10%~90% RH non-condensing
Storage Humidity 5%~90% RH non-condensing
POE IEEE802.3af/at,  Port PoE MAX 30W
System model Default standard/VLAN isolation/Super 250meters
Power input AC 100-240V 50/60Hz 1.5A MAX90W
Standards Protocols
IEEE 802.3
IEEE 802.3u 100BASE-TX
IEEE 802.3af/at
IEEE 802.3x
IEEE 802.1q
System model Default standard;VLAN isolation
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤250m)
Network Media 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
Product specifications
Product Size:210mm*130mm*32mm(L*W*H)
package Size:300mm*175mm*100mm(L*W*H)
Weight:0.9kg
