C2000 L2+ Series Switches

C2000 Series Switches

COMMANDO Soldier C2000 Series Managed Switches are L2+ Access layer Switches with SoldierOS. It offers advance software with feature-set inbuilt free for lifetime with zero recurring expenses with Dual AC+DC.

Data Sheet CLI Guide Configuration Guide Software Comparison Gallery YouTube

COMMANDO SOLDIER C2000 Series Managed Switches

COMMANDO Soldier C2000 Series Managed Switches are L2+ Access layer switches with It has Intelligent PoE/ PoE+ with Automated Scheduling and Perpetual POE/PoE+. It is a suitably best choice switch for Enterprise, Telecom, ISP, Industrial, Campus, Retail and Hospitality, Security and Surveillance, IoT, Cloud, Metro, SMBs Networks. Convenient Deployment as dual power design allows customers to use either AC or DC power sources according to need of deployment.

COMMANDO Soldier C2000 Switches come with Dual-image SoldierOS offering higher availability, redundancy and operational flexibility. These switches are built for quality, offer high and heavy-duty performance in most demanding networking environment.

COMMANDO Soldier C2000 Series Switches are engineered to deliver high-quality, high-performance and heavy-duty networking for the most demanding and complex networking environments, providing robust reliability, uninterrupted performance and operational assurance for businesses and enterprises.

COMMANDO Networks - 0 / 0

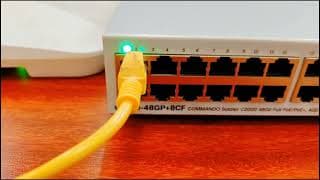

C2000-48GP+8CF -- COMMANDO C2000 48GE Full PoE/PoE+, 4GE/4SFP Combo Uplinks, 800W, Managed Switch

29 Apr 2024

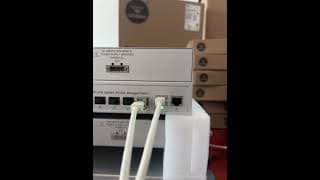

C2000-8SFP+4CF -- COMMANDO Soldier C2000 8SFP, 2GE+2SFP Uplinks, Fiber Managed Switch -- 8+4 SFP

16 Mar 2023

C2000-48GP+8CF -- COMMANDO Soldier C2000 48GE PoE+, 4GE/4SFP Combo Uplinks, 800W, Managed Switch

01 Feb 2023

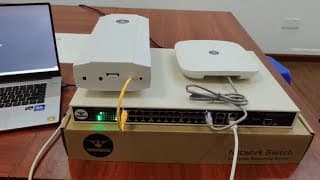

C2000-24GP+8CF -- COMMANDO Soldier C2000 24GE PoE+, 4GE/4SFP Combo Uplinks, 600W, Managed Switch

01 Feb 2023

Basic CLI Configuration Commands - COMMANDO Soldier C2000 E2000 IE2000 Series L2+ Managed Switches

30 Dec 2022

SoldierOS 2000 Web GUI Explained - COMMANDO Soldier C2000 / E2000 / IE2000 Series L2+ Managed Switch

30 Dec 2022

Software Features - Web GUI - COMMANDO Soldier C2000 / E2000 / IE2000 Series L2+ Switch - (brief) -3

22 Dec 2022

Software Features - Web GUI - COMMANDO Soldier C2000 / E2000 / IE2000 Series L2+ Switch - (brief) -2

22 Dec 2022

C2000 Series Software Highlight

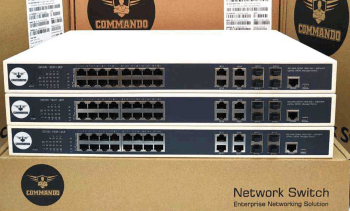

C2000-16GP+8CF

COMMANDO Soldier C2000 16GE Full PoE/PoE+, 4GE/4SFP Combo Uplinks, 290W, Managed Switch

• 16 x 10/100/1000M GigE PoE+ ports

• 4 x 10/100/1000M GigE Uplink slots

• 4 x 1G SFP Uplink slots

• 1 x RJ45 Console port

• 1 x USB Console port

• 16 x IEEE802.3af 15.4W PoE ports

• 8 x IEEE802.3at 30W PoE+ ports

• Power Budget: 290W

• Switching Capacity: 40 Gbps

• Thunder Protection: ±6 kV

• Power Supply: AC + DC

• AC: 100~240V 50/60Hz, DC: 12V and 52V

• SoldierOS L2+ Software Feature Set

• L2+ PoE+ Managed Switch

• 5 Year Extendable Warranty

https://www.commandonetworks.com/switches

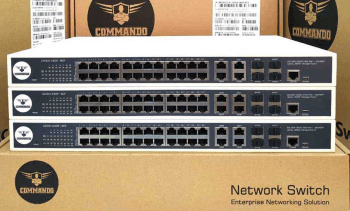

C2000-24GP+8CF

COMMANDO Soldier C2000 24GE Full PoE/PoE+, 4GE/4SFP Combo, 600W, AC+DC, Managed Switch

• 24 x 10/100/1000Mbps Ethernet PoE+ ports

• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Combo Uplink ports

• 1 x RJ45 Console port

• 1 x Mini USB Console port

• 24 x IEEE802.3af 15.4W PoE ports

• 18 x IEEE802.3at 30W PoE+ ports

• Switching Capacity: 56 Gbps

• Thunder Protection: ±6 KV

• Power: 600W

• 3 Temperature Control Fans

• Power Supply: Dual 1+1 Power Supplies (AC + DC)

• AC: 100~240V 50/60Hz, DC: 12V, 4.1A and 52V, 10.2A

• SoldierOS L2+ Software Feature Set

• L2+ GigE PoE+ Managed Switch

• 5 Year Extendable Warranty

https://www.commandonetworks.com/switches

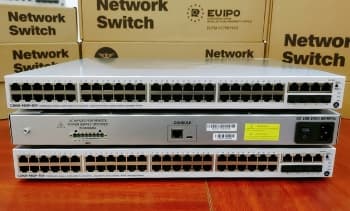

C2000-48GP+8CF

COMMANDO Soldier C2000 48GE Full PoE/PoE+, 4GE/4SFP Combo, 800W, AC+DC, Managed Switch

• 48 x 10/100/1000Mbps Ethernet PoE+ ports

• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Combo Uplink ports

• 1 x RJ45 Console port

• 1 x Mini USB Console port

• 1 x USB to Type C Console port (new version)

• 48 x IEEE802.3af 15.4W PoE ports

• 24 x IEEE802.3at 30W PoE+ ports

• Switching Capacity: 104 Gbps

• Thunder Protection: ±6 KV

• Power: 800W

• 4 Temperature Control Fans

• Power Supply: Dual 1+1 Power Supplies (AC + DC)

• AC: 100~240V 50/60Hz, DC: 12V, 6A and 52V, 14A

• AC: 100~240V 50/60Hz, DC: 48V, 16.67A (new version)

• SoldierOS L2+ Software Feature Set

• L2+ GigE PoE+ Managed Switch

• 5 Year Extendable Warranty

https://www.commandonetworks.com/switches

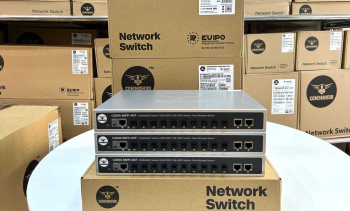

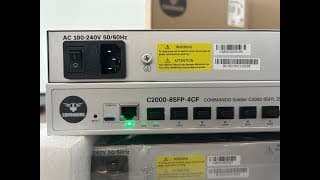

C2000-8SFP+4CF

COMMANDO Soldier C2000 8SFP, 2SFP+2GE Uplinks, AC+DC, Managed Switch

• 8 x 1G SFP ports

• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports

• 1 x RJ45 Console port

• 1 x Mini USB Console port

• Switching Capacity: 24 Gbps

• Thunder Protection: ±6 KV

• Power: 24W

• Power Supply: Dual 1+1 Power Supplies (AC + DC)

• AC: 100~240V 50/60Hz, DC: 12V, 2A

• SoldierOS L2+ Software Feature Set

• L2+ Fiber Managed Switch

• 5 Year Extendable Warranty

https://www.commandonetworks.com/switches

SOFTWARE HIGHLIGHTS (SoldierOS L2+)

Highlights:

• DHCP Server

• Intelligent PoE Scheduling

• Watchdog Function

• Dual Image

• Automated Traffic Control

• Sflow

• Traffic Segmentation

• MAC Notification

L3 Features:

• L3 Static/Default Route

• Gratuitous ARP

• IPv6

L2 Features:

• MAC Table 8K to 16K

• 802.3x Flow Control

• Back Pressure

• HOL Blocking Prevention

• Jumbo Frame

• ERPS

• Port Mirroring

• RSPAN

• Auto Loopback Detection and Prevention

• L2 Protocol Tunneling

• Link Aggregation Static / 802.3ad LACP

• STP/RSTP/MSTP

• IGMP Snooping v1/v2/v3

• Multicast VLANs

• MLD v1/v2 Snooping

• PIM Snooping

• VLAN - IP Subnet / Protocol / Voice / Surveillance / MAC based / Q in Q / Guest

• IEEE802.1Q with 4K VLAN groups and 4K VIDs

• GARP/GVRP

• Auto-negotiation for Port speed, PoE Power and Duplex mode with Flow Control

• VLAN Trunking

• Traffic Segmentation

• IGMP Querier / Snooping v1, v2, v3 / Throttling / Filtering / Immediate Leave

• MVR

• Mirror - Port Based (One to One, Many to One) / VLAN based / MAC based

• Ethernet Ring Protection Switching

QoS Features:

• Queue Scheduling: SP, WRR, SP+WRR

• Traffic classification based on Port / IEEE 802.1p / DSCP

• Enhanced QoS (Shaping /Re-Marking)

• DiffServ

• Port based Egress / Igress Rate limiting

• Flow based Rate Limit

• Voice VLAN

• Surveillance VLAN

Security Features:

• IP-MAC-Port-VID Binding

• DoS Defend

• Dynamic ARP Inspection

• 802.1x Authentication

• RADIUS / TACACS+

• ACL L4 / L3 / L2 / ARP / Time

• Storm Control

• HTTPS / SSLv2 / v3 / TLSv1 Secure Web Access

• Secure Remote with SSH v1/V2

• MAC Authentication with Dynamic VLAN / Dynamic QoS / Authentication By-pass

• Web Authentication

• Port Security with Violation Action Trap and/or Shutdown

• AAA Model

• Local user database

• DHCP Snooping & Option 82

• ARP Inspection

• IP Source Guard

• IP Filter for Web, SNMP , TELNET

• Automatic Traffic Control (ATC) for Broadcast and Multicast

Management Features:

• User friendly Web GUI

• Feature rich and standard CLI

• SNMP v1/v2c/v3

• RMON (1, 2, 3, 9 Groups)

• DHCP Server / Client / Snooping / Option 82

• CPU Monitoring

• Cable Diagnostics

• Ping / Trace route

• SNTP

• System Log

• Login Banner

• CLI via Console port or Telnet/SSH

• SNMP v1, v2c, v3 with MAC Notification Trap

• Firmware Upgrade via TFTP/FTP/HTTP

• Configuration file Upload / Download via TFTP/FTP/HTTP

• BOOTP, DHCP Client

• SNTP

• LLDP (802.1ab) and LLDP-MED

• DNS

• Event/Error log / System log

• Remote Syslog

• SMTP Support for logs

• CPU and Memory Utilization Monitoring

• Ports Statistics and Chart

• Cable Diagnostic

• Scheduled Reload

• Reset to Factory Default

• Energy Efficient Ethernet IEEE 802.3az

https://www.commandonetworks.com/switches/C2000
