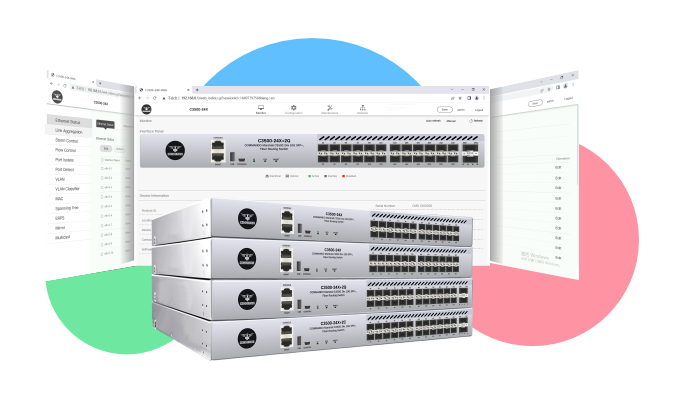

COMMANDO Switch Software comes with fully featured licenses in-built free for lifetime. Have a quick look at COMMANDO SoldierOS L2+ (C2000 and E2000 Series Switches), SoldierOS L3 (C3000 and E3000 Series Routing Switches) and MarshallOS L3+ (C3500 Series Core and Data Center Routing Switches).
COMMANDO Switch Software comes with fully featured licenses in-built free for lifetime. Have a quick look at COMMANDO SoldierOS L2+ (C2000 and E2000 Series Switches), SoldierOS L3 (C3000 and E3000 Series Routing Switches) and MarshallOS L3+ (C3500 Series Core and Data Center Routing Switches).
| Category | Subclass | Parameters | Features | SoldierOS L2+ (C2000/E2000 Series) | SoldierOS L3 (C3000/E3000 Series) | MarshallOS L3+ (C3500 Series) | Supports Stacking (C3500) |
| Ethernet basics | Ethernet | Port | Port type, duplex mode, auto-negotiation, adaptation | ✓ | ✓ | ✓ | ✓ |
| port speed | ✓ | ✓ | ✓ | ✓ | |||
| jumbo frame | ✓ | ✓ | ✓ | ✓ | |||
| Interruption tolerance mechanism | ✗ | ✗ | ✓ | ✓ | |||
| Port-xconnect | ✗ | ✗ | ✓ | ✗ | |||
| Layer 3 sub-interface | ✗ | ✗ | ✓ | ✗ | |||
| Flow control | Flow-control tx/rx | ✓ | ✓ | ✓ | ✗ | ||
| Storm control | Port-based storm-control | ✓ | ✓ | ✓ | ✓ | ||
| VLAN-based storm-control | ✓ | ✓ | ✓ | ✓ | |||
| Port blocking | Port-block (known/unknown unicast, known/unknown multicast, broadcast) | ✗ | ✗ | ✓ | ✗ | ||
| Port isolation | L2/L3/All port isolation | ✗ | ✗ | ✓ | ✗ | ||
| One-way isolation | ✗ | ✗ | ✓ | ✗ | |||
| Port bridge | Port bridge (supports same origin and same sink) | ✗ | ✗ | ✓ | ✗ | ||
| Layer 2 protocol message transparent transmission | L2 protocol tunnel (supports CFM/DOT1X/LLDP/SLOW-PROTO/STP) | ✓ | ✓ | ✓ | ✗ | ||
| Forwarding mode | Store-and-forward | ✓ | ✓ | ✓ | ✓ | ||
| Cut-through | ✗ | ✗ | ✓ | ✗ | |||
| VLAN | VLAN access mode | Access/Trunk | ✓ | ✓ | ✓ | ✓ | |
| Default VLAN | ✓ | ✓ | ✓ | ✓ | |||
| VLAN division | VLAN classification based on port, MAC, subnet, and protocol | ✓ | ✓ | ✓ | ✓ | ||
| QinQ | Basic QinQ | ✓ | ✓ | ✓ | ✓ | ||
| Flexible QinQ | ✓ | ✓ | ✓ | ✓ | |||
| VLAN mapping (1:1 VLAN mapping) | ✓ | ✓ | ✓ | ✓ | |||
| VLAN mapping (N:1 VLAN mapping) | ✗ | ✗ | ✓ | ✓ | |||
| VLAN statistics | VLAN statistics, support statistics on frame gaps | ✗ | ✗ | ✓ | ✗ | ||
| Private VLAN | Private VLAN | ✗ | ✗ | ✓ | ✗ | ||
| Voice VLAN | Voice VLAN | ✓ | ✓ | ✓ | ✗ | ||
| Guest VLAN | Guest VLAN | ✓ | ✓ | ✗ | ✗ | ||
| Surveillance VLAN | Surveillance VLAN | ✓ | ✓ | ✗ | ✗ | ||
| Protocol VLAN | Protocol VLAN | ✓ | ✓ | ✓ | ✓ | ||
| MAC | MAC address table | MAC address learning and aging | ✓ | ✓ | ✓ | ✓ | |
| Refresh FDB based on port and VLAN | ✓ | ✓ | ✓ | ✗ | |||
| Hardware learning | ✓ | ✓ | ✓ | ✓ | |||
| Static, dynamic FDB | ✓ | ✓ | ✓ | ✓ | |||
| Blackhole MAC (supports global and per-VLAN configuration) | ✓ | ✓ | ✓ | ✓ | |||
| MAC drift detection | MAC drift detection | ✗ | ✗ | ✓ | ✓ | ||
| LAG | Link aggregation | Static and dynamic link aggregation (Static-LAG & LACP) | ✓ | ✓ | ✓ | ✓ | |
| Static load balancing (SLB) | ✗ | ✗ | ✓ | ✓ | |||
| Dynamic Load Balancing (DLB) | ✗ | ✗ | ✓ | ✗ | |||
| Round robin load sharing (RR) | ✗ | ✗ | ✓ | ✗ | |||
| LAG self-healing | ✗ | ✗ | ✓ | ✗ | |||
| weighted link aggregation | ✗ | ✗ | ✓ | ✓ | |||
| Ethernet ring protection | xSTP | STP | spanning tree protocol | ✓ | ✓ | ✓ | ✓ |
| RSTP | Rapid Spanning Tree Protocol | ✓ | ✓ | ✓ | ✓ | ||
| MSTP | Multiple instance spanning tree protocol | ✓ | ✓ | ✓ | ✓ | ||
| Spanning tree protection function | BPDU filtering and protection | ✓ | ✓ | ✓ | ✓ | ||
| Root guard | ✓ | ✓ | ✓ | ✓ | |||
| Loop guard | ✓ | ✓ | ✓ | ✓ | |||
| Prevent TC-BPDU attacks | ✗ | ✗ | ✓ | ✓ | |||
| ERPS | ERPS | single ring | ✓ | ✓ | ✓ | ✗ | |
| intersecting rings | ✓ | ✓ | ✓ | ✗ | |||
| tangent ring | ✓ | ✓ | ✓ | ✗ | |||
| Compatible with RRPP | ✓ | ✓ | ✓ | ✗ | |||
| G.8031 | G.8031 | G.8031 Ethernet linear network protection | ✗ | ✓ | ✓ | ✗ | |
| G.8032 | G.8032 | Support G.8032 v1/v2 | ✗ | ✗ | ✓ | ✓ | |
| single ring | ✗ | ✗ | ✓ | ✓ | |||
| Sub-ring | ✗ | ✗ | ✓ | ✓ | |||
| polycyclic | ✗ | ✗ | ✓ | ✓ | |||
| Loop detection | Port loop detection | Supports multi-interface and aggregate port loopback-detection | ✗ | ✓ | ✓ | ✓ | |
| Layer 2 multicast | Layer 2 multicast | IGMP snooping | IGMP v1/v2/v3 snooping | ✓ | ✓ | ✓ | ✓ |
| leave quickly | ✗ | ✗ | ✓ | ✓ | |||
| Static IGMP snooping group | ✗ | ✗ | ✓ | ✓ | |||
| MVR | MVR (cross-VLAN multicast replication) | ✓ | ✓ | ✓ | ✗ | ||
| IPv4 forwarding | ARP | ARP | Static/Dynamic ARP | ✓ | ✓ | ✓ | ✓ |
| ARP entry aging | ✓ | ✓ | ✓ | ✓ | |||
| Free ARP | ✗ | ✗ | ✓ | ✓ | |||
| ARP proxy | Ordinary ARP-Proxy | ✗ | ✗ | ✓ | ✗ | ||
| Local ARP-Proxy | ✗ | ✗ | ✓ | ✗ | |||
| IPv4 unicast routing | IPv4 static routing | IPv4 static routing | ✓ | ✓ | ✓ | ✓ | |
| Black hole routing | ✗ | ✗ | ✓ | ✓ | |||
| Association between static routing and IP SLA | ✗ | ✗ | ✓ | ✓ | |||
| Virtual Routing and Forwarding (VRF) | ✗ | ✗ | ✓ | ✓ | |||
| IP unnumbered | ✗ | ✗ | ✓ | ✗ | |||
| uRPF detection | ✗ | ✗ | ✓ | ✓ | |||
| RIP | RIP v1/v2 | ✗ | ✓ | ✓ | ✗ | ||
| OSPFv2 | OSPF v2 | ✗ | ✓ | ✓ | ✓ | ||
| IS-IS | IS-IS | ✗ | ✗ | ✓ | ✗ | ||
| Segment-routing based on IS-IS protocol extension | ✗ | ✗ | ✓ | ✗ | |||
| BGP | IBGP | ✗ | ✗ | ✓ | ✗ | ||
| EBGP | ✗ | ✗ | ✓ | ✗ | |||
| Network segment listening | ✗ | ✗ | ✓ | ✗ | |||
| Graceful-Restart helper (Graceful restart GR helper) | ✗ | ✗ | ✓ | ✗ | |||
| Routing strategy | Route-map | ✗ | ✗ | ✓ | ✗ | ||
| IPv4 prefix-list | ✗ | ✗ | ✓ | ✗ | |||
| Policy routing | Policy Routing (PBR) | ✗ | ✗ | ✓ | ✓ | ||
| PBR supports ECMP | ✗ | ✗ | ✓ | ✗ | |||
| ICMP | ICMP redirect | ✗ | ✗ | ✓ | ✓ | ||
| ICMP unreachables | ✗ | ✗ | ✓ | ✓ | |||
| ECMP | ECMP (Static Load Balancing SLB) | ✗ | ✗ | ✓ | ✓ | ||
| ECMP (Dynamic Load Balancing DLB) | ✗ | ✗ | ✓ | ✓ | |||
| ECMP (Polling Load Sharing RR) | ✗ | ✗ | ✓ | ✓ | |||
| ECMP self-healing | ✗ | ✗ | ✓ | ✗ | |||
| Weighted ECMP | ✗ | ✗ | ✓ | ✓ | |||
| IPv4 multicast | IGMP | IGMP v1/v2/v3 | ✓ | ✓ | ✓ | ✓ | |
| IGMP-proxy | ✗ | ✗ | ✓ | ✓ | |||
| IGMP SSM mapping | ✗ | ✗ | ✓ | ✗ | |||
| PIM | PIM-SM | ✗ | ✗ | ✓ | ✓ | ||
| PIM-SSM | ✗ | ✗ | ✓ | ✗ | |||
| PIM-DM | ✗ | ✗ | ✓ | ✗ | |||
| IPv6 forwarding | IPv6 basic protocol | ICMPv6 | ICMPv6 | ✓ | ✓ | ✓ | ✗ |
| NDP | NDP | ✗ | ✗ | ✓ | ✗ | ||
| PMTU | PMTU | ✗ | ✗ | ✓ | ✗ | ||
| IPv6 unicast routing | IPv6 static routing | IPv6 static routing | ✓ | ✓ | ✓ | ✗ | |
| IPv6 blackhole routing | ✗ | ✗ | ✓ | ✗ | |||
| VRF | ✗ | ✗ | ✓ | ✗ | |||
| RIPng | RIPng | ✗ | ✗ | ✓ | ✗ | ||
| BGP4+ | BGP4+ | ✗ | ✗ | ✓ | ✗ | ||
| OSPFv3 | OSPF v3 | ✗ | ✗ | ✓ | ✗ | ||
| IS-IS | IS-IS | ✗ | ✗ | ✓ | ✗ | ||
| VRRP v3 | VRRP v3 | ✗ | ✗ | ✓ | ✗ | ||
| IPv6 multicast | MLD v1/v2 | MLD v1/v2 | ✓ | ✓ | ✓ | ✗ | |
| MLD v1/v2 snooping | MLD v1/v2 snooping | ✓ | ✓ | ✓ | ✗ | ||
| MVR6 | MVR6 | ✗ | ✗ | ✓ | ✗ | ||
| PIM-SM v6 | PIM-SM v6 | ✗ | ✗ | ✓ | ✗ | ||
| IP tunnel | IPv6 over IPv4 manual tunnel | IPv6 over IPv4 tunnel | ✗ | ✗ | ✓ | ✗ | |
| 6to4 tunnel | 6to4 tunnel | ✗ | ✗ | ✓ | ✗ | ||
| ISATAP tunnel | ISATAP tunnel | ✗ | ✗ | ✓ | ✗ | ||
| IPv6 business | DHCPv6 | DHCPv6 relay | ✓ | ✓ | ✓ | ✗ | |
| DHCPv6 snooping | ✗ | ✗ | ✓ | ✗ | |||
| IPv6 routing policy | IPv6 Prefix-list | ✗ | ✗ | ✓ | ✗ | ||
| Equipment reliability | BFD | BFD | BFD to detect IPv4 static routes | ✗ | ✗ | ✓ | ✗ |
| Detect BFD of OSPFv2 | ✗ | ✗ | ✓ | ✗ | |||
| Detecting IS-IS BFD | ✗ | ✗ | ✓ | ✗ | |||
| Detect BGP BFD | ✗ | ✗ | ✓ | ✗ | |||
| Detect BFD of VRRP/Track | ✗ | ✗ | ✓ | ✗ | |||
| S-BFD | ✗ | ✗ | ✓ | ✗ | |||
| VRRP | VRRP | VRRP | ✗ | ✓ | ✓ | ✓ | |
| Track for VRRP | ✗ | ✓ | ✓ | ✗ | |||
| Smart link | Smart link | multiple instances | ✗ | ✗ | ✓ | ✓ | |
| Load sharing | ✗ | ✗ | ✓ | ✓ | |||
| multiple links | ✗ | ✗ | ✓ | ✓ | |||
| Monitor-link | ✗ | ✗ | ✓ | ✓ | |||
| MLAG | MLAG | MLAG basic functions | ✗ | ✗ | ✓ | ✗ | |
| MLAG single arm function | ✗ | ✗ | ✓ | ✗ | |||
| MLAG ISSU | ✗ | ✗ | ✓ | ✗ | |||
| MLAG supports xSTP | ✗ | ✗ | ✓ | ✗ | |||
| MLAG supports Priority | ✗ | ✗ | ✓ | ✗ | |||
| MLAG supports dual master detection | ✗ | ✗ | ✓ | ✗ | |||
| Stack | Stack | Support layer 2 forwarding | ✗ | ✗ | ✓ | ✗ | |
| Support three-layer forwarding | ✗ | ✗ | ✓ | ✗ | |||
| Unified stack management | ✗ | ✗ | ✓ | ✓ | |||
| Stacked linear mode (two devices) | ✗ | ✗ | ✓ | ✗ | |||
| Stack member port load balancing function | ✗ | ✗ | ✓ | ✓ | |||
| Stack local priority forwarding | ✗ | ✗ | ✓ | ✓ | |||
| Stack Split (LACP MAD/Direct Connect MAD) | ✗ | ✗ | ✓ | ✗ | |||
| Stacked dual master detection mechanism | ✗ | ✗ | ✓ | ✗ | |||
| Splitting stack service ports | ✗ | ✗ | ✓ | ✗ | |||
| Stack upstream and downstream active/standby switchover | ✗ | ✗ | ✓ | ✗ | |||
| Stacking system physical address switching | ✗ | ✗ | ✓ | ✗ | |||
| Stacking system management port backup | ✗ | ✗ | ✓ | ✗ | |||
| Stacked file system access | ✗ | ✗ | ✓ | ✗ | |||
| Stack member device management | ✗ | ✗ | ✓ | ✗ | |||
| Stacked board interchange | ✗ | ✗ | ✓ | ✓ | |||
| Stacked slot description | ✗ | ✗ | ✓ | ✗ | |||
| Ethernet OAM | EFM | EFM (802.3ah) | autodiscover | ✗ | ✗ | ✓ | ✗ |
| Link failure detection | ✗ | ✗ | ✓ | ✗ | |||
| Link fault handling | ✗ | ✗ | ✓ | ✗ | |||
| remote loopback | ✗ | ✗ | ✓ | ✗ | |||
| CFM | CFM (802.1ag) | Hardware-level CCM detection | ✗ | ✗ | ✓ | ✗ | |
| Linktrace | ✗ | ✗ | ✓ | ✗ | |||
| Loopback | ✗ | ✗ | ✓ | ✗ | |||
| Y.1731 | Y.1731 | Delay and jitter measurements | ✗ | ✗ | ✓ | ✗ | |
| periodic dm detection | ✗ | ✗ | ✓ | ✗ | |||
| QoS features | QoS | Traffic classification | Simple traffic classification based on packet priority fields (COS, DSCP) | ✓ | ✓ | ✓ | ✓ |
| Perform complex traffic classification based on ACL matching packets | ✗ | ✗ | ✓ | ✓ | |||
| Use inner layer information of tunnel packets for traffic classification | ✗ | ✗ | ✓ | ✓ | |||
| Flow action | Let the classified packets enter the corresponding queue | ✗ | ✗ | ✓ | ✓ | ||
| Use ACL to directly mark the priority field of the packet (COS, DSCP) | ✗ | ✗ | ✓ | ✓ | |||
| Use Table map to re-mark packet priority fields (COS, DSCP) | ✓ | ✓ | ✓ | ✓ | |||
| stream redirection | ✗ | ✗ | ✓ | ✓ | |||
| Stream mirror | ✗ | ✗ | ✓ | ✓ | |||
| Traffic policing | Traffic monitoring based on interface in/🎧 direction | ✗ | ✗ | ✓ | ✓ | ||
| Traffic monitoring based on VLAN in/🎧 direction | ✗ | ✗ | ✓ | ✗ | |||
| Flow-based inbound/🎧direction traffic monitoring | ✗ | ✗ | ✓ | ✓ | |||
| Inbound/🎧direction traffic monitoring based on aggregate flow | ✗ | ✗ | ✓ | ✓ | |||
| Traffic shaping | Queue-based traffic shaping | ✗ | ✗ | ✓ | ✓ | ||
| Port-based traffic shaping | ✗ | ✗ | ✓ | ✓ | |||
| Congestion management | SP (strict priority) scheduling | ✓ | ✓ | ✓ | ✓ | ||
| WDRR (Weighted Deficit Round Robin) Scheduling | ✓ | ✓ | ✓ | ✓ | |||
| SP+WDRR hybrid scheduling | ✓ | ✓ | ✓ | ✓ | |||
| Congestion avoidance | Tail Drop (TD) | ✗ | ✗ | ✓ | ✓ | ||
| Weighted Random Early Drop (WRED) | ✗ | ✗ | ✓ | ✓ | |||
| Traffic Statistics | Statistics on the number of packets and bytes for packets that comply with traffic classification rules | ✗ | ✗ | ✓ | ✓ | ||
| After traffic monitoring, count the number of packets and bytes by color. | ✗ | ✗ | ✓ | ✓ | |||
| Statistics on the number of packets and bytes forwarded and discarded by the queue | ✗ | ✗ | ✓ | ✓ | |||
| ECN (Explicit Congestion Notification) | ECN tag based on tail drop | ✗ | ✗ | ✓ | ✓ | ||
| WRED-based ECN tagging | ✗ | ✗ | ✓ | ✓ | |||
| Shape rate based ECN marking | ✗ | ✗ | ✓ | ✓ | |||
| Network virtualization | VARP | Virtual gateway | VARP (Virtual-ARP) | ✗ | ✗ | ✓ | ✗ |
| Support IPv4 | ✗ | ✗ | ✓ | ✗ | |||
| Support IPv6 | ✗ | ✗ | ✓ | ✗ | |||
| VARP supports subnet | ✗ | ✗ | ✓ | ✗ | |||
| Tunnel | VxLAN | Manually configure a VxLAN tunnel | ✗ | ✗ | ✓ | ✗ | |
| VxLAN distributed gateway | ✗ | ✗ | ✓ | ✗ | |||
| Support VxLAN dual-active access | ✗ | ✗ | ✓ | ✗ | |||
| VxLAN implements Overlay network | ✗ | ✗ | ✓ | ✗ | |||
| VxLAN transparently transmits L2 protocol messages | ✗ | ✗ | ✓ | ✗ | |||
| Supports modifying VxLAN outer header DSCP | ✗ | ✗ | ✓ | ✗ | |||
| Supports modifying VxLAN inner header Ethertype | ✗ | ✗ | ✓ | ✗ | |||
| BGP EVPN (IPv4 only) | ✗ | ✗ | ✓ | ✗ | |||
| Supports overlay horizontal splitting and separate control on different VNIs | ✗ | ✗ | ✓ | ✗ | |||
| Support IPv4 | ✗ | ✗ | ✓ | ✗ | |||
| Support IPv6 | ✗ | ✗ | ✓ | ✗ | |||
| GRE tunnel | GRE tunnel | ✗ | ✗ | ✓ | ✗ | ||
| NVGRE Tunnel | NVGRE Tunnel | ✗ | ✗ | ✓ | ✗ | ||
| GENEVE tunnel | GENEVE tunnel | ✗ | ✗ | ✓ | ✗ | ||
| Network convergence | Intelligent lossless network | DCBX | LLDP supports DCBX TLV | ✗ | ✗ | ✓ | ✗ |
| PFC | Priority-based flow control | ✗ | ✗ | ✓ | ✗ | ||
| Metropolitan area network | IPRAN | LDP | LDP | ✗ | ✗ | ✓ | ✗ |
| MPLS forwarding | ✗ | ✗ | ✓ | ✗ | |||
| VPWS | VPWS | ✗ | ✗ | ✓ | ✗ | ||
| VPLS | VPLS | ✗ | ✗ | ✓ | ✗ | ||
| MPLS OAM | MPLS OAM | ✗ | ✗ | ✓ | ✗ | ||
| MPLS Statistics | MPLS Statistics | ✗ | ✗ | ✓ | ✗ | ||
| L2VPN | L2VPN | ✗ | ✗ | ✓ | ✗ | ||
| L3VPN | L3VPN | ✗ | ✗ | ✓ | ✗ | ||
| ACL | MPLS ACL | ✗ | ✗ | ✓ | ✗ | ||
| QoS | MPLS QoS | ✗ | ✗ | ✓ | ✗ | ||
| SR | MPLS-based segment-routing | ✗ | ✗ | ✓ | ✗ | ||
| Security and management | System security | SSH | SSH v1/v2 | ✓ | ✓ | ✓ | ✓ |
| RSA Key generation | ✗ | ✗ | ✓ | ✗ | |||
| OpenVPN | Integrated OpenVPN functionality | ✗ | ✗ | ✓ | ✗ | ||
| RADIUS | RADIUS | ✓ | ✓ | ✓ | ✗ | ||
| TACACS+ | TACACS+ | ✓ | ✓ | ✓ | ✗ | ||
| AAA | Authentication | ✓ | ✓ | ✓ | ✗ | ||
| Authorization | ✓ | ✓ | ✓ | ✗ | |||
| Accounting | ✓ | ✓ | ✓ | ✗ | |||
| Dot1x | Port-based Dot1x authentication | ✓ | ✓ | ✓ | ✗ | ||
| MAC based Dot1x authentication | ✓ | ✓ | ✓ | ✗ | |||
| Dot1x access billing | ✗ | ✗ | ✓ | ✗ | |||
| Dot1x keep alive | ✗ | ✗ | ✓ | ✗ | |||
| Dot1x supports Guest VLAN delivery | ✗ | ✗ | ✓ | ✗ | |||
| relay mode | ✗ | ✗ | ✓ | ✗ | |||
| ACL (Access Control List) | MAC/IP ACL | ✓ | ✓ | ✓ | ✓ | ||
| Basic Mode ACL | ✓ | ✓ | ✓ | ✓ | |||
| Port-group ACL | ✓ | ✓ | ✓ | ✓ | |||
| VLAN-group ACL | ✓ | ✓ | ✓ | ✓ | |||
| IPv6 ACL | ✓ | ✓ | ✓ | ||||
| ACL UDF | ✗ | ✗ | ✓ | ✓ | |||
| Global ACL | ✓ | ✓ | ✓ | ||||
| ACL effective time period | ✓ | ✓ | ✓ | ✓ | |||
| ARP protection | ARP inspection | ✓ | ✓ | ✓ | ✗ | ||
| ARP CPU protection function | ✗ | ✗ | ✓ | ✗ | |||
| DHCP protection | DHCP CPU protection function | ✗ | ✗ | ✓ | ✗ | ||
| IP source guard | IP source guard | ✓ | ✓ | ✓ | ✓ | ||
| IPv6 source guard | ✗ | ✗ | ✓ | ✗ | |||
| Port security | Port-based MAC number limit, illegal MAC learning defense | ✓ | ✓ | ✓ | ✗ | ||
| VLAN security | VLAN-based MAC number limit | ✗ | ✗ | ✓ | ✗ | ||
| Control Plane Policy (CoPP) | Black and white list | ✗ | ✗ | ✓ | ✓ | ||
| speed limit | ✗ | ✗ | ✓ | ✓ | |||
| CPU traffic limit | CPU traffic limit | ✗ | ✗ | ✓ | ✓ | ||
| Anti-DDoS attack | Anti-DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood) | ✓ | ✓ | ✓ | ✗ | ||
| Login access filtering | ACL filters Telnet/SSH login access | ✓ | ✓ | ✓ | ✓ | ||
| IPv6 ACL filters Telnet/SSH login access | ✗ | ✗ | ✓ | ✗ | |||
| User login lock | ✗ | ✗ | ✓ | ✓ | |||
| Link flapping detection | Link flapping detection | ✗ | ✗ | ✓ | ✓ | ||
| Network management | DHCP | DHCP server | ✓ | ✓ | ✓ | ✗ | |
| DHCP relay | ✓ | ✓ | ✓ | ✓ | |||
| DHCP snooping | ✓ | ✓ | ✓ | ✓ | |||
| DHCP client | ✓ | ✓ | ✓ | ✗ | |||
| DHCP option 82 | ✓ | ✓ | ✓ | ✓ | |||
| DHCP option 252 | ✗ | ✗ | ✓ | ✗ | |||
| RMON | RMON | ✓ | ✓ | ✓ | ✗ | ||
| sFlow | sFlow v4/v5 | ✗ | ✗ | ✓ | ✗ | ||
| IP SLA | Support IPv4 | ✗ | ✗ | ✓ | ✓ | ||
| Support IPv6 | ✗ | ✗ | ✓ | ✗ | |||
| SupportTrack | ✗ | ✗ | ✓ | ✓ | |||
| IPFIX | IPFIX | ✗ | ✗ | ✓ | ✗ | ||
| Latency/Buffer monitor | Latency monitor | ✗ | ✗ | ✓ | ✗ | ||
| Buffer monitor | ✗ | ✗ | ✓ | ✗ | |||
| EFD | Elephant flow detection | ✗ | ✗ | ✓ | ✗ | ||
| NTP | Network Time Protocol (NTP) | ✓ | ✓ | ✓ | ✓ | ||
| PTP (IEEE 1588 Precision Time Protocol) | Transparent Clock (TC) | ✗ | ✗ | ✓ | ✓ | ||
| Errdisable | Errdisable detection and recovery | ✓ | ✓ | ✓ | ✓ | ||
| DNS | Static DNS Client | ✓ | ✓ | ✓ | ✗ | ||
| LLDP | LLDP | ✓ | ✓ | ✓ | ✓ | ||
| Configuration and maintenance | Terminal service | Command Line | Command line configuration | ✓ | ✓ | ✓ | ✓ |
| Tips and help | Banner settings | ✓ | ✓ | ✓ | ✓ | ||
| Tips and help information in English | ✓ | ✓ | ✓ | ✓ | |||
| Terminal service | Vty terminal service | ✓ | ✓ | ✓ | ✓ | ||
| Console Terminal Services | ✓ | ✓ | ✓ | ✓ | |||
| Configuration management | Management port | In-band port management and configuration | ✓ | ✓ | ✓ | ✓ | |
| External port management and configuration | ✗ | ✗ | ✓ | ✓ | |||
| Supports IPv4 addresses | ✓ | ✓ | ✓ | ✓ | |||
| Supports IPv6 addresses | ✓ | ✓ | ✓ | ✗ | |||
| Support Telnet | ✓ | ✓ | ✓ | ✓ | |||
| Support SSH | ✓ | ✓ | ✓ | ✓ | |||
| User rights management | Hierarchical user rights management and hierarchical commands | ✓ | ✓ | ✓ | ✓ | ||
| SNMP | Network management configuration based on SNMP protocol (v1/v2c/v3) | ✓ | ✓ | ✓ | ✗ | ||
| Public and private MIBs for system management | ✓ | ✓ | ✓ | ✗ | |||
| System-managed public and private traps | ✗ | ✗ | ✓ | ✗ | |||
| Support group attribute encryption | ✗ | ✗ | ✓ | ✗ | |||
| Support IPv6 access to SNMPv2 | ✗ | ✗ | ✓ | ✗ | |||
| Support modifying source port | ✗ | ✗ | ✓ | ✗ | |||
| WEB | Configuration and management based on WEB page | ✓ | ✓ | ✓ | ✗ | ||
| Support WEB access control | ✓ | ✓ | ✓ | ✗ | |||
| Supports configuring the minimum TLS version | ✗ | ✗ | ✓ | ✗ | |||
| WEB supports specified certificates | ✗ | ✗ | ✓ | ✗ | |||
| RPC-API | Based on RPC-API configuration | ✗ | ✗ | ✓ | ✗ | ||
| Netconf | Netconf | ✗ | ✗ | ✓ | ✗ | ||
| Smart config | Smart config (automatically configured during system initialization) | ✗ | ✗ | ✓ | ✗ | ||
| OVSDB | Configuration management based on OVSDB | ✗ | ✗ | ✓ | ✗ | ||
| Switch system specifications | Switch the whole system specifications through STM profile | ✗ | ✗ | ✓ | ✓ | ||
| License control | Control features through license | ✗ | ✗ | ✓ | ✓ | ||
| Netconf | Netconf | ✗ | ✗ | ✓ | ✓ | ||
| One-click recovery | Restore 🎧factory default configuration with one click | ✓ | ✓ | ✓ | ✓ | ||
| File system | File management | File system, supporting directory and file management | ✗ | ✗ | ✓ | ✓ | |
| Upload Download | Upload and download files via FTP and TFTP | ✓ | ✓ | ✓ | ✓ | ||
| Support FTP server | ✓ | ✓ | ✓ | ✓ | |||
| Upload and download files via SCP | ✗ | ✗ | ✓ | ✓ | |||
| Xmodem mode file transfer | ✗ | ✗ | ✓ | ✓ | |||
| Diagnosis and maintenance | Debug | Module-based Debug function | ✗ | ✗ | ✓ | ✓ | |
| ICMP debug function | ✗ | ✗ | ✓ | ✓ | |||
| BHM | Software-level process monitoring: heartbeat detection | ✗ | ✗ | ✓ | ✓ | ||
| HardwareWatch dog | ✗ | ✗ | ✓ | ✓ | |||
| VCT | Virtual cable detection function | ✗ | ✗ | ✓ | ✓ | ||
| System diagnostic information | Detailed debug diagnostic information collection | ✗ | ✗ | ✓ | ✓ | ||
| Restart | manual restart | ✓ | ✓ | ✓ | ✓ | ||
| Scheduled restart | ✗ | ✗ | ✓ | ✓ | |||
| System restart reason record | ✗ | ✗ | ✓ | ✓ | |||
| Network diagnostics | Ping | ✓ | ✓ | ✓ | ✓ | ||
| IPv6 Ping | ✓ | ✓ | ✓ | ✗ | |||
| Traceroute | ✓ | ✓ | ✓ | ✓ | |||
| Logs and alerts | Support CPU usage display | ✓ | ✓ | ✓ | ✓ | ||
| Support bandwidth usage display | ✓ | ✓ | ✓ | ✗ | |||
| Support memory usage display and alarm | ✓ | ✓ | ✓ | ✓ | |||
| Support CPU/memory history display | ✗ | ✗ | ✓ | ✗ | |||
| Supports device temperature, power supply, fan and other status display and alarms | ✗ | ✗ | ✓ | ✓ | |||
| Support user operation log | ✗ | ✗ | ✓ | ✓ | |||
| Support log, alarm, debugging information management | ✓ | ✓ | ✓ | ✓ | |||
| Support interface bandwidth usage alarm | ✗ | ✗ | ✓ | ✗ | |||
| Log server that supports IPv4 addresses | ✗ | ✗ | ✓ | ✓ | |||
| Log server supporting IPv6 addresses | ✗ | ✗ | ✓ | ✓ | |||
| Log server supporting non-default VRF | ✗ | ✗ | ✓ | ✓ | |||
| Mirror | port mirroring | ✓ | ✓ | ✓ | ✓ | ||
| Stream mirror | ✗ | ✗ | ✓ | ✓ | |||
| remote mirroring | ✗ | ✗ | ✓ | ✓ | |||
| Multi-source and multi-destination mirror (n:n) | ✗ | ✗ | ✓ | ✓ | |||
| CPU as mirror source | ✗ | ✗ | ✓ | ✓ | |||
| The CPU serves as the mirroring destination and collects and analyzes the messages. | ✗ | ✗ | ✓ | ✓ | |||
| ERSPAN | ✗ | ✗ | ✓ | ✗ | |||
| CPU statistics | CPU uplink and downlink packet statistics | ✗ | ✗ | ✓ | ✓ | ||
| L2 Ping | Layer 2 environment connectivity detection L2Ping (MAC Ping/Trace) | ✗ | ✗ | ✓ | ✓ | ||
| UDLD | Unidirectional link detection | ✓ | ✓ | ✓ | ✗ | ||
| Optical fiber single pass | Optical fiber single pass function | ✗ | ✗ | ✓ | ✓ | ||
| Loopback | port loopback | ✗ | ✗ | ✓ | ✓ | ||
| Hardware loopback (internal/external) | ✗ | ✗ | ✓ | ✗ | |||
| System time | System time settings | ✓ | ✓ | ✓ | ✓ | ||
| Time zone settings | ✓ | ✓ | ✓ | ✓ | |||
| Version upgrade | System software upgrade | Upgrade from local | ✓ | ✓ | ✓ | ✓ | |
| Upgrading from TFTP | ✓ | ✓ | ✓ | ✗ | |||
| Uboot upgrade | Upgrade Uboot online | ✗ | ✗ | ✓ | ✓ |
