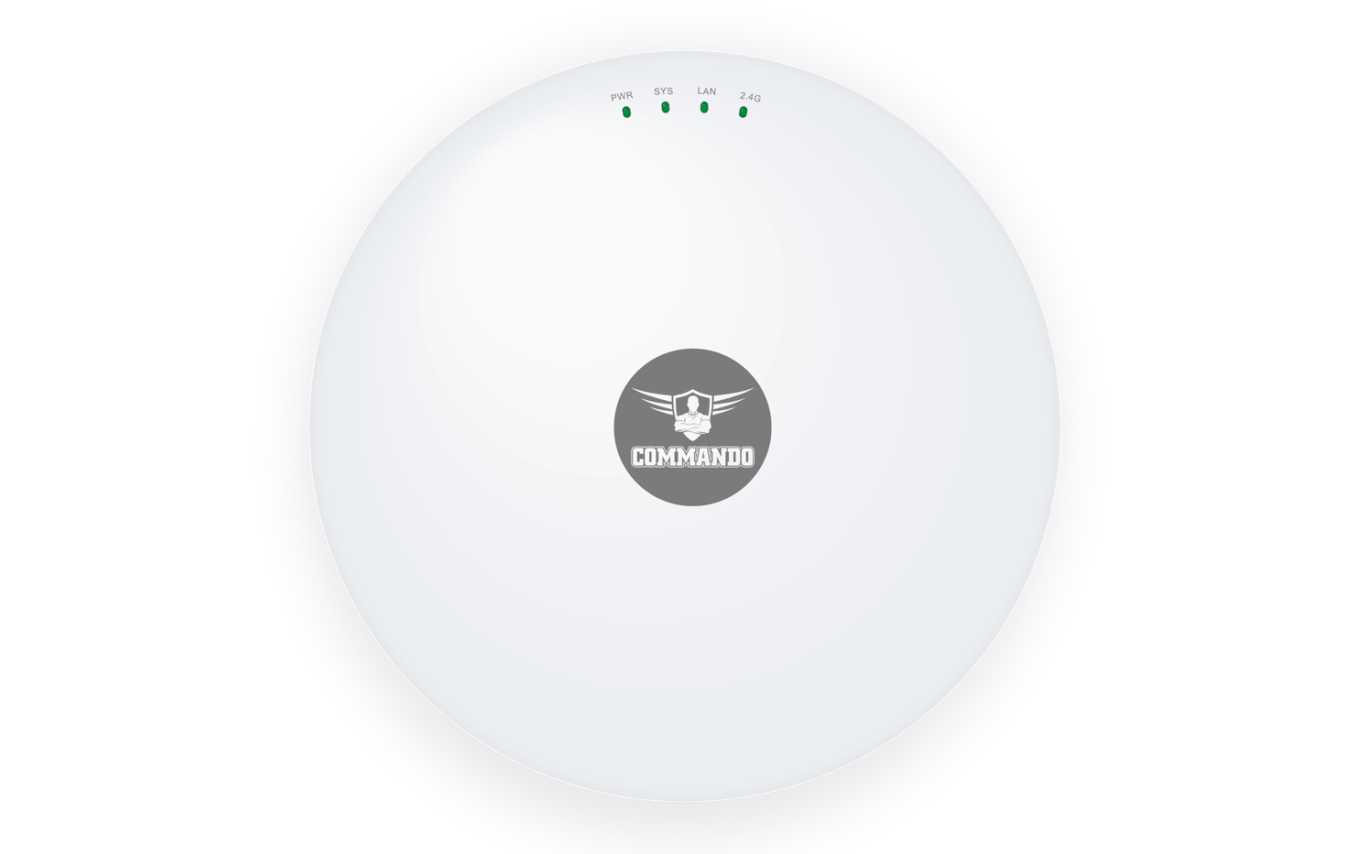

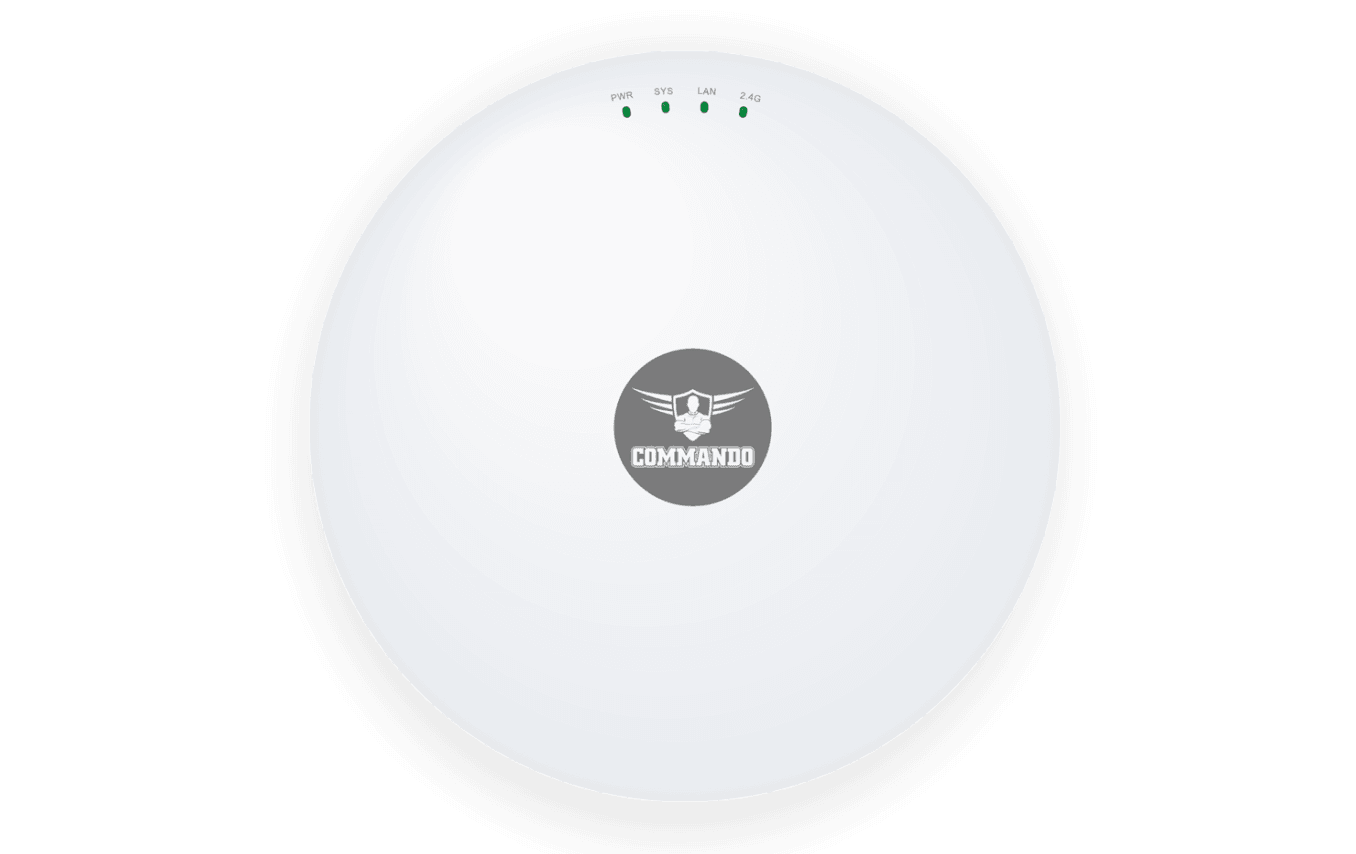

AIR-AP300-PRO

COMMANDO AirPRO 300Mbps, 2x2 MIMO Omni Ant, Cloud Access Point

Gallery YouTube

AIR-AP300-PRO

COMMANDO AirPRO 300Mbps, 2x2 MIMO Omni Ant, Cloud Access Point

Product Highlights

Controller supports DPI (Deep Packet Inspection) Seven Layer Flow Control with One Click Flow Control and Manual Flow Control
Controller supports Multi-WAN load balance with auto failover recovery for reliable and efficient access
Controller supports Access Point Management via Easy WEB GUI, Telnet and Cloud based Portal Authentication
Controller supports AC Intelligent Management Function, works together with COMMANDO PRO Series Access Points, easy Access Point Management
Controller supports COMMANDO Platform Management, Centralized Management and Maintenance via lifetime free Cloud base account
Standard Wireless Roaming Mechanism (802.11r), Wireless roaming for seamless network experience on the move
Controller supports VPN for Encrypted Communication, Ensure Remote Access Security
Controller supports Multi-Vendor WAN Line simultaneous Access, WAN load sharing and balancing by different ISP, Rational use, Load Balancing with failover , Reduce Bandwidth Costs
Controller supports Wireless Marketing Function, Various Authentication Methods to meet the needs of Different Users and Scenarios
Controller supports Tag based and port based VLANs to group control and relocate traffic pattern
Controller supports Full protocol stack for both IPv4 and IPv6, afford to 100+ concurrent users and 100,00 concurrent sessions
Controller supports IPsec, PPTP and L2TP VPN support up to 64 concurrent tunnels with max 2Gbps throughput (Ipsec).
Controller supports QoS and Bandwidth Management for optimal bandwidth usage.
Controller supports High Availability for mission critical application with muti-WAN load balance
Controller can manage up to 100 APs & 100+ users, with Discovery, Configuration, and Monitoring Functions.
Controller supports User certification by X.509 and authentication by Radius/AD/LDAP server for user and group management.
Controller supports Multiple WANs, Failover/ Load Balance with configurable Ethernet
Controller supports Support DHCP based dynamic IP, Static IP, PPPoE, PPTP, L2TP
Controller supports IPv6 with Dual Stack, 6-in-4, 6-to-4, Dynamic, Static, PPPoE
Controller supports VLAN Port Based, Tag- based
Controller supports NAT: ALG, Special AP, DMZ Host, Virtual Server/ Computer, PPTP/ L2TP/IPSec Pass-through, Up to 100,000 Sessions
Controller supports Routing with Static, Default and Dynamically learn connected route
Controller supports Client & Server for DHCP, DDNS, IGMP
Controller supports AP Auto Discovery, Monitoring & Alerting, Profile based Configuration, AP Load balance, AP Blacklisting and Whitelisting
Controller supports User Accounts, User Grouping, Bound Services
Controller supports Firewall, Access Control with Packet Filters, URL Blocking, Web Content Filters, Application Filters, MAC filter
Controller supports 3200+ Application Protocol Identification, for more Accurate Flow Control, Improved Bandwidth Utilization
Controller based with captive portal for online monitoring of clients
Multiple SSID with Up to 4 SSIDs in single band device , 8 SSID in Dual Band
2* 2 MU-MIMO Gain Omni with 2dBi(2.4GHz)/3.5dBi (5GHz) Internal Antenna

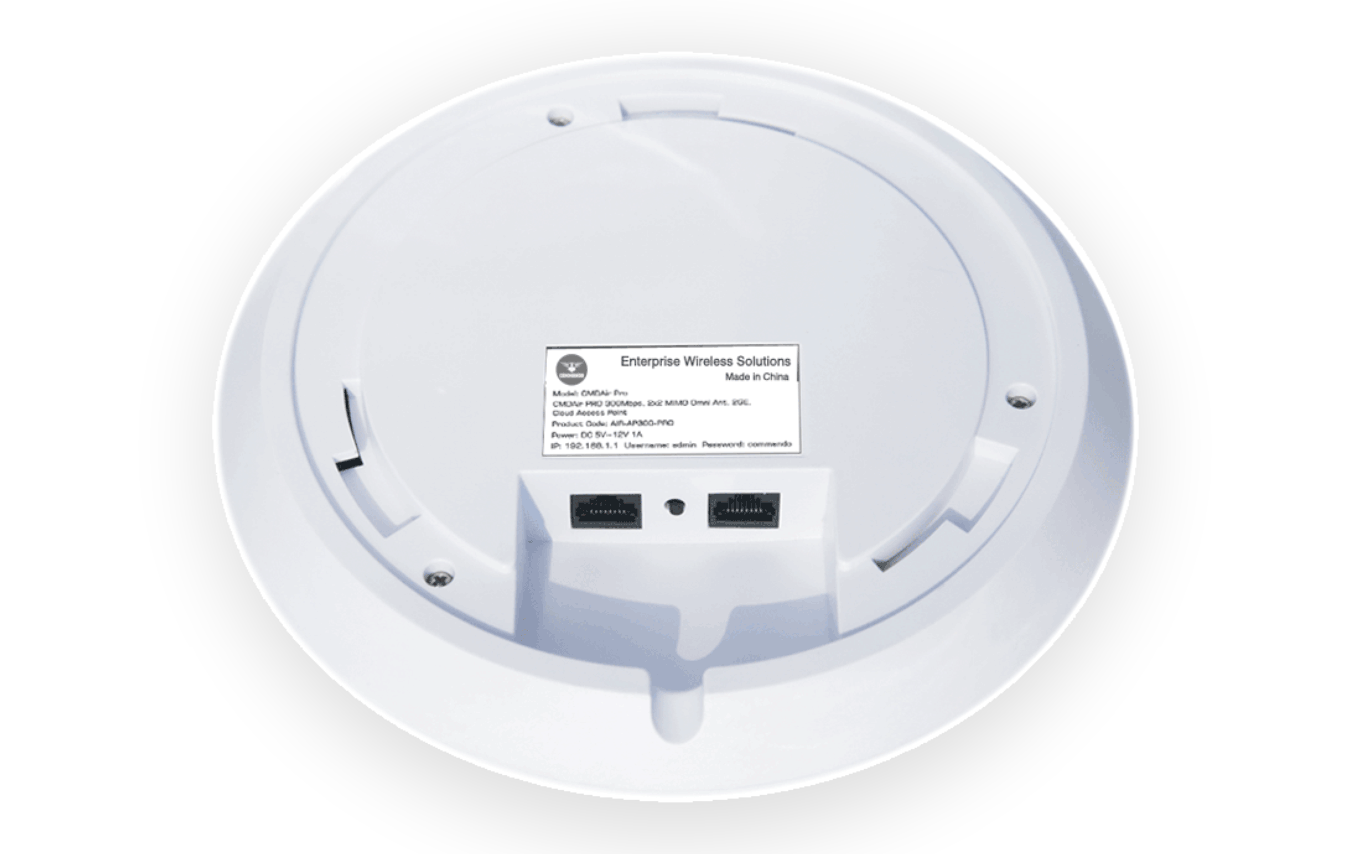

Dual purposes WAN or IEEE 802.3at Port (PoE+) port supporting 1x 10/100/1000Mbps
Supports IEEE802.11 a/b/g/n/ac Wireless Standard
Single/Dual Radio Wireless AP having (2.4GHz+5GHz)
Dual purposes WAN or IEEE 802.3at Port (PoE+) port supporting 1x 10/100/1000Mbps
Support encryption like WPA-PSK, WPA2-PSK and WPA-PSK+WPA2-PSK Wireless Protection
5G Priority access and fast roaming
SSID Vlan, divide Vlan for SSID
Independent SSID setting and hiding
Independent setting of signal strength and channels
Custom AP start time and scheduled restart
Support English and Chinese SSID, SSID independent setting and hiding
Support wireless roaming, experience a better network on the move
Adopt of 86 Type wall mount junction box design
Supports Wi-Fi client distance up to 35 meters depending on models and surrounding conditions
Intelligent AC Unified Management, easy management and maintenance
Single/Dual Radio Wireless AP having (2.4GHz+5GHz)
Plug and Play design simplifies installation with self-adaption.
Compact, silent design perfect for noise sensitive environments.
With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.
Built-in High-Performance Processor with long life, Suitable for Deployment of large scale Commercial Scenarios
Comes with one-year default warranty – optionally extendable up to 3 years.

Software Highlights


Monitoring

Interface, Terminal, Protocol, Policy, System, Flow Control.

System Setup

Basic Setting, Disk management, Cloud Account, Advanced Settings like ALG Set, Administration, Upgrading, Reboot.

Network

Interfaces, DHCP, DNS, IP/MAC Group, Static Routes, VLAN,VPN Client,UPNP NAT, Port Mapping, IPv6, IGMP Agent.

Flow Control

Multi-WAN features Load Balancing/Protocol/Port Forward/Domain Name/Upload/Download, Smart Flow Control, IP/MAC Limiters, Protocol Library.

Access Controller

Wireless overview, AP Configuration, AP group, AP Firmware Upgrades, Wireless black and white list, User Information.

1. Wireless overview: Open Access Controller with ON/OFF button. The connected AP will automatically enter the AP device list and can Manage AP. Running State of AP status with Online AP, Offline AP, fast roaming, 5G first along with terminal statistics like 2.4G online, 5G online, peak online, active terminal, inactive terminal. Wireless Network Rating with traffic statistics, terminal association details with Access evaluation, Access times, Average access success rate with Network transmission quality.

2. AP Configuration: Access Point Configuration with All groupings, All Status like Online/Offline/Upgrading, All Frequency like (2.4G/2.4G+5G) and IP/MAC/Model/Remarks.

Interference Analysis with Start Searching AP, MAC, Remarks, BSSID, BSSID Remark, SSID, Signal Value, Channel along with Import or Export configuration files.

Default Configuration for 2.4G, 5G Radio with other Setting like SSID1 Name - COMMANDO01

SSID1 Security No Password, SSID1 VLAN Close, Hide SSID1 Name Open, SSID rate limit Open, Guest Mode Open (Isolate guest devices discovery and access to wired network) Channel Auto, AP Signal 80% default Channel width 20 MHz can change to 40MHz or self-adaptation, Airtime scheduling, Advanced settings like Beacon frame power

Follow AP signal strength Beacon frame interval 200 ms, RTS threshold0, Low-rate access license Allow all, Management frame rate 1Mbps.

3. AP group: AP Group Add/Delete with Group name, Number of AP, channel, Maximum belt capacity, SSID, Actions. With Add button click we can set Group name with 2.4G/5G control state information.

4. AP Firmware Upgrades: Access Point Upgrades with MAC/Model, Upgrade All, Batch Upgrade with information like MAC Address, Current Version, Latest Version, Status, AP Remarks, Actions

5. Wireless black and white list: With Add, Import, Export, Enable, Disable, Delete which also shows Mode, Terminal MAC address, SSID, AP, week, time, comment, Status, Actions

6. User Information: User Information with IP/MAC/SSID, All Frequency (2.4G/5G), All users along with weak signal users and normal users showing information like IP Address, MAC, AP Information, SSID, Signal, Connect Time, Tx, Rx, Comment, Actions.

Authentication

Captive Portal, VPN Server, Authentication Account, Push Notification.

Behaviour

Behavior Audit with Mark MAC Address, MAC Control, Website Control, URL Control, Application Protocol Control, Secondary Routing, QQ, Blacklist/Whitelist.

Firewall

ACL Rules, ARP binding, Connection Limiter, Advanced Firewall. Advanced application-->Dynamic DNS, SNMP, Application across three layers, Wake on LAN, FTP Server, HTTP Server, UDPXY Set.

Services

Ping Test, Capture Packet, Trace Route, IP Sub-netting, Speed Test, Diagnostics, Watchdog.

Log

User Logs, Function Logs, System Logs.

COMMANDO AirPRO Ceiling AP’s controller also has cloud captive portal with AirPRO Cloud Login http://commandonetworks.com.cn/#/login.
