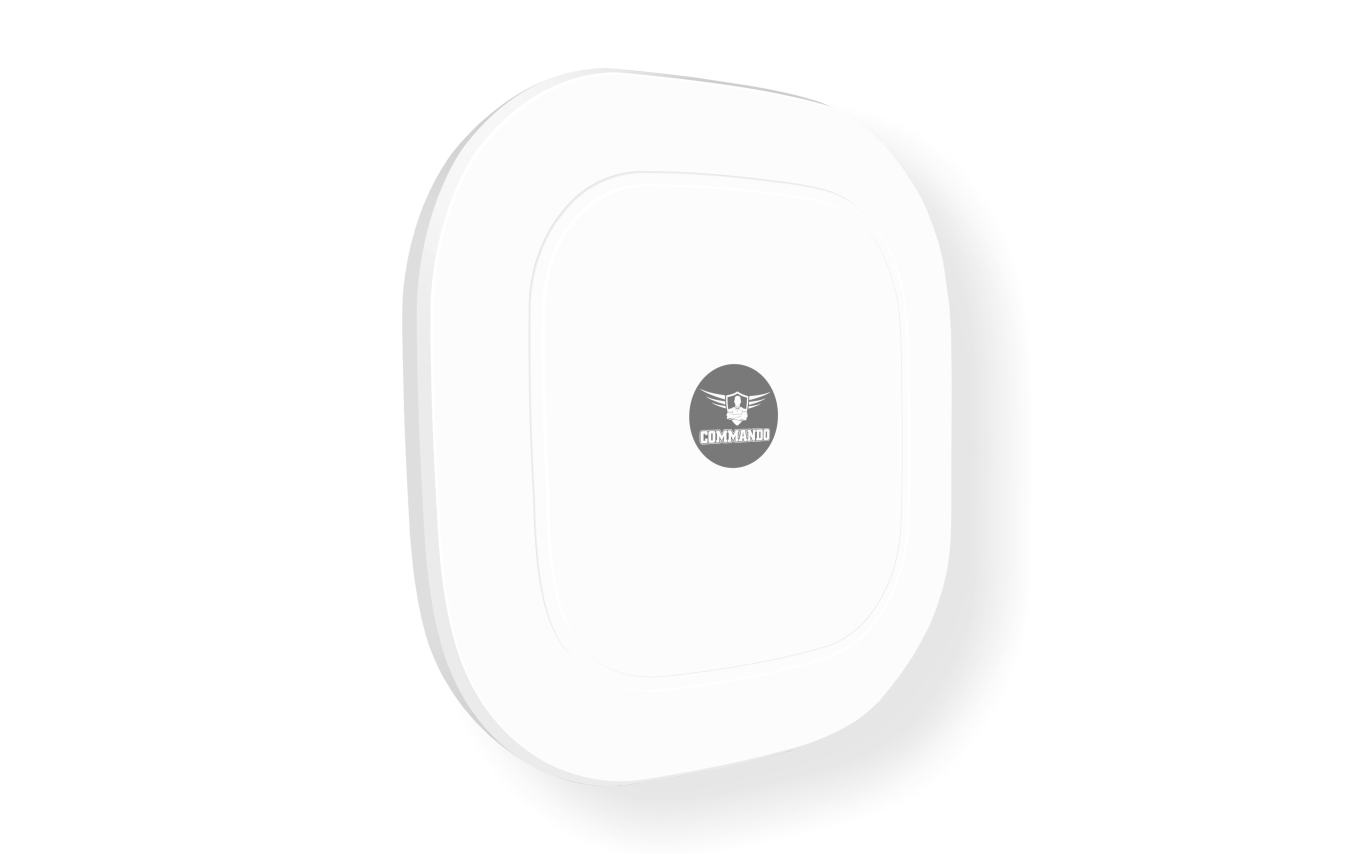

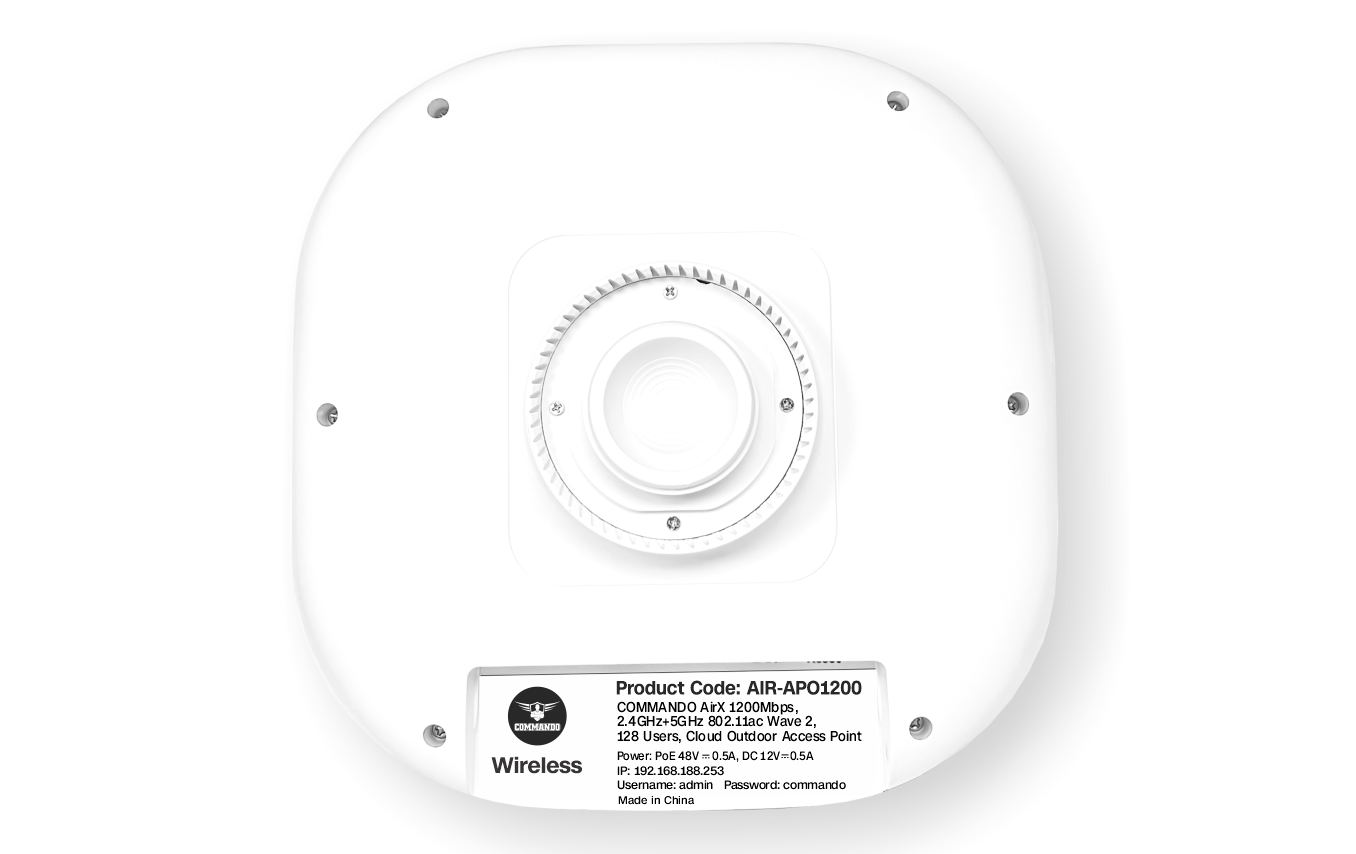

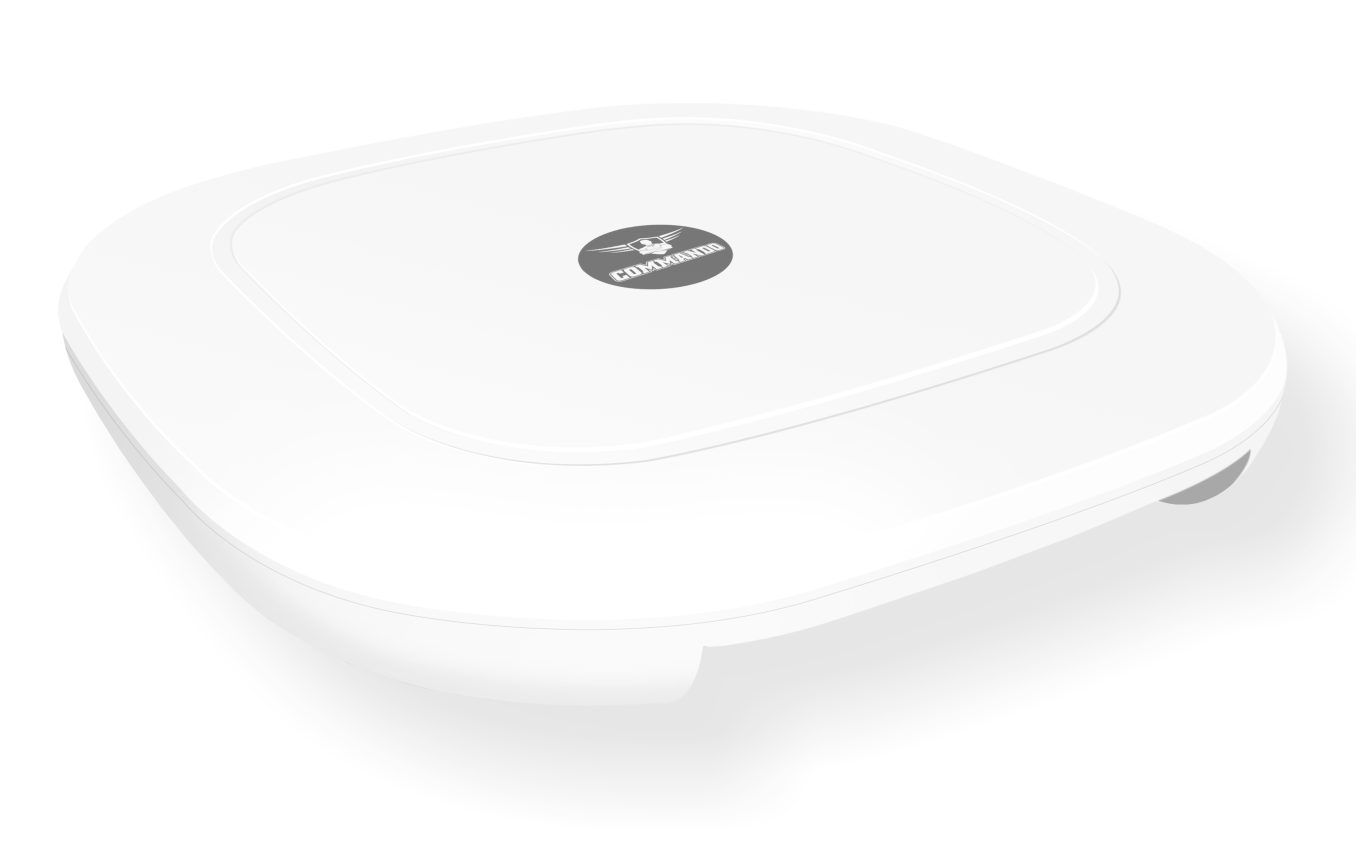

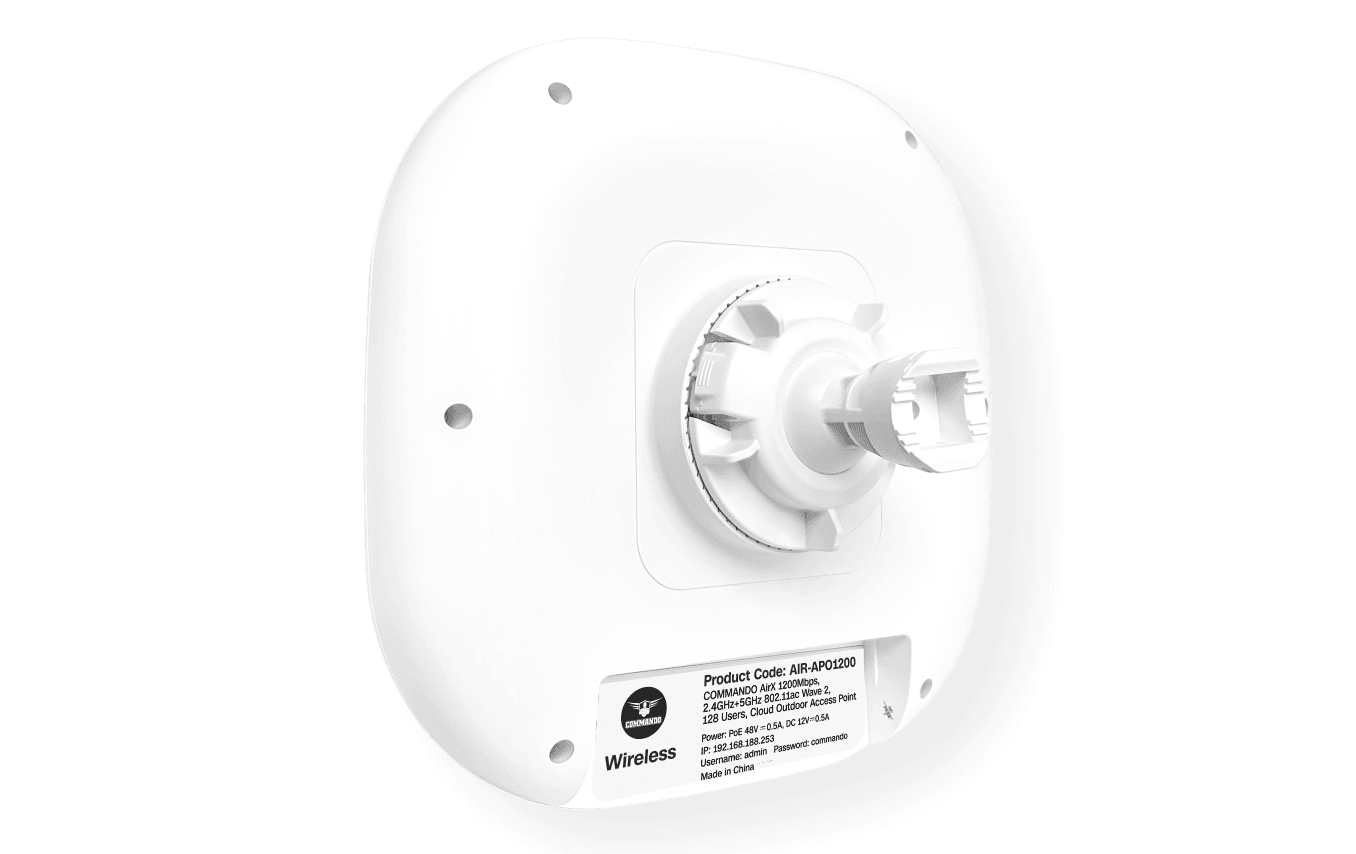

AIR-APO1200 is a 1200 Mbps Outdoor wireless AP, build in 5dBi Omni antenna, more than 500 meters Outdoor Wi-Fi coverage. It supports Wireless AP, Gateway, WISP, Wireless Bridge operation mode, effective solution Outdoor Wi-Fi coverage application. With an Outdoor waterproof and dustproof enclosure, built in lighting protection IC, support 24V passive PoE, MIMO Technology, 1200Mbps high speed, integrated IEEE 802.3af PoE Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available.
Equipped enterprise high performance, Comply IEEE 802.11n MIMO Technology, 1200Mbps high speed, allow all connected devices to achieve faster upload/download Ethernet. With powerful amplifier, improved the Wi-Fi range for some area with small quantity wireless AP, Can cut down RF power to suit for some high density wireless AP area to avoid Wi-Fi interference.Power over Ethernet (PoE)
Integrated IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, plug and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.Multiple Operation Mode for Multiple Application
Support Wireless AP, Gateway, Wi-Fi Repeater to meet with different installation requirements, such as Gateway for home use, Wi-Fi Repeater to extend the exist Wi-Fi signal to more rangeMulti SSID, Tag VLAN, AC Controller Centralized Management, Cloud Server Captive Portal Authentication
Support Multi SSID up to 4, each SSID support tag VLAN for User isolation. Work with WLAN Controller, centralized configuration in IP address, SSID, Password, Tag VLAN, RF power adjustable, then remote management, easy to achieve Wi-Fi Coverage and maintenance. Besides that, access into cloud server to do advertisement and Captive Portal authentication guest, to create more business value.
|Standard||802.11ac/b/g/n, MIMO technology|
|Memory||128MB DDR2 RAM|
|1 * 10/100/1000Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE|
|1 * 10/100/1000Mbps RJ45 LAN Port|
|1 * Reset button, press 15 seconds to revert to default setting|
|Antenna||Build in omni antenna, 5dBi, MIMO|
|Power consumption||48V PoE<30W|
|Size||315mm * 145 mm * 80 mm|
|2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac|
|2.4GHz: 2.312GHz to 2.4835GHz|
|5GHz: 5.020 - 6.1000 GHz|
|OFDM = BPSK,QPSK, 16-QAM, 64-QAM|
|DSSS = DBPSK, DQPSK, CCK|
|Data Rate||1200Mbps (2.4G 300Mbps, 5.8G 900Mbps)|
|Receive Sensitivity & RF Power|
|RF Power||22.4G:11n @MCS7:23±2DB, @MCS0:25±2DB.
11g @54M:24±2DB, @6M:26±2DB
11b @11M:26±2DB, @1M:28±2DB.
5.8G: 11a @54M:24±2DB, @6M:26±2DB.
11n @MCS7:22±2DB, @MCS0:24±2DB.
11ac @MCS9:21±2DB, @MCS0:23±2DB.
|Receive Sensitivity||2.4G:11n:-70dbm@MCS7, -88dbm@MCS0.
11g: -72dbm@54Mbps, -88dbm@6Mbps.
11b: -85dbm@11Mbps, -94dbm@1Mbps.
5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.
11n: -70dbm@MCS7, -90dbm@MCS0.
|EVM||11n: ≤-28 DB
11g: ≤-25 DB
11b: ≤-10 DB
11a: ≤-25 DB
|Operation mode||Wireless AP, Gateway, WISP, Wi-Fi Repeater|
|WAN Type||Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)|
|Wireless Security||64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK, 802.1x encryption|
|SSID||Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)|
|Firewall||DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding|
|Package Contents||1200Mbps Dual Band wireless access point
Quick Installation Guide
|System Requirements||Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux|
|Environment||Operating Temperature: -40~55
Storage Temperature: -40~70
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
|Management||Firmware GUI , Remote Management, WLAN Controller, Cloud Management System|
