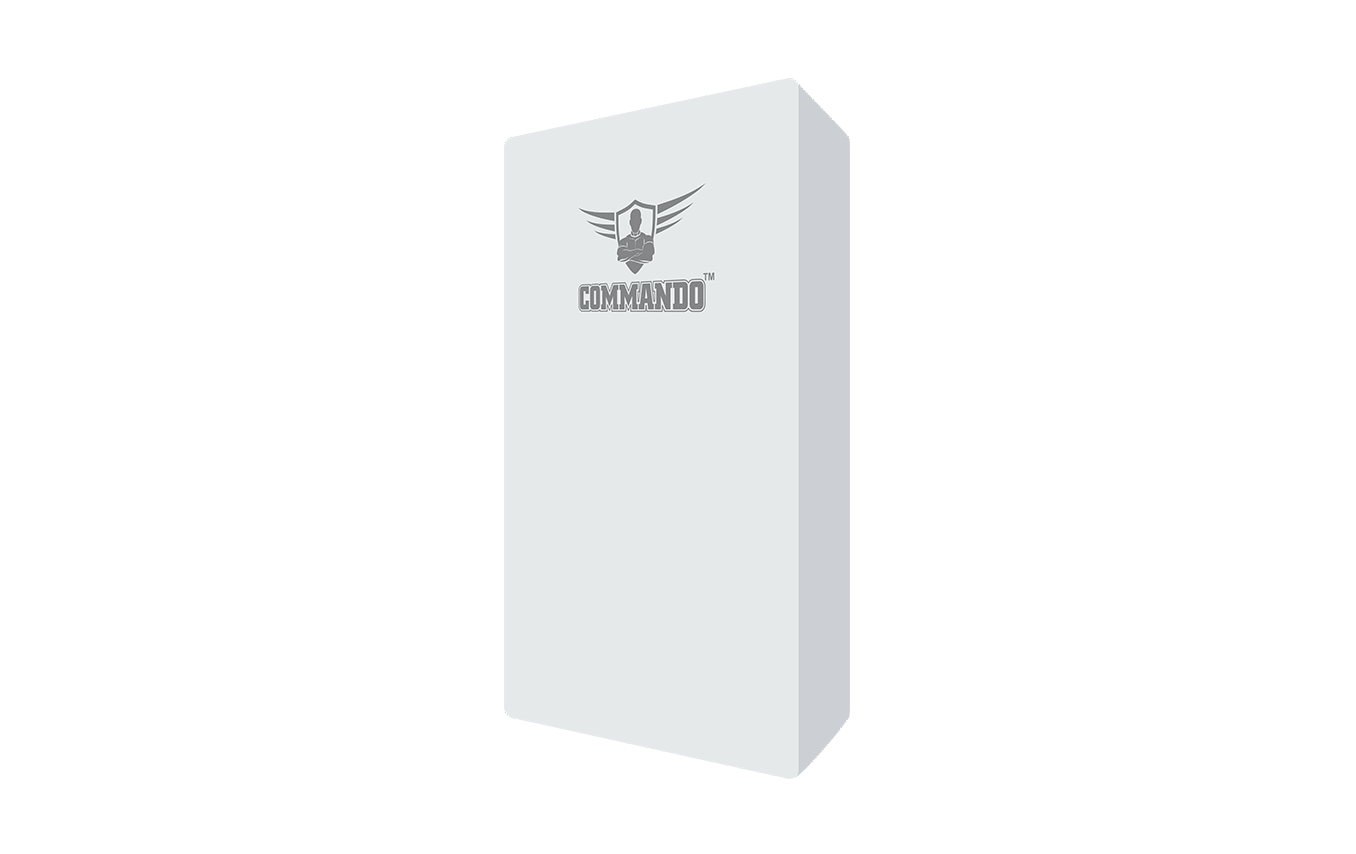

COMMANDO AirACE 1KM, 300Mbps, 2.4GHz, 802.11n, 20dBm, IP65, Wireless Bridge
AIR-WB-1K-ACE
COMMANDO AirACE 1KM, 300Mbps, 2.4GHz, 802.11n, 20dBm, IP65, Wireless Bridge
COMMANDO AirACE Wireless Bridge Series, 2.4GHz, 802.11n, 150Mbps, 8dBi Internal Directional Antennas, 2T2R, Wireless Power 100mW/20dBm, Multi SSID up to 4, Support Beamforming Technology, 8MB Flash, 32MB DDR2 RAM, Support 24V Passive PoE
Information
AIR-WB-1K-ACE is a 300Mbps Outdoor Wireless Bridge, Build in 8dBi Antenna, 800m Outdoor Wi-Fi Distance Coverage. It supports Wireless AP, Gateway, Wireless Bridge & Super WDS Operation Mode, An Effective Solution for Outdoor Wi-Fi Coverage Application. With an Outdoor Waterproof and Dustproof Enclosure, built in Lighting Protection IC, 24V passive PoE, 2T2R MIMO Technology, 150Mbps high speed, integrated IEEE 802.3af PoE Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available.
At-a-Glance
- 1. 802.11n 2.4GHz 300Mbps Outdoor Wireless Bridge
- 2. 2 MIMO 8dBi Internal Directional Antennas
- 3. Wireless Power 100mW/20dBm
- 4. Support Multi SSID up to 4
- 5. Supports PTP/PTMP Distance up to 800M
- 6. Support WDS PTP/PTMP connection by LED display configuration
- 7. Supports HI-MAX TDMA Technology (Time-division multiple access)
- 8. Support 24V POE
- 9. Waterproof and Dustproof Enclosure
- 10. Beamforming Technology
- 11. With Wi-Fi Channel Analysis Tool
Features
AIR-WB-1K-ACE Supports HI-MAX TDMA Technology (use polling technique to solve the hidden node and resource waste problem between the CPE and base station, provide low latency, high throughput in PTP/PTMP application likes IP camera, long range Wi-Fi Transmission), Gateway, Wireless AP, WISP, WDS operation mode for all wireless coverage.
300Mbps High Data Rate, High PerformanceAIR-WB-1K-ACE supports Wireless AP, Gateway, and Wireless Bridge, super WDS operation mode, to suit for variety application environment. LED display, easy to setup IP address, signal strength, Channel and WDS connection by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
Time-division multiple accessTime-division multiple access (TDMA) is a channel access method for shared-medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots The users transmit in rapid succession, one after the other, each using its own time slot. This allows multiple stations to share the same transmission medium (e.g. radio frequency channel) while using only a part of its channel capacity
Power over Ethernet (PoE)IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, 24V passive PoE Integrated, Plug and Play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Specification
| Hardware | |
|---|---|
| Standard | 802.11n, MIMO technology |
| Memory | 32MB DDR2 RAM |
| Flash | 8MB |

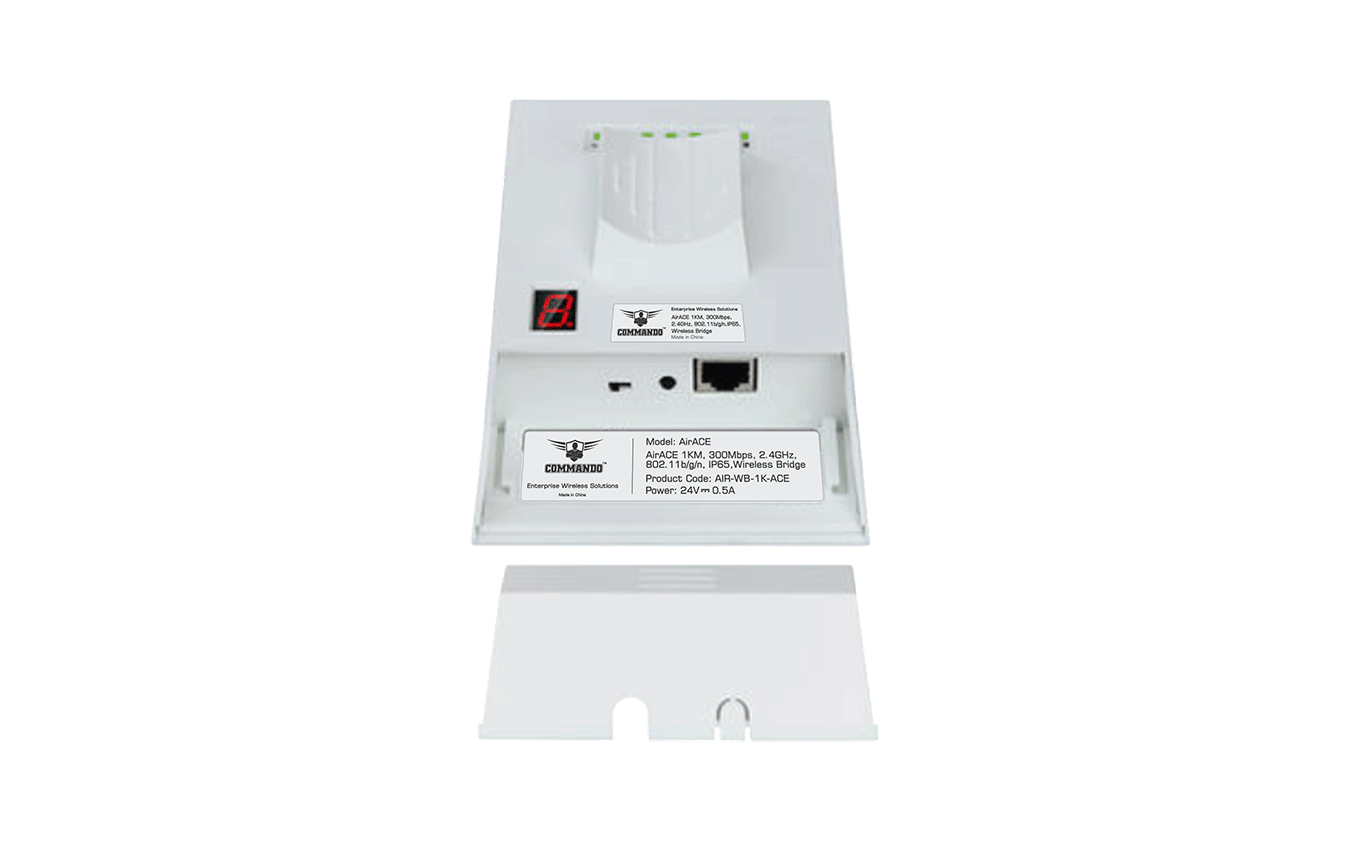

| Interface | 1 * 10/100Mbps RJ45 WAN Port 1 * WDS switch button, press it to do WDS PTE/PTMP connection 1 * DC injector, 12V/1A 1 * Reset button, press 15 seconds to revert to default setting |
| Antenna | Build in 8dBi MIMO Panel Antenna |
| Power consumption | 24V PoE, <8W |
| Size | 260mm * 85 mm * 45mm |
| RF Data | |
| Frequency | 2.4GHz: 802.11n |
| Throughput | 150Mbps |
| Country code | FCC, IC, ETSI, MKK, MKK1, MKK2, MKK3, NCC, RUSSIAN, CN |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK |
| Receive Sensitivity& RF Power | |
| RF Power | 802.11n HT20: MCS7 23±2DB, MCS0 26±2DB. 802.11n HT40: MCS7 22±2DB, MCS0 25±2DB. |
| Receive Sensitivity | 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 . 802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 . 802.11ac HT80: -60dbm@MCS9, -86dbm@MCS0 . |
| EVM | 802.11n: <=-28 DB 802.11a: <=-25 DB |
| Firmware Features | |
| Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater, WDS |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SSID | Multiple SSID up to 4 |
| Protocols | IPv4 |
| Others | |
| Package Contents | 150Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: -44~55°C Storage Temperature: -40~70°C Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
| Management | Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System |
