SFP Modules

COMMANDO FiberX SFPs offer extended reach up to 20KM, are multi-vendor compatible, MSA-compliant, and energy-efficient (<1W). With advanced heat dissipation, DDM, and a durable metallic build, they deliver reliable, high-speed performance for demanding networks.

SFP Modules

COMMANDO FiberX SFP’s are Multi-vendor and has advance compatibility with most major brands in the market. It is extra powerful to transmit data double the distance compared to most other brands – for example – 1G Single Mode SFP covers 20KM distance instead of 10KM and similarly so 10G SFP Module covers 20KM. With its special heat dissipation mechanism, it performs higher, better, and longer. The SFPs are MSA Compliant. It supports DDM and is dust proof. The SFPs are Hot-pluggable and RoHS Compliant. It is a Class 1 laser product Operating temperature range from 0℃ to 70℃. It is in standard and compact size, fully metallic enclosure for Low EMI. It supports speed with backward compatibility and has Low power consumption (Module work consumption <1W).

No videos available

SFP-SM-1G

COMMANDO FiberX 1000BASE-LX/LH, SFP, 1310nm, 20km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports data transfer rate of 1.25Gbps
Hot-pluggable SFP to maximize uptime and simplify serviceability
1310nm FP laser transmitter
Duplex LC connector
Built-in Digital Diagnostic Monitoring functions
Up to 20km on 9/125 µm SMF
Single power supply 3.3V and TTL Logic Interface
Standard size, Compact casing, and dust proof
Compliant with SFP MSA
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Applications: 1.25Gbps Gigabit Ethernet, 1.063Gbps Fiber Channel
Operating temperature range: 0℃ to 70℃
3-Year Warranty

SFP-MM-1G

COMMANDO FiberX 1000BASE-SX, SFP, 850nm, 550m, MMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports up to 1.25Gbps bi-directional data links
Hot-pluggable SFP to maximize uptime and simplify serviceability
Compliant with IEEE 802.3z Gigabit Ethernet and 1000BASE-SX
850nm VCSEL laser transmitter
Duplex LC connector
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 550m on 50/125 µm MMF
Up to 300m on 62.5/125 µm MMF
Single power supply 3.3V and TTL Logic Interface
Standard size, Compact casing, and dust proof
Compliant with SFP MSA
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range: 0℃ to 70℃
Applications: 1.25Gbps Gigabit Ethernet, 1.063Gbps Fiber Channel
3-Year Warranty

SFP-UTP-1G

COMMANDO CopperX 1000BASE-T RJ45, SFP, 100m, CAT5/6, Multi-brand

Multi-vendor platform compatible
Supports up to 1.25Gbps bi-directional data links
Data transmission distance up to 100m
Hot-pluggable SFP to maximize uptime and simplify serviceability
Compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
Support 10/100/1000BASE-T operation in host systems with SGMII interface
Auto-sense MDI/MDIX
RJ45 Connector
Built-in Digital Diagnostic Monitoring (DDM) functions
Single power supply 3.3V and TTL Logic Interface
Standard and compact size, fully metallic enclosure for Low EMIF
Low Power Dissipation (1.05W Typical)
Compliant with SFP MSA
RoHS Compliant
Operating temperature range: 0℃ to 70℃
Applications: 1.25 Gigabit Ethernet
3-Year Warranty

SFP-SR-10G

COMMANDO FiberX 10GBASE-SR, SFP+, 850nm, 300m, MMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports from 9.83 Gb/s to 11.3 Gb/s bit rates
Hot-pluggable SFP+ footprint
850nm VCSEL laser transmitter
Duplex LC connector
Compliant with IEEE 802.3ae 10GBASE-SR/SW
Compliant with SFF-8431
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 300m on OM3 MMF
Up to 400m on OM4 MMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 10GBASE-SR/SW Ethernet, 10G Fiber Channel, 10G CPRI
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-LR-10G

COMMANDO FiberX 10GBASE-LR, SFP+, 1310nm, 10km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports from 9.83Gb/s to 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser transmitter
Duplex LC connector
Compliant with IEEE 802.3ae, 10GBASE-LR/LW
Compliant with 10G FC 1200-SM-LL-L
Compliant with SFF-8431
Built-in Digital Diagnostic functions
Up to 10km on SMF
Single power supply 3.3V
RoHS Compliant
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 10GBASE-LR/LW Ethernet, 10G Fiber Channel, 10G CPRI Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-ER-10G

COMMANDO FiberX 10GBASE-ER, SFP+, 1550nm, 40km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports from 10Gb/s bit rates
Hot-pluggable SFP+ footprint
1550nm VCSEL laser transmitter
Duplex LC connector
Compliant with IEEE 802.3ae, 10GBASE-ER
Compliant with SFF-8431 and SFF-8432
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 40Km on SMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 10GBASE-ER, Ethernet, 10G Fiber Channel, 10G CPRI
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-ZR-10G

COMMANDO FiberX 10GBASE-ZR/ZW, SFP+, 1550nm, 80km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports from 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
1550nm VCSEL laser transmitter
Duplex LC connector
Compliant with IEEE 802.3ae 10GBASE-ER
Compliant with SFF-8431 and SFF-8432
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 80Km on SMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 10GBASE-ZR/ZW, Ethernet, 10G Fiber Channel, 10G CPRI
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-UTP-10G

COMMANDO CopperX 10GBASE-T RJ45, SFP+, 30m, CAT 6a/7, Multi-brand

Multi-vendor platform compatible
Supports up to 10Gb/s bi-directional data links
Data transmission distance up to 30m with CAT 6a/7
Hot-pluggable SFP+ to maximize uptime and simplify serviceability
Compliant with IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3ae and IEEE802.3an
Support 10M/100M/1000M/10GEBASE-T with backward compatibility
Auto-sense MDI/MDIX
RJ45 Connector
Built-in standard Digital Diagnostic Monitoring (DDM) functions
Standard and compact size, fully metallic enclosure for Low EMI
Low Power Dissipation (1.05W Typical)
Compliant with SFP+ MSA using SFF-8431 and SFF-8432
RoHS Compliant
Operating temperature range: 0℃ to 70℃
Applications: 10Gbps Gigabit Ethernet
3-Year Warranty

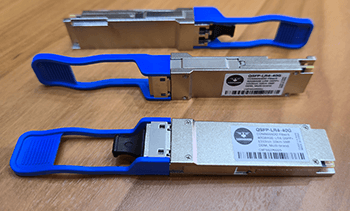

QSFP-LR4-40G

COMMANDO FiberX 40GBASE-LR4, QSFP+, 1310nm, 10km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports 44.6Gb/s bit rates
Hot-pluggable QSFP+ footprint
1310nm VCSEL laser transmitter
LC duplex Connector
Compliant with IEEE 802.3ba, 40GBASE-LR4
Compliant with SFF-8436
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 10Km on SMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 40GBASE-LR Ethernet, 40G Fiber Channel, 40G CPRI
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

QSFP-SR4-40G

COMMANDO FiberX 40GBASE-SR4, QSFP+, 850nm, 100m, MMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports 41.2Gb/s bit rates
Hot-pluggable QSFP+ footprint
850nm VCSEL laser transmitter
MTP/MPO-12 Male Connector
Compliant with IEEE 802.3ba, 40GBASE-SR4
Compliant with SFF-8436
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 100m on MMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 40GBASE-SR Ethernet, 40G Fiber Channel, 40G CPRI
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

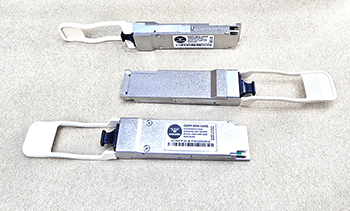

QSFP-SR4-100G

COMMANDO FiberX 100GBASE-SR4, QSFP28+, 850nm, 100m, MTP/MPO-12, MMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports 103.1Gb/s bit rates
Hot-pluggable QSFP28 footprint
850nm VCSEL laser transmitter
MTP/MPO-12 Male Connector
Compliant with IEEE 802.3bm, 100GBASE-SR4
Compliant with SFF-8665 and SFF-8636
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 100m on MMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 100GBASE-SR Ethernet, 100G Fiber Channel, 100G CPRI
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

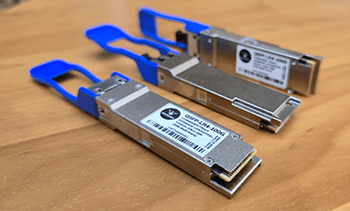

QSFP-LR4-100G

COMMANDO FiberX 100GBASE-LR4, QSFP28+, 1310nm, 10km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports 103.125Gb/s bit rates
Hot-pluggable QSFP28 footprint
1310nm VCSEL laser transmitter
LC duplex Connector
Compliant with IEEE 802.3bm, 100GBASE-LR4
Compliant with SFF-8665 and SFF-8636
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 10Km on SMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS Compliant
Class 1 laser product complies with EN 60825-1
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 100GBASE-SR Ethernet, 100G Fiber Channel, 100G CPRI
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-LR-25G

COMMANDO FiberX 10/25GBASE-LR, SFP28, 1310nm, 10km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Up to 10km on SMF
Supports data rate 24.3Gbps - 26.5Gbps with CDR engaged mode and data rate 9.95Gbps - 10.31Gbps with CDR bypassed mode
Hot-pluggable SFP28 footprint
1310nm DFB laser transmitter and PIN PD Receiver
Duplex LC connector
Compliant with IEEE 802.3cc, IEEE 802.3ae, 10GBASE-LR and 25GBASE-LR
Compliant with SFF-8402, SFF-8432 and SFF-8472
Built-in Digital Diagnostic functions
Internal CDR on both Transmitter and Receiver channel
Application to 25GBASE-LR, 10GBASE-LR and CPRI and eCPRI Wireless Networks
Single power supply 3.3V
RoHS Compliant
Operating temperature range (Case Temperature): 0◦C to 70◦C
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-SR-25G

COMMANDO FiberX 25GBASE-SR, SFP28, 850nm, 70/100m, OM3/4 MMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports Up to 25.78Gbps bi-directional data links
Hot-pluggable SFP28 footprint
850nm VCSEL laser transmitter
Duplex LC connector
Compliant with Compatible IEEE 802.3by, 25GBASE-SR
Compliant with FC-PI-6, SFF-8402, SFF-8419, SFF-8432 and SFF-8472
Built-in Digital Diagnostic Monitoring (DDM) functions
Up to 70m on OM3 MMF
Up to 100m on OM4 MMF
Low power consumption (Module work consumption <1W)
Single power supply 3.3V
RoHS-6 Compliant
Class 1 laser product complies with EN 60825-1
Clock data recovery on transmit and receive channels CDR
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 25GBASE-SR Ethernet, 25G Fiber Channel, eCPRI Wireless Networks
Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-LR-10G-20K

COMMANDO FiberX 10GBASE-LR, SFP+, 1310nm, 20km, SMF, DDM, Multi-brand

Multi-vendor platform compatible
Supports from 9.83Gb/s to 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser transmitter
Duplex LC connector
Compliant with IEEE 802.3ae, 10GBASE-LR/LW
Compliant with 10G FC 1200-SM-LL-L
Compliant with SFF-8431
Built-in Digital Diagnostic functions
Up to 20km on SMF
Single power supply 3.3V
RoHS Compliant
Operating temperature range (Case Temperature): 0◦C to 70◦C
Applications: 10GBASE-LR/LW Ethernet, 10G Fiber Channel, 10G CPRI Standard and compact size, fully metallic enclosure for Low EMI
3-Year Warranty

SFP-UTP-10G-80M

COMMANDO CopperX 10GBASE-T RJ45, SFP+, 80m, CAT 6a/7, Multi-brand

Multi-vendor platform compatible
Supports up to 10Gb/s bi-directional data links
Data transmission distance up to 80m with CAT 6a/7
Hot-pluggable SFP+ to maximize uptime and simplify serviceability
Compliant with IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3ae and IEEE802.3an
Support 10M/100M/1000M/10GEBASE-T with backward compatibility
Auto-sense MDI/MDIX
RJ45 Connector
Built-in standard Digital Diagnostic Monitoring (DDM) functions
Standard and compact size, fully metallic enclosure for Low EMI
Low Power Dissipation (1.05W Typical)
Compliant with SFP+ MSA using SFF-8431 and SFF-8432
RoHS Compliant
Operating temperature range: 0℃ to 70℃
Applications: 10Gbps Gigabit Ethernet
3-Year Warranty

SFP Modules

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

SFP Modules

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:

Specifications:
