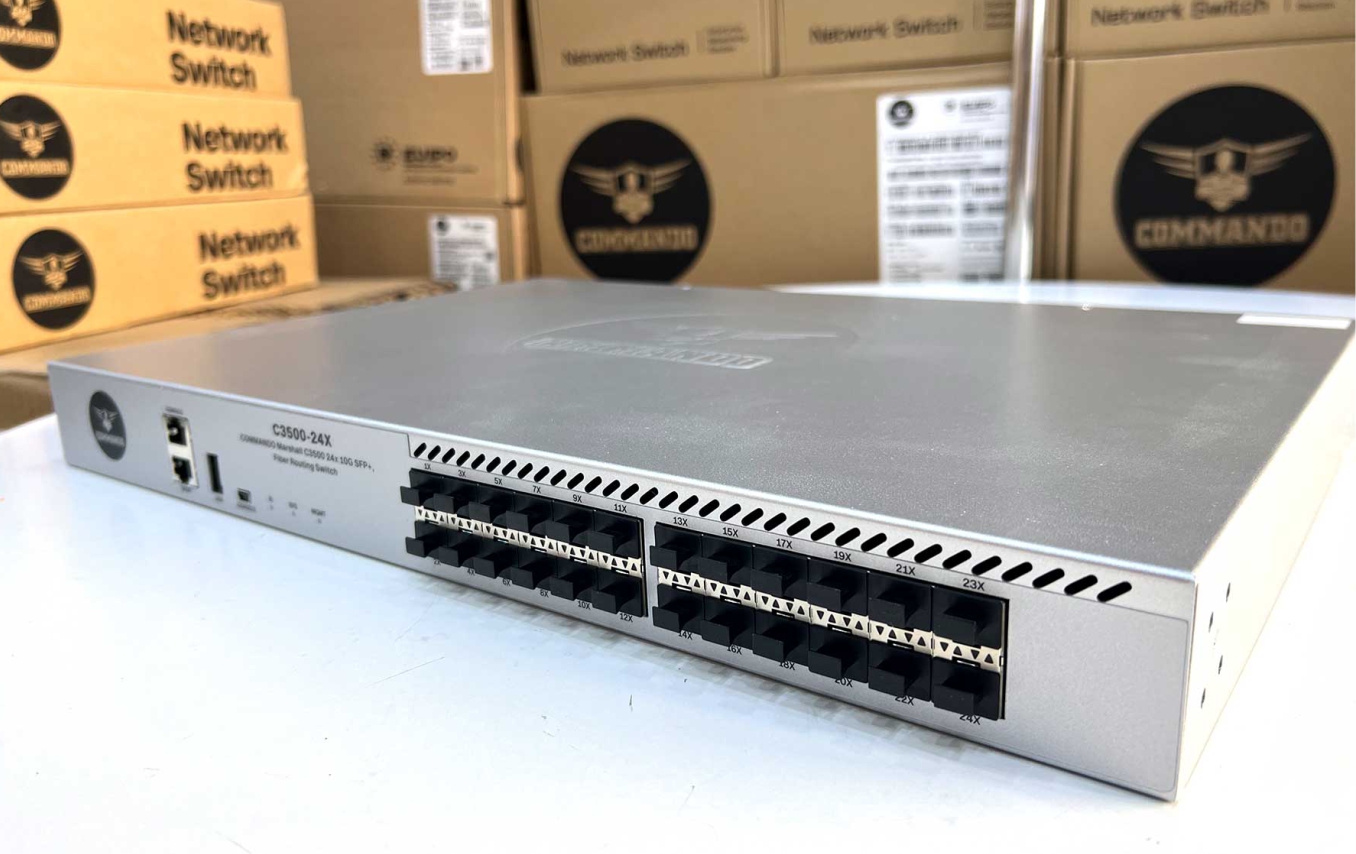

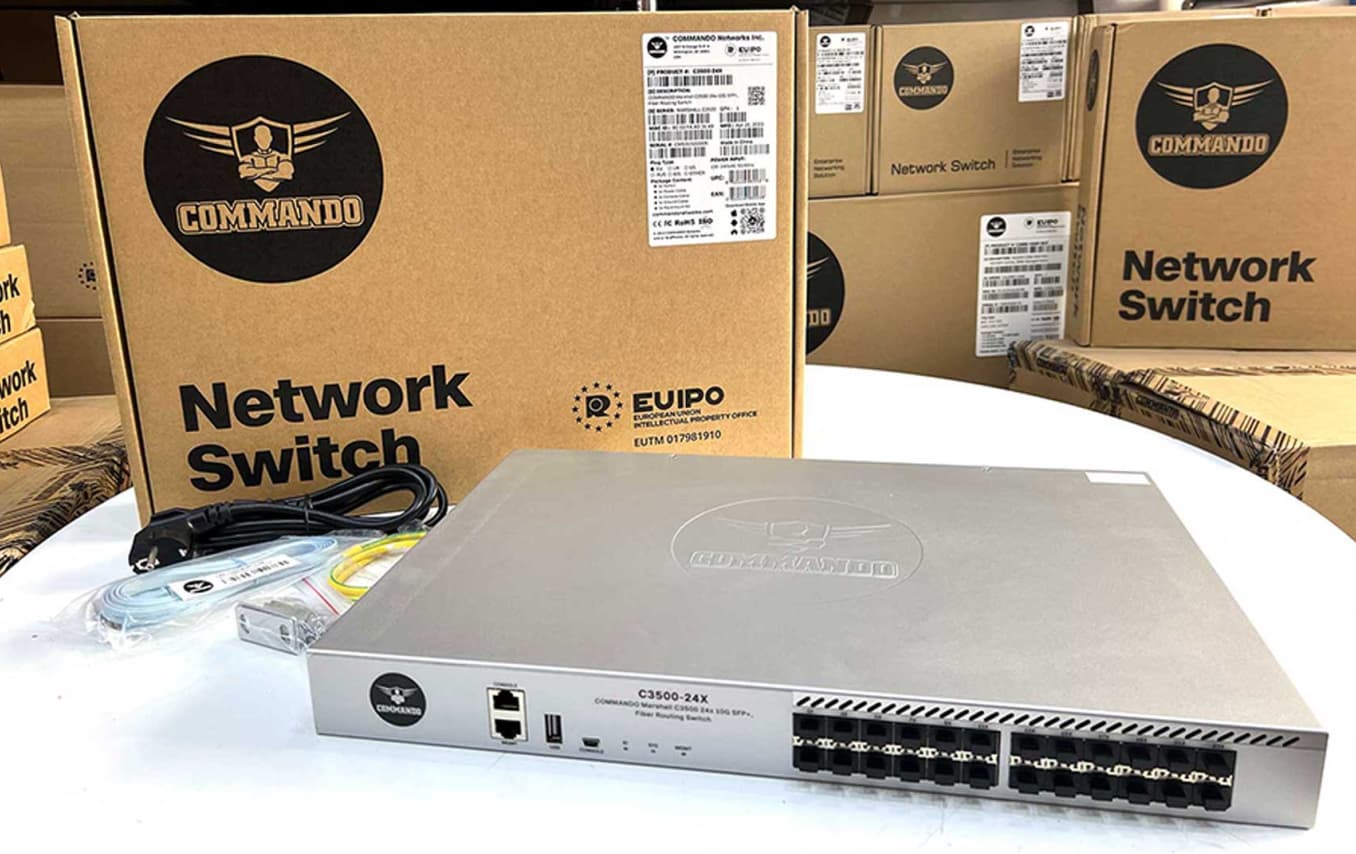

C3500-24X

COMMANDO Marshall C3500 24x10G SFP+, Fiber Routing Switch

Data Sheet CLI Guide Config Guide YouTube Gallery

C3500-24X

COMMANDO Marshall C3500 24x10G SFP+, Fiber Routing Switch

HARDWARE HIGHLIGHTS

24 x 10G SFP+ ports
1 x RJ45 Management port
1 x RJ45 Console port
1 x Mini USB Console port
1 x USB 2.0 Storage port
Switching Capacity: 480 Gbps
Thunder Protection: ±6 KV
Power: 100W
3 Temperature Control Fans
Power Supply: Dual 1+1 Power Supplies (AC + DC)
AC: 100~240V 50/60Hz, DC: 12V, 8.3A
MarshallOS L3+ IP Services Software Feature Set
L3+ 10G SFP+ Fiber Routing Switch
5 Year Extendable Warranty

SOFTWARE HIGHLIGHTS


Data Center Features

VSF (Virtual Switch Framework)
Priority Flow Control (PFC), Explicit Congestion Notification (ECN) and Data Center TCP
MLAG (Multi-Chassis Link Aggregation)
Overlay technology NVGRE/VXLAN/GENEVE
RPC-API for SDN (Software Defined Network

L3 Features

Dynamic Routing (IPv4 Based) BGP4, RIPv1/v2, OSPFv2, IS-IS.
Dynamic Routing (IPv6 Based) RIPng, OSPFv3, BGP4+
OSPF multiple process
Policy-based Routing (PBR) for IPv4 and IPv6
VRRP
URPF
ECMP
BFD
IGMP v1/v2/v3, IGMP Proxy
Static Multicast Route
Multicast Receive Control
Illegal Multicast Source Detect
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
Anti ARP/NDP Cheat, Anti ARP/NDP Scan. Dynamic ARP Inspection (DAI)
DNS Client, DNS Relay
GRE Tunnel
Static Route

IPv6 Features

6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel
ICMPv6, ND, DNSv6
IPv6 LPM Routing, IPv6 Policy-based Routing (PBR)
IPv6 VRRPv3, IPv6 URPF, IPv6 RA
RIPng, OSPFv3, BGP4+
MLD Snooping, IPv6 Multicast VLAN
MLDv1/v2, IPv6 ACL, IPv6 QoS

QoS

12 Queues
SWRR, SP, WRR, DWRR, SDWRR
Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number
Traffic Policing
PRI Mark/Remark

ACL

IP ACL, MAC ACL, IP-MAC ACL
Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol
TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
REDIRECT and Accounting based ACL
Rules can be configured to port, VLAN, VLAN routing interfaces
Time Ranged ACL

Security

802.1x AAA
Port, MAC based authentication
Accounting based on time length and traffic
Guest VLAN and auto VLAN
RADIUS for IPv4 and IPv6
TACACS+ for IPv4 and IPv6
MAB

DHCPv4/v6 Traffic Monitor

DHCP Server/Client for IPv4/IPv6
DHCP Relay/Option 82, 252
DHCP Snooping/Option 82

Link Aggregation

802.3ad – Link Aggregation Control Protocol (LACP)
Multi-chassis Link Aggregation (M-LAG)

MPLS

LDP
RSVP
LDP tunneling (LDP over RSVP)
Fast reroute (FRR)
IPv6 tunneling (6PE)
Ingress, transit, and egress label-switched paths (LSPs)
IPv4 Layer 3 VPNs
IPv6 Layer 3 VPNs (6VPE)
Layer 2 circuits

Visibility

Switched Port Analyzer (SPAN)
RSPAN
ERSPAN
Port mirroring
sFlow

Data Center Bridging

Priority-based flow control (PFC)—IEEE 802.1Qbb
Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs)

Troubleshooting

Configuration via CLI/ WEB GUI with console, telnet, or SSH.
Diagnostics with Show, debug, and familiar and well known commands
Port mirroring
IP tools like L2 ping and Extended ping and trace route.
sFlow Traffic Analysis

L2 Features

802.1D – Spanning Tree Protocol (STP)
802.1w – Rapid Spanning Tree Protocol (RSTP)
802.1s – Multiple Spanning Tree Protocol (MSTP)
VLAN Spanning Tree Protocol (VSTP)
802.1AB Link Layer Discovery Protocol (LLDP)
VLAN Registration Protocol
QinQ
Root Guard
BPDU Guard
BPDU Tunnel
IP Source Guard
LLDP and LLDP-MED
UDLD
MAC VLAN, Voice VLAN, Protocol VLAN, Multicast VLAN
QinQ, Selective QinQ, Flexible QinQ

L1 Features

IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
IEEE 802.1ad: QinQ
IEEE 802.1D-2004: Spanning Tree Protocol (STP)
IEEE 802.1p: Class-of-service (CoS) prioritization
IEEE 802.1Q: Virtual Bridged Local Area Networks
IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-T
IEEE 802.3ab: 1000BASE-T
IEEE 802.3z: 1000BASE-X
IEEE802.3an, 10GBASE-T
IEEE 802.3ae: 10-Gigabit Ethernet on fiber
IEEE 802.3bm: 40-Gigabit/100-Gigabit Ethernet on fiber
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.1Qbb: Priority-based Flow Control
IEEE 802.1Qaz: Enhanced Transmission Selection
IEEE802.3ak(10GBASE-CX4)
Port loopback detection
802.3ad LACP, max 128 group trunks with max 8 ports for each trunk
LACP load balance
N:1 Port Mirroring
RSPAN
ERSPAN
MRPP
IEEE802.1Q, 4K VLAN
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control
IGMP v1/v2/v3 Snooping and L2 Query
ND Snooping
MLDv1/v2 Snooping
Port Security
Flow Control: HOL, IEEE802.3x
Bandwidth Control

Security Network Management

CLI, WEB GUI, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6
Syslog and external Syslog Server HTTP SSL
SNMP MIB, SNMP TRAP
FTP/TFTP/HTTP
SNTP/NTP
RMOM 1,2,3,9
Authentication by Radius/TACACS
SSH v1/v2
Dual firmware images/ Configuration files
802.3ah OAM, 802.1ag OAM

GREEN Features

IEEE 802.3az (Energy Efficient Ethernet)
Auto FAN Speed Control, Temperature Alarm
LED Shut-Off

https://www.commandonetworks.com/switches/C3500-24X
1

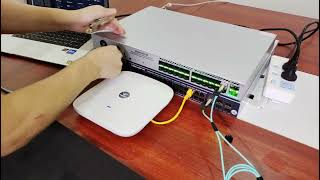

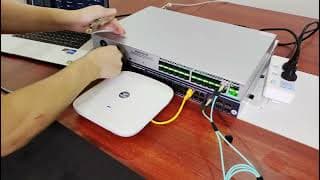

C3500-24X+2C -- COMMANDO Marshall C3500 24x10G SFP+, 2x100G QSFP28 Uplinks, Fiber Routing Switch
15 Sep 2023
2

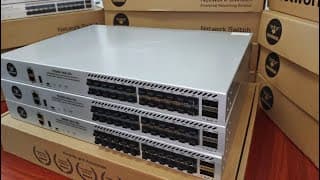

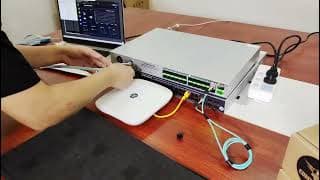

C3500-24X+2Q -- COMMANDO Marshall C3500 24x10G SFP+, 2x40G QSFP+ Uplinks, Fiber Routing Switch
15 Sep 2023
3
C3500-24X -- COMMANDO Marshall C3500 24x10G SFP+, Fiber Routing Switch
15 Sep 2023
4

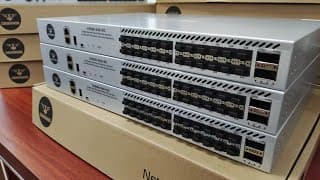

C3500-24X+2C -- COMMANDO Marshall C3500 24x 10G SFP+, 2x 100G QSFP28 Uplinks, Fiber Routing Switch
23 May 2022
5
C3500-24X+2Q -- COMMANDO Marshall C3500 24x 10G SFP+, 2x 40G QSFP+ Uplinks, Fiber Routing Switch
23 May 2022
6

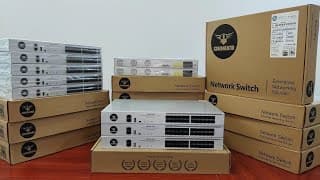

C3500-24X -- COMMANDO Marshall C3500 24x 10G SFP+, Fiber Routing Switch --Core & Data Center Switch
