• 48 x 10/100/1000Mbps Ethernet ports
• 6 x 10G SFP+ Uplink ports
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB 2.0 Storage port
• Switching Capacity: 216 Gbps
• Thunder Protection: ±6 KV
• Power: 100W
• 2 Temperature Control Fans
• Power Supply: AC
• AC: 100~240V 50/60Hz
• SoldierOS L3 IP Base Software Feature Set

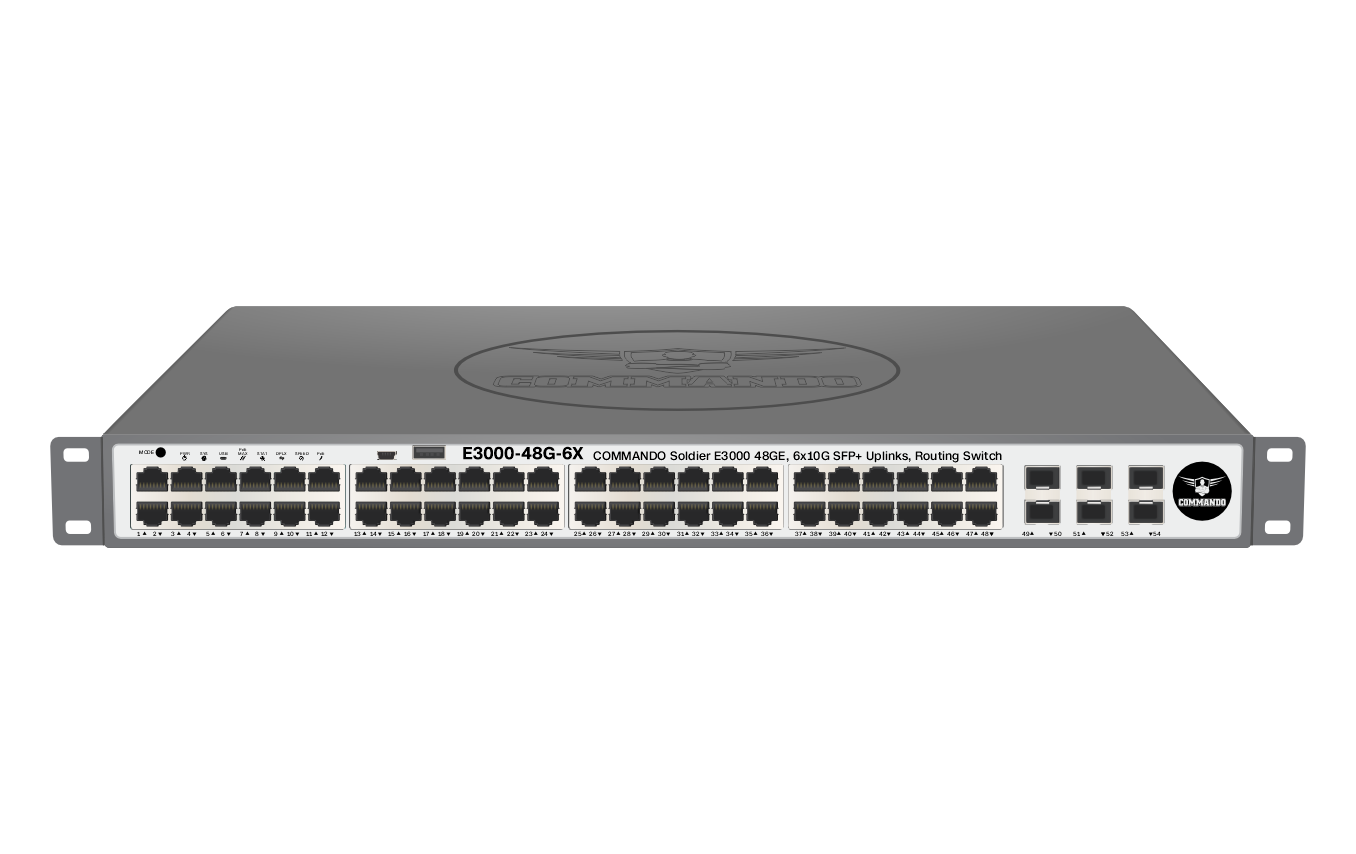

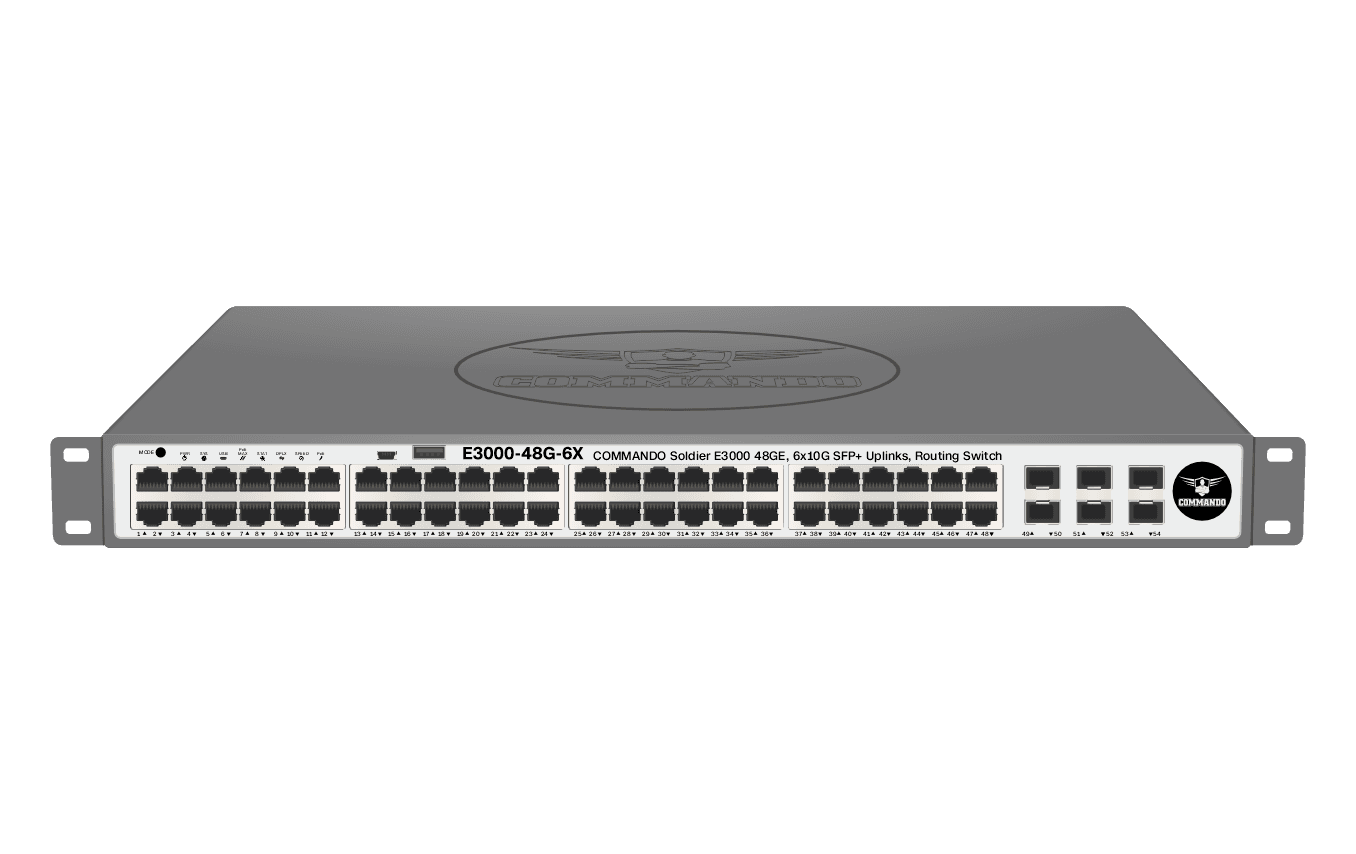

• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch
• 2-Year Warranty, Extendable to 3 Years
SOFTWARE HIGHLIGHTS
L3 Features
• Static Route
• Dynamic Routing, RIPv1/v2, OSPF v1/v2
• Policy-based Routing (PBR) for IPv4 and IPv6
• VRRP
• IGMP v1/v2/v3, IGMP Proxy
• Static Multicast Route
• Multicast Receive Control
• Illegal Multicast Source Detect
• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
• Dynamic ARP Inspection (DAI)
• DNS Server, Client, DNS Relay
IPv6 Features
• ICMPv6, ND, DNSv6
• MLD Snooping, IPv6 Multicast VLAN
• MLDv1/v2, IPv6 ACL, IPv6 QoS
QoS
• 13 Queues
• SP, WRR
• Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number
• Traffic Policing
• PRI Mark/Remark
• Surveillance VLAN
ACL
• IP ACL, MAC ACL, IP-MAC ACL
• Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol,
• TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
• REDIRECT and Accounting based ACL
• Rules can be configured to port, VLAN, VLAN routing interfaces
• Time Ranged ACL
Security
• 802.1x AAA
• Port, MAC based authentication
• Accounting based on time length and traffic
• Guest VLAN and auto VLAN
• RADIUS for IPv4 and IPv6
• TACACS+ for IPv4 and IPv6
DHCPv4/v6 Traffic Monitor
• DHCP Server/Client for IPv4/IPv6
• DHCP Relay/Option 82
• DHCP Snooping/Option 82
Tunneling
• L3 GRE
• 6 to 4
• ISATAP
• IP-in-IP
• Configured Tunnel
L1, L2 Features
• IEEE802.3(10Base-T)
• IEEE802.3u(100Base-TX)
• IEEE802.3z(1000BASE-X)
• IEEE802.3ab(1000Base-T)
• IEEE802.3ae(10GBase), IEEE802.3x
• IEEE802.3an (10GBASE-T)
• Port loopback detection
• LLDP and LLDP-MED
• UDLD
• 802.3ad LACP, 26 Trunk group with max 8 ports
• LACP load balance
• N:1 Port Mirroring
• RSPAN
• ERSPAN
• IEEEE802.1d(STP)
• IEEEE802.1w(RSTP)
• IEEEE802.1s(MSTP)
• Root Guard
• BPDU Guard
• BPDU Tunnel
• IP Source Guard
• 802.1Q, 4K VLAN
• MAC VLAN, Voice VLAN, Protocol VLAN, Multicast VLAN
• QinQ, Selective QinQ, Flexible QinQ
• GVRP
• N:1 VLAN Translation
• Broadcast / Multicast / Unicast Storm Control
• IGMP v1/v2/v3 Snooping and L2 Query
• ND Snooping
• MLDv1/v2 Snooping
• Port Security
• Flow Control: HOL, IEEE802.3x
• Bandwidth Control
Traffic Monitor
Security Network Management
• CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6
• Syslog and external Syslog Server HTTP SSL
• SNMP MIB, SNMP TRAP
• FTP/TFTP
• SNTP/NTP
• RMON 1,2,3,9
• Authentication by Radius/TACACS
• SSH v1/v2
• Dual firmware images/ Configuration files
GREEN Features
• IEEE 802.3az (Energy Efficient Ethernet)
• Auto FAN Speed Control, Temperature Alarm
• LED Shut-Off
MIB (Management Information Base) counters
• TCP/IP-based MIB-II (RFC 1213)
• Ethernet-like MIB (RFC 3635)
• Interface Group MIB (RFC 2863)
• RMON (Remote Network Monitoring) MIB (RFC 2819)
• Bridge MIB (RFC 1493)
• Bridge MIB Extension (RFC 2674)
