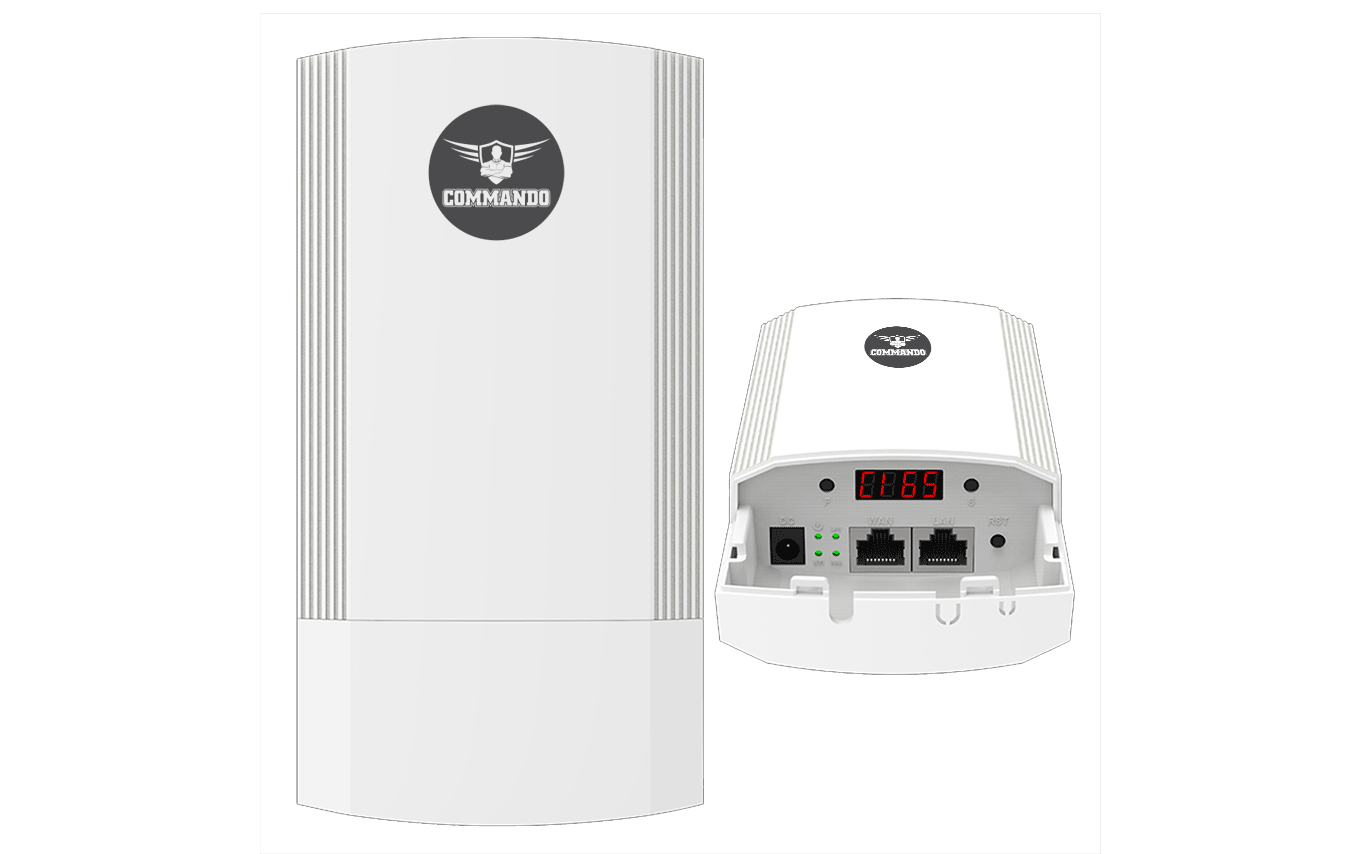

AIR-CPE1K+

COMMANDO AirONE 1KM+, 300Mbps, 2.4GHz, 802.11n, MIMO, Wireless Bridge

Click on image to expanded

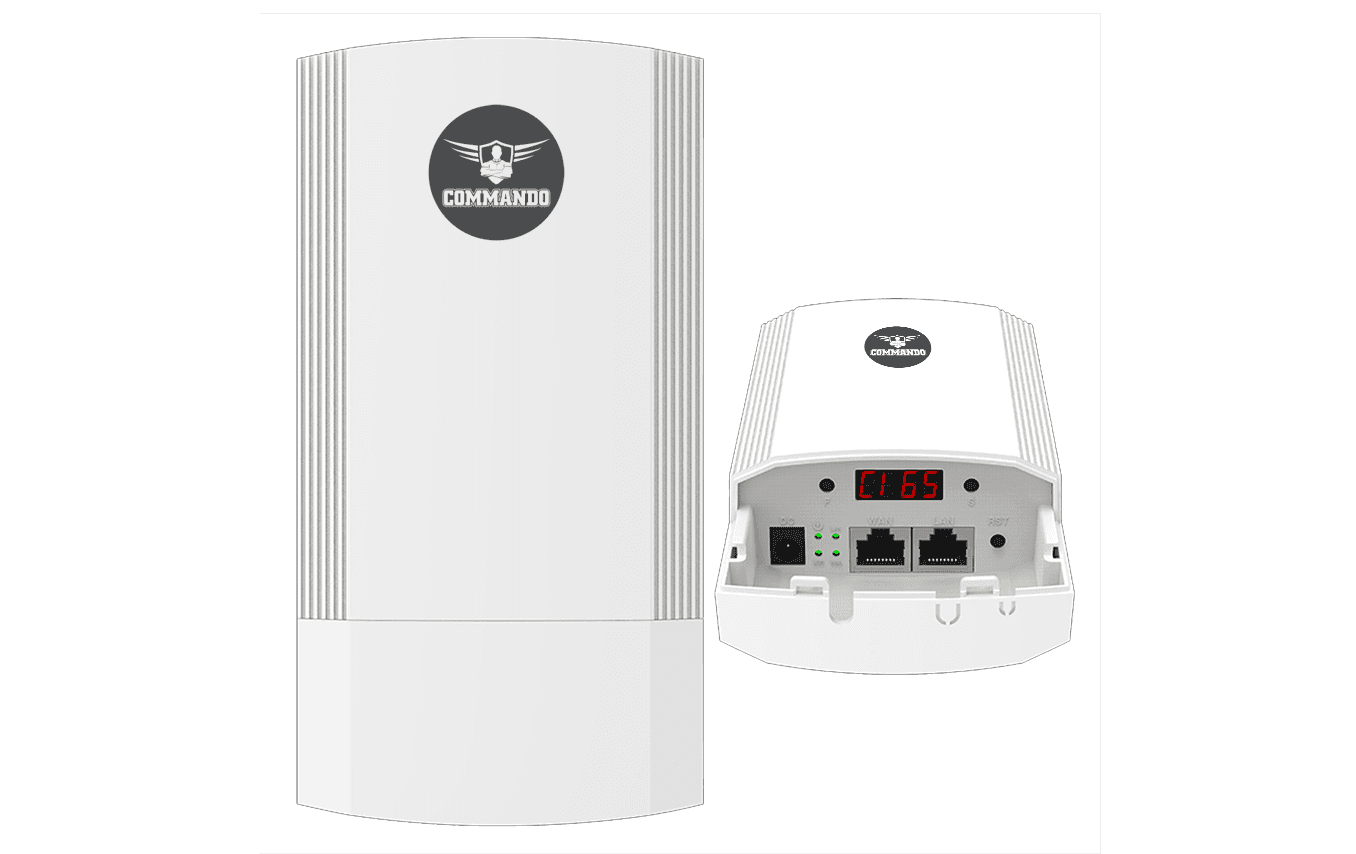

AIR-CPE1K+

COMMANDO AirONE 1KM+, 300Mbps, 2.4GHz, 802.11n, MIMO, Wireless Bridge

4 in 1 Operation Mode Wireless AP, Gateway, Wireless Bridge & Super WDS, Supports HI-MAX TDMA Technology, Support Multi SSID up to 4, Support Beamforming Technology, MIMO High Gain Omni 11dBi Internal Antenna, 802.11N, 2T2R 300M MIMO Technology, 8MB Flash, 64M DDR2 RAM, Support 24V Passive PoE

Information

AIR-CPEO1K+ is a 300Mbps outdoor wireless CPE/Bridge, Build in 8dBi Omni antenna, 1KM+ Outdoor Wi-Fi Distance Coverage. It supports Wireless AP, Gateway, Wireless Bridge & Super WDS Operation Mode, effective solution for outdoor Wi-Fi coverage application. With an outdoor waterproof and dustproof enclosure, built in lighting protection IC, support 24V passive PoE, 2T2R 300M MIMO Technology, 300Mbps high speed, integrated IEEE 802.3af PoE Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available.

At-a-Glance

  • 300Mbps outdoor wireless CPE/Bridge
  • 4 in 1 Operation Mode Wireless
  • Support Multi SSID up to 4
  • Supports PTP/PTMP Distance up to 1000 meters.
  • Support WDS PTP/PTMP connection by LED display configuration
  • Supports HI-MAX TDMA Technology (Time-division multiple access)
  • Support 24V POE
  • Build in 11dBi Omni Antenna
  • 2T2R 802.11N, 300M MIMO Technology
  • Waterproof and Dustproof Enclosure
  • Support Beamforming Technology
  • With Wi-Fi Channel Analysis Tool

Features

AIR-CPE1K+ Supports HI-MAX TDMA Technology (use polling technique to solve the hidden node and resource waste problem between the CPE and base station, provide low latency, high throughput in PTP/PTMP application likes IP camera, long range Wi-Fi Transmission), Gateway, Wireless AP, WISP, WDS operation mode for all wireless coverage.

300Mbps High Data Rate, High Performance

AIR-CPE1K+ support Wireless AP, Gateway, Wireless Bridge, super WDS operation mode, to suit for variety application environment. LED display, easy to setup IP address, signal strength, Channel and WDS connection by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.


Time-division multiple access

Time-division multiple access (TDMA) is a channel access method for shared-medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots The users transmit in rapid succession, one after the other, each using its own time slot. This allows multiple stations to share the same transmission medium (e.g. radio frequency channel) while using only a part of its channel capacity


Power over Ethernet (PoE)

IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, 24V passive PoE Integrated, Plug and Play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.


Multiple Operation Mode for Multiple Application

Support Wireless AP, Gateway, Wireless Bridge & Super WDS to meet with different installation requirements, such as Gateway for home use, Wi-Fi Repeater to extend the exist Wi-Fi signal to more range

Specification

Hardware
ChipsetRealtek RTL8197FNT
Wireless802.11N, 2T2R 300M MIMO Technology
Memory64MB RAM
Flash8MB
Interface1 * 10/100Mbps RJ45 WAN Port
1 * 10/100Mbps RJ45 LAN Port
1 * LED display, show operation mode, channel, signal strength
1 * F(Function) switch button for LED display
1 * S(Select) button for LED display
1 * DC Injector
1 * Reset button, press 15 seconds to revert to default setting, press 1 second to finish LED display configuration
Antenna11dBi Panel Antenna, V: 60o L: 33o
LED LightPWR(Power), WAN, LAN, Wi-Fi
Size168mm*88mm*57.6mm
PowerPOE 24V/0.5A
RF Data
RF Data802.11b/g/n:
2.4GHz to 2.484GHz
Korea, Japan, ETSI, FCC, Debug
ModulationOFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Data Rate300Mbps
RF Power802.11b: 11M 18±2dBm, 1M 21±2dBm
802.11g: 54M 17±2dBm, 6M 20±2dBm
802.11n HT20: MCS7 16±2dBm, MCS0 19±2dBm
802.11n HT40: MCS7 15±2dBm, MCS0 18±2dBm
Receive Sensitivity802.11b: 11M -85dBm, 1M -94dBm
802.11g: 54M -72dBm, 6M -88dBm
802.11n HT20: MCS7 -68dBm, MCS0 86dBm
802.11n HT40: MCS7 -66dBm, MCS0 -85dBm
EVM11n: <=-28 DB
11g: <=-25 DB
11b: <=-10 DB
PPM±20ppm
