• 300Mbps wireless transmission rate.
• 2*2dBi high-performance PCB antenna.
• Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X.
• Supports Windows XP/Vista/win7/win8/win8.1/win10.
• With internal drive, it can automatically complete installation once plugged into your computer, releasing you from troublesome configuration.
• Free Driver.
Specifications
Chipset |
Realtek RTL8192FM |
Interface |
USB2.0 Hi-Speed connector |
Wireless Speed |
11n: Up to 300Mbps |
Frequency Range |
2.4-2.4835GHz |
Wireless Transmit Power |
20dBm(MAX EIRP) |
Modulation Technique |
OFDM/CCK/16-QAM/64-QAM |
Work Mod |
Ad-Hoc / Infrastructure |
Wireless Security |
64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Temperature Range |
Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC |
Humidity |
Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing) |
Support Operating System |
Windows XP/Vista/Linnux/ Win 7/Win 8 /Win8.1 /Win10 |

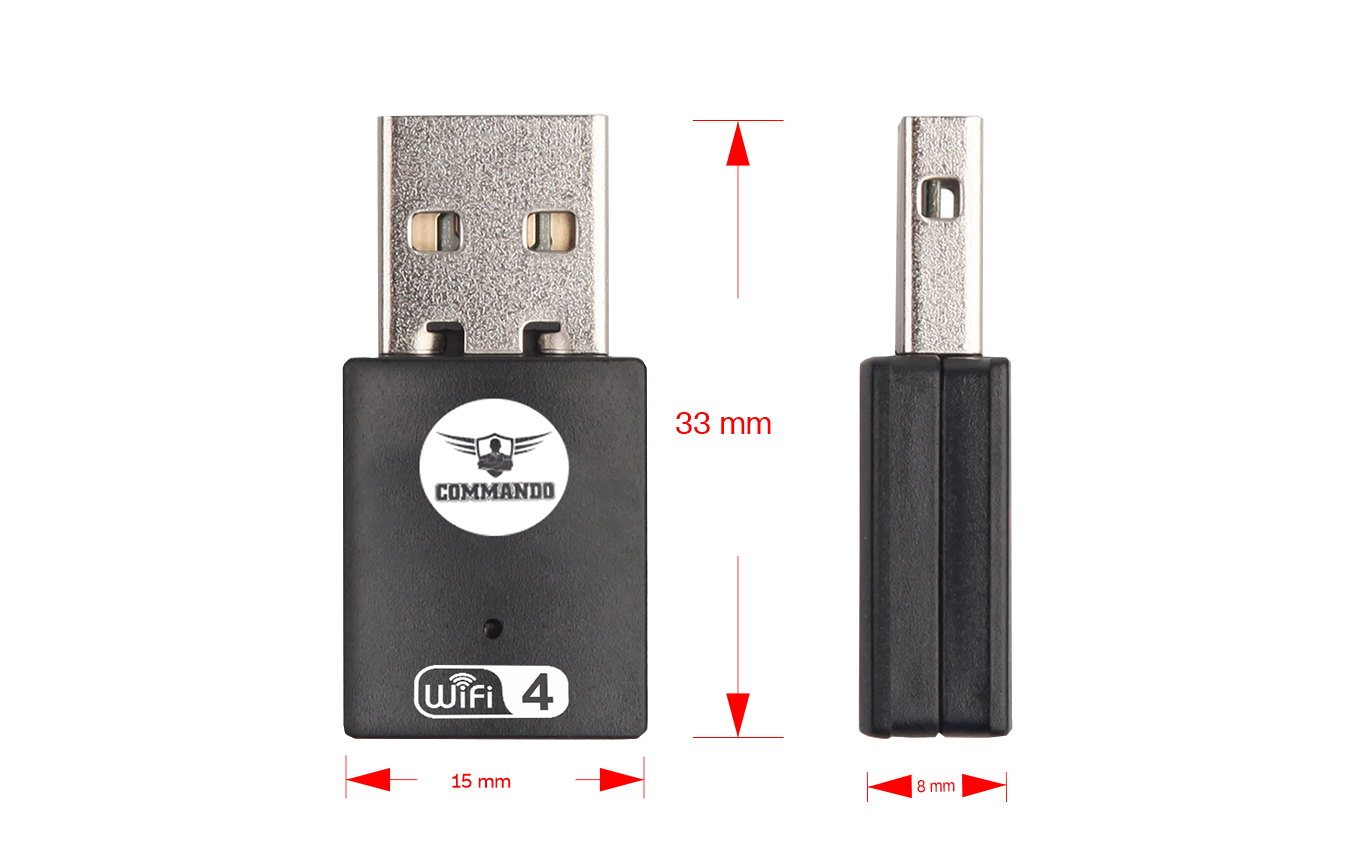

Dimensions (H x W x D) |
33 x 15x 8mm |
RF Performance Table for 2.4GHz
Data Rate |
TX Power |
Tolerance |
1Mbps |
16dBm |
±2dB |
11Mbps |
16dBm |
±2dB |
6Mbps |
15dBm |
±2dB |
54Mbps |
13dBm |
±2dB |
MCS0 |
14dBm |
±2dB |
MCS7 |
13dBm |
±2dB |
MCS8 |
13dBm |
±2dB |
MCS0 |
14dBm |
±2dB |
MCS9 |
13dBm |
±2dB |
Data Rate |
RX Specifcations Sensitivity |
Tolerance |
1Mbps |
-97dBm |
±2dB |
11Mbps |
-90dBm |
±2dB |
6Mbps |
-92dBm |
±2dB |
54Mbps |
-76dBm |
±2dB |
MCS0 |
-92dBm |
±2dB |
MCS7 |
-75dBm |
±2dB |
MCS8 |
-71dBm |
±2dB |
MCS0 |
-89dBm |
±2dB |
MCS9 |
-67dBm |
±2dB |
