AIR-WA1800AX

COMMANDO AirBULLET 1800Mbps, 802.11ax, Dual Band, Built-in FEM (PA+LNA), Wi-Fi 6 USB 3.0 Adapter

Product Highlights

• Wifi6

• 1800Mbps wireless transmission rate

• Dual band frequency 2.4GHz - 573.5Mbps, 5GHz - 1201Mbps

• DriverCD or download the driver online

• Built-in FEM (PA + LNA) module, creates stronger signal and wider signal receiving range.

• 1024-QAM high data rate Modulation delivers powerful, continuous Wi-Fi to fully unlock the potential of Wi-Fi 6 router.

• Supports Windows Windows 10 (32/64bits), Win11, Windows 7 (32/64bits).

• Seamlessly compatible with 802.11ax/ac/a/b/g/n devices

Specifications

Chipset	Realtek RTL8832AU
Interface	USB3.0 Hi-Speed connector
Wireless Speed	11n: Up to 573.5Mbps AC: Up to 1201Mbps
Frequency Range	2.4GHz & 5 GHz
Wireless Transmit Power	20dBm(MAX EIRP)
Modulation Technique	OFDM/CCK/16-QAM/64-QAM/1024-QAM
Work Mod	Ad-Hoc / Infrastructure
Wireless Security	64/128 bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Temperature Range	Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Support Operating System	Windows Win 7/Win10 /Win11

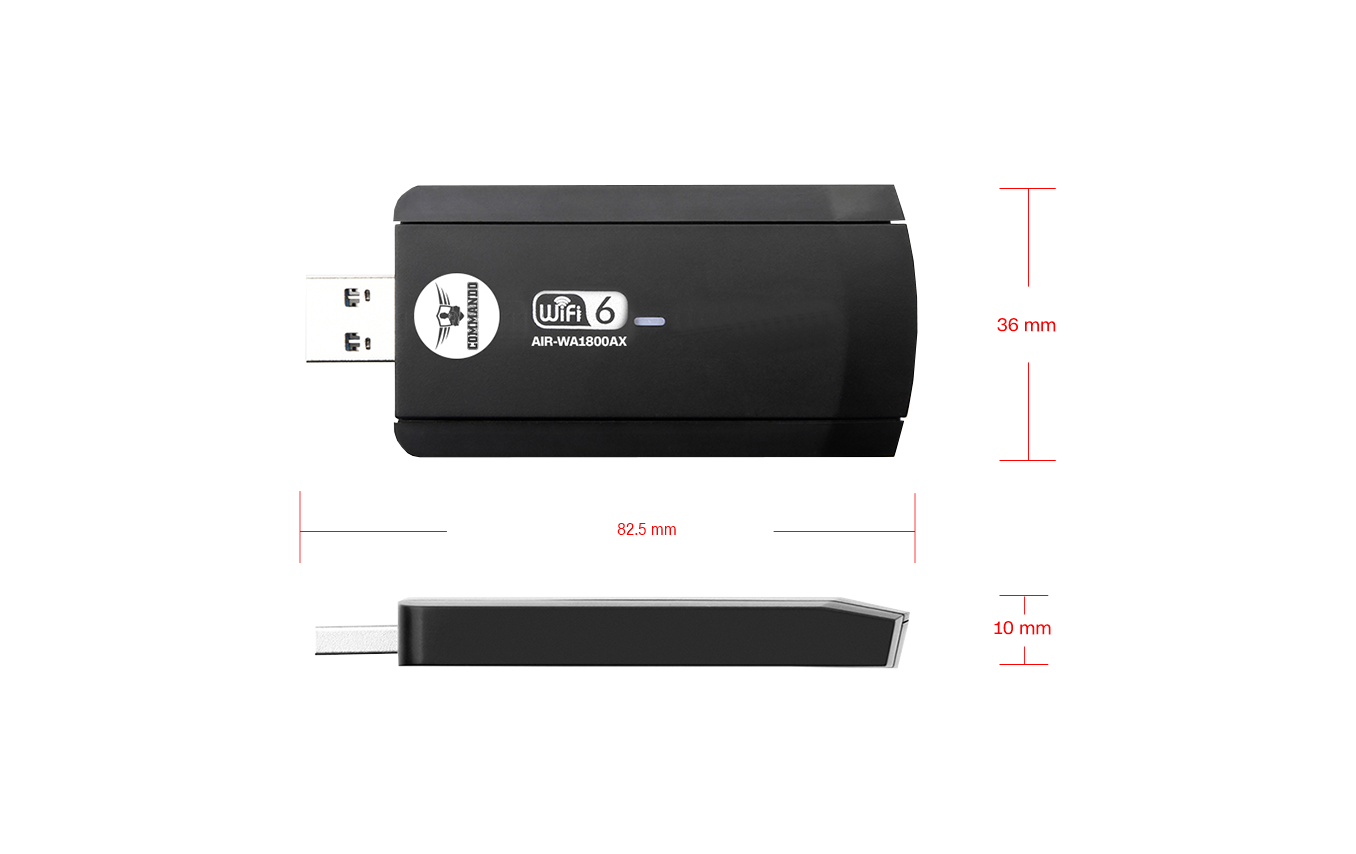

Dimensions (H x W x D)	82.5x36x10mm

RF Performance Table for 2.4GHz and 5.8GHz

Data Rate	TX Power	Tolerance
1Mbps	16dBm	±2dB
11Mbps	16dBm	±2dB
6Mbps	15dBm	±2dB
54Mbps	13dBm	±2dB
MCS0	14dBm	±2dB
MCS7	13dBm	±2dB
MCS8	13dBm	±2dB
MCS0	14dBm	±2dB
MCS9	13dBm	±2dB
MCS0	16dBm	±1.5dB
MCS11	13dBm	±1.5dB
MCS0	15dBm	±1.5dB
MCS11	13dBm	±1.5dB

Data Rate	RX Specifcations Sensitivity	Tolerance
1Mbps	-97dBm	±2dB
11Mbps	-90dBm	±2dB
6Mbps	-92dBm	±2dB
54Mbps	-76dBm	±2dB
MCS0	-92dBm	±2dB
MCS7	-75dBm	±2dB
MCS8	-71dBm	±2dB
MCS0	-89dBm	±2dB
MCS9	-67dBm	±2dB
6Mbps	-94dBm	±2dB
54Mbps	-78dBm	±2dB
MSC0	-89dBm	±2dB
MCS9	-64dBm	±2dB
MSC0	-82dBm	±2dB
MSC11	-51dBm	±2dB
