COMMANDO AirONE 300Mbps, 2.4GHz, 802.11n, MIMO, Multi-Mode, Business Outdoor Access Point
COMMANDO AirONE 300Mbps, 2.4GHz, 802.11n, MIMO, Multi-Mode, Business Outdoor Access Point
4 in 1 High Power Outdoor wireless Access Point, 300 Mbps, 64 Users, 2.4 GHz, MIMO High Gain Omni 5dBi Internal Antenna, 500mW high power, more than 300 meters Wi-Fi range, 16 MB Flash, 64 MB RAM, PoE Support, Operation Mode Gateway Mode, Wi-Fi Range Extender/Repeater Mode, WISP Mode (Wireless Internet Service Provider) & Access Point Mode

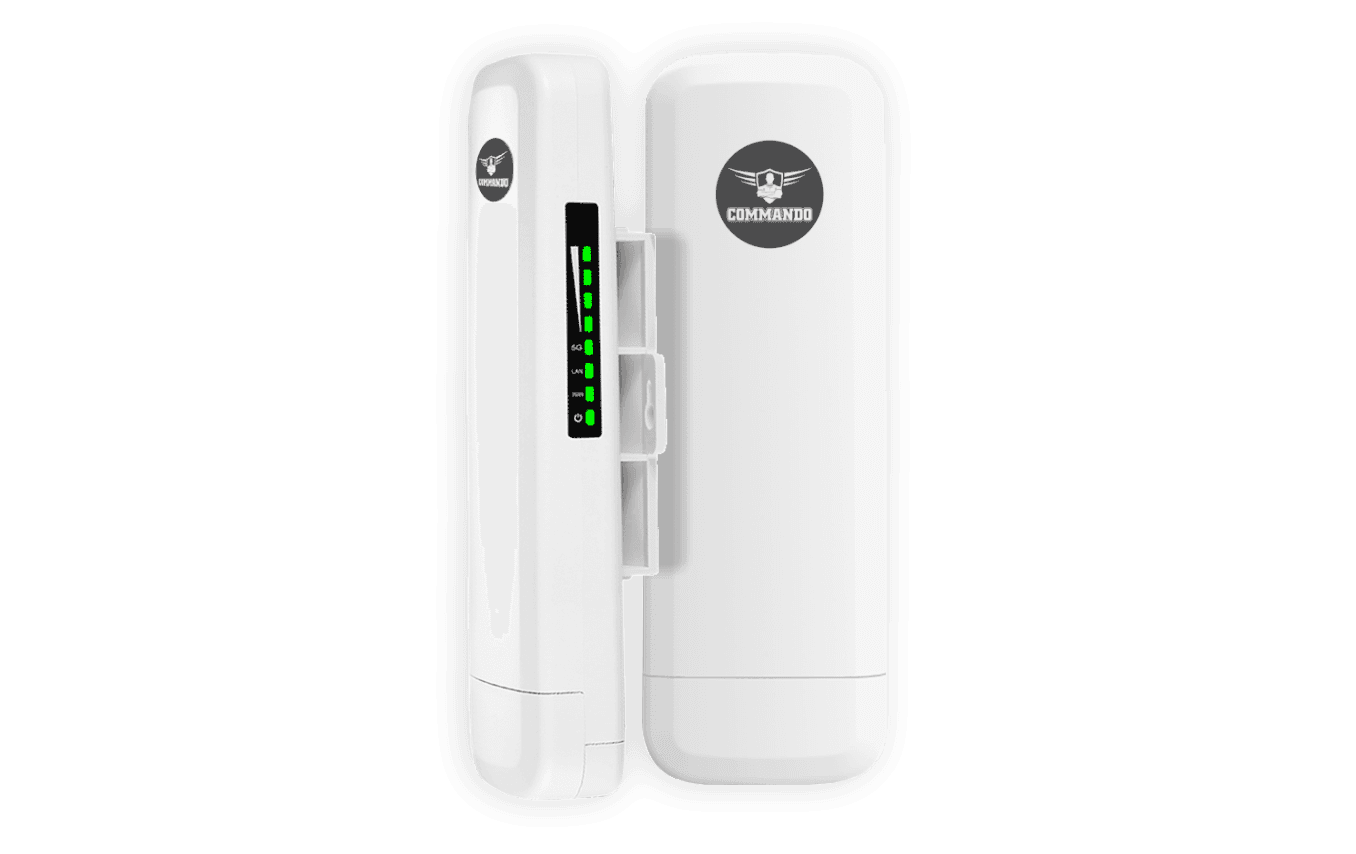

AIR-APO300 is a 300Mbps Outdoor wireless AP/CPE, build in 5dBi Omni antenna, more than 300 meters Outdoor Wi-Fi coverage. It supports Wireless AP, Gateway, WISP, Wireless Bridge operation mode, effective solution Outdoor Wi-Fi coverage application. With an Outdoor waterproof and dustproof enclosure, built in lighting protection IC, support 24V passive PoE, 2T2R 300M MIMO Technology, 300Mbps high speed, integrated IEEE 802.3af PoE Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available.
Equipped enterprise high performance, Comply IEEE 802.11n 2T2R MIMO Technology, 300Mbps high speed, allow all connected devices to achieve faster upload/download Ethernet. With powerful amplifier, improved the Wi-Fi range for some area with small quantity wireless AP, Can cut down RF power to suit for some high density wireless AP area to avoid Wi-Fi interference.
Power over Ethernet (PoE)Integrated IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, plug and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Multiple Operation Mode for Multiple ApplicationSupport Wireless AP, Gateway, Wi-Fi Repeater to meet with different installation requirements, such as Gateway for home use, Wi-Fi Repeater to extend the exist Wi-Fi signal to more range
Multi SSID, Tag VLAN, AC Controller Centralized Management, Cloud Server Captive Portal AuthenticationSupport Multi SSID up to 4, each SSID support tag VLAN for User isolation. Work with WLAN Controller, centralized configuration in IP address, SSID, Password, Tag VLAN, RF power adjustable, then remote management, easy to achieve Wi-Fi Coverage and maintenance. Besides that, access into cloud server to do advertisement and Captive Portal authentication guest, to create more business value.
| Hardware | |
|---|---|
| Wireless | 802.11n, 2T2R 300Mbps MIMO Technology |
| Interface | 2*10/100Mbps RJ45 Ports 1* Reset Button to restore factory default 1*DC Port |
| Antenna | 2.4GHz MIMO High Gain Omni 5dBi Internal Antenna |
| LED Light | POWER Wi-Fi WAN LAN S1(GPIO9) S2(GPIO14) S3(GPIO11) S4(GPIO12) |
| Size | L 257mm , W: 87mm, H: 38 mm |
| Power | 12V(POE 24V)/1A;110V/220V |
| RF Data | |
| RF Data | 802.11b/g/n, 2.312GHz to 2.4835GHz Korea, Japan, ETSI, FCC |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK |
| Data Rate | 300 Mbps |
| Receive Sensitivity | 802.11n: -88dbm@MCS0,-70dbm@MCS7 802.11g: -88dbm@6Mbps;-70 dbm@54Mbps 802.11b: -94 dbm@1Mbps; -85 dbm@11Mbps |
| RF Output Power | 802.11n:24±2 DB 802.11g:24±2 DB 802.11b:26±2 DB |
| EVM | 802.11n: <=-28 DB 802.11g: <=-25 DB 802.11b: <=-10 DB |
| User QTY | 64 |
| Firmware | |
| Operation Mode | Gateway/AP/Wi-Fi Repeater/WISP |
| Protocol/Standard | IEEE 802.3(Ethernet) IEEE 802.3u(Fast Ethernet) IEEE 802.11b/g/n(2.4G WLAN) |
| Wireless | Auto-Channel selection Distance Control (802.1x Ack timeout) Multiple SSID (4 SSID) BSSID |
| Security | WEP Encryption-64/128/152 bit WPA/WPA2 Personal (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise (WPA-EAP using TKIP) Hide SSID |
| System Setting | Web-based configuration (HTTP/Telnet) |
| Firmware upgrade | Upgrade firmware via web browser or TFTP |
| Administration | Admin Password can be configured |
| System monitoring | Status in hand , useful statistic and Event log |
| Log | Supports local logs, logs host, logs file export |
| Reset | Reset or factory defaults |
| Backup | Restore settings & configuration of the device to local file |
| Physical Property | |
| Temperature | Working: -20°C~55°C Storage: -40°C to 70°C |
| Humidity | 5%~95% (typical) |
