Information

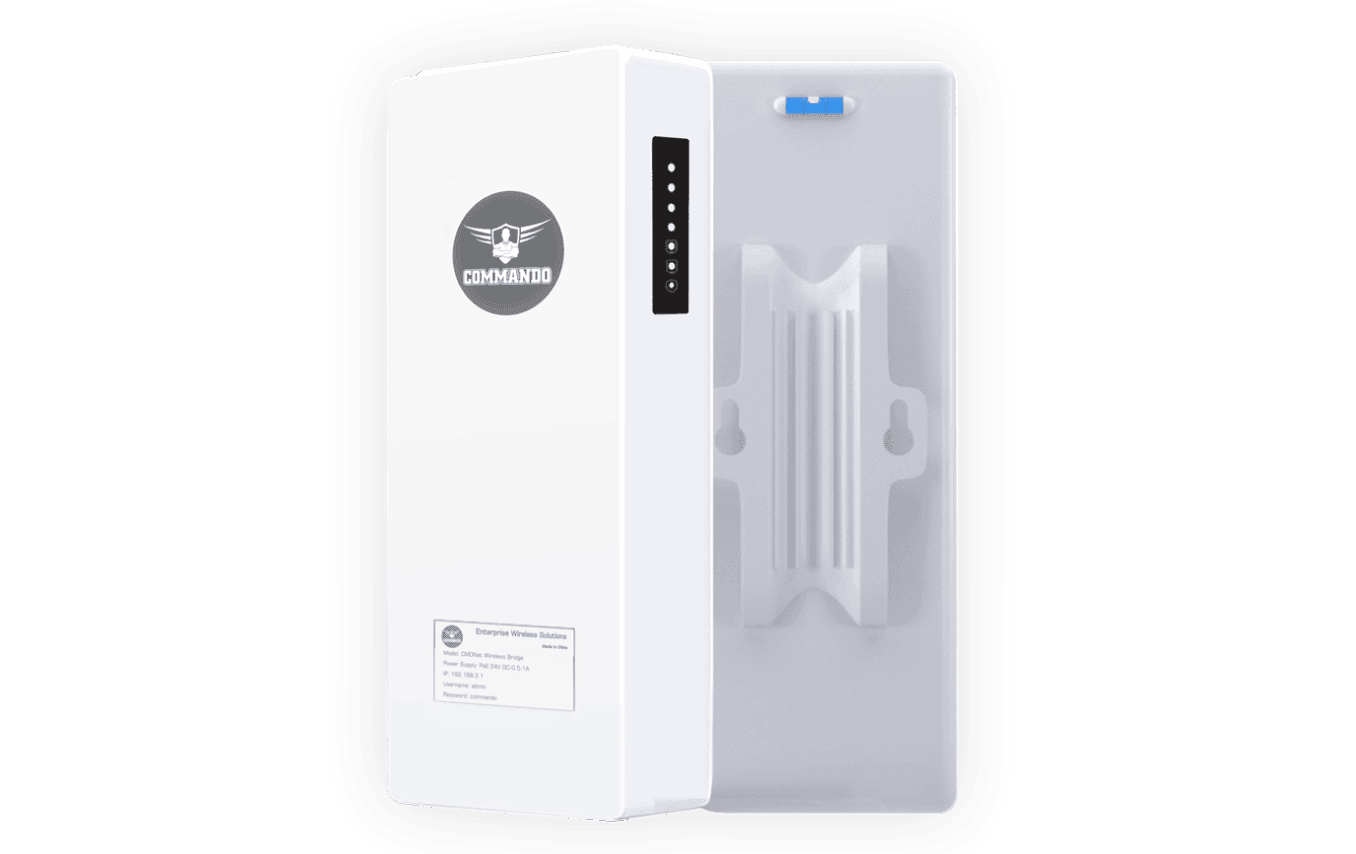

AIR-WB5G-10K is a 900Mbps outdoor wireless Bridge, Build in 14dBi 2 High Gain Directional antenna, 10KM Outdoor Wi-Fi Distance Coverage, effective solution for outdoor Wi-Fi coverage application. With an outdoor waterproof and dustproof enclosure, built in lighting protection IC, support 24V passive PoE, 2T2R MIMO Technology, 900Mbps high speed, integrated IEEE 802.3af PoE Power over Ethernet (PoE), it can be installed in areas where power outlets are not readily available.
At-a-Glance
- 900Mbps outdoor wireless Bridge
- 2 MIMO 14dBi Internal Directional Antennas
- Wireless Power 300mW / 24.77dBm
- Support Multi SSID up to 4
- Supports PTP/PTMP Distance up to 10KM
- Support WDS PTP/PTMP connection by LED display configuration
- Supports HI-MAX TDMA Technology (Time-division multiple access)
- Support 24V POE
- 2T2R 802.11ac, 900M MIMO Technology
- Waterproof and Dustproof Enclosure
- Beamforming Technology
- With Wi-Fi Channel Analysis Tool
Features
AIR-WB5G-10K Supports HI-MAX TDMA Technology (use polling technique to solve the hidden node and resource waste problem between the CPE and base station, provide low latency, high throughput in PTP/PTMP application likes IP camera, long range Wi-Fi Transmission), Gateway, Wireless AP, WISP, WDS operation mode for all wireless coverage.
900Mbps High Data Rate, High Performance
AIR-WB5G-10K supports Wireless AP, Gateway, and Wireless Bridge, super WDS operation mode, to suit for variety application environment. LED display, easy to setup IP address, signal strength, Channel and WDS connection by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
Time-division multiple access
Time-division Multiple Access (TDMA) is a channel access method for shared-medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots
The users transmit in rapid succession, one after the other, each using its own time slot. This allows multiple stations to share the same transmission medium (e.g. radio frequency channel) while using only a part of its channel capacity
Power over Ethernet (PoE)
IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, 24V passive PoE Integrated, Plug and Play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Specification
