E1000 Series Switches

COMMANDO Scout E1000 Series Unmanaged Switches

Data Sheet Gallery YouTube

COMMANDO Scout E1000 Series Unmanaged Switches

  • 8 to 48 x 10/100Mbps or 10/100/1000Mbps Ethernet Ports along with fixed 1G fiber/1G copper Uplinks and PoE/PoE+ and non PoE Models.
  • Extra 2/4 Ports slots with separate, fixed 1G Fiber/ 1GE Copper Switchports or Uplinks.
  • Power over Ethernet (PoE) / Power over Ethernet plus (PoE+) models to provide power on all ports to IEEE 802.3af and IEEE 802.3at (15.4W, 30W) capable devices including Wireless AP, Bridges, IoT etc. according to the power budget Up to 600 W along with backward compatibility.
  • All ports have PoE/PoE+ capability and 30W Max Per port.
  • PD detection will automatically detect and provide required power for your PoE/PoE+ devices.
  • Automatically adjust the PoE/PoE+ power for connected PoE devices based on the cable length and supports up to 250m of copper cable length.
  • Backplane Bandwidth: 5.6Gbps-104Gbps
  • MAC address Table: 8000 entries
  • MAC Address Auto-Learning and Auto-Aging
  • Easy Installation, Plug-and-play installation with no configuration required
  • Support Store-and-forward Switching
  • Enclosure Type Desktop, Rack/Wall mountable - 1U.
  • Surge protection ±4 kV
...read more
1

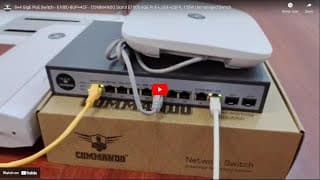

E1000-8GP+4CF -- COMMANDO Scout E1000 8GE PoE+, 2GE+2SFP Uplinks, 150W, Unmanaged Switch
10 Feb 2023
2

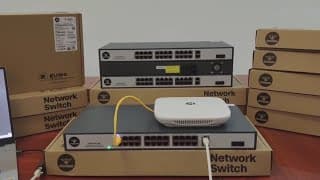

E1000-24GP+4CF -- COMMANDO Scout E1000 24GE PoE+, 2GE+2SFP Uplinks, 450W, Unmanaged Switch
01 Feb 2023
3

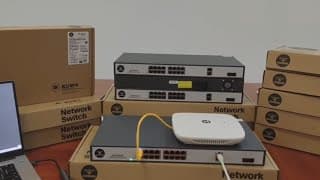

E1000-16GP+4CF -- COMMANDO Scout E1000 16GE PoE+, 2GE+2SFP Uplinks, 260W, Unmanaged Switch
01 Feb 2023
4

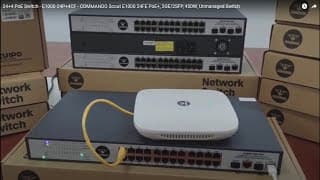

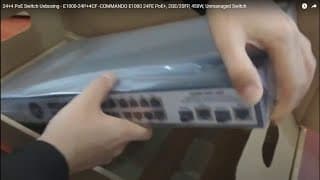

E1000-24P+4CF -- COMMANDO Scout E1000 24FE PoE+, 2GE/2SFP Combo Uplinks, 450W, Unmanaged Switch
01 Feb 2023
5
E1000-24P+4CF -- COMMANDO Scout E1000 24FE PoE+, 2GE/2SFP Combo Uplinks, 450W, Unmanaged Switch
01 Feb 2023
6

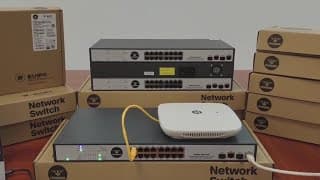

E1000-16P+4CF -- COMMANDO Scout E1000 16FE PoE+, 2GE/2SFP Combo Uplinks, 260W, Unmanaged Switch
01 Feb 2023
7

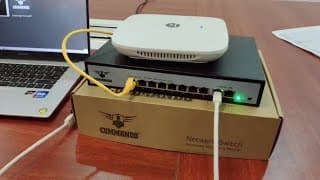

E1000-8P+2FE -- COMMANDO Scout E1000 8FE PoE+, 2FE Uplinks, 150W, Unmanaged Switch - 8+2 PoE Switch
01 Feb 2023
8

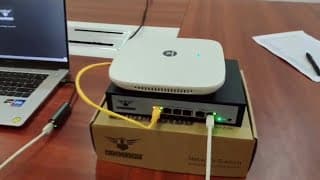

E1000-4P+2FE -- COMMANDO Scout E1000 4FE PoE+, 2FE Uplinks, 75W, Unmanaged Switch -- 4+2 PoE Switch
01 Feb 2023

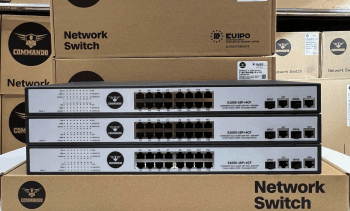

E1000-16P+4CF

COMMANDO Scout E1000 16FE Full PoE/PoE+, 2GE/2SFP Combo Uplinks, 260W, Unmanaged Switch


16 x 10/100Mbps Ethernet PoE+ ports
2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
16 x IEEE802.3af 15.4W PoE ports
8 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 7.2 Gbps
Thunder Protection: ±4 KV
Power: 260W
1 Fan
Power Supply: AC
AC: 180~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/

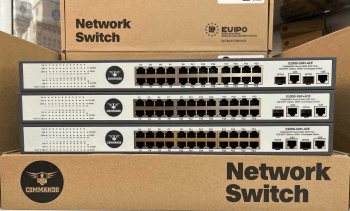

E1000-24P+4CF

COMMANDO Scout E1000 24FE Full PoE/PoE+, 2GE/2SFP Combo Uplinks, 450W, Unmanaged Switch


24 x 10/100Mbps Ethernet PoE+ ports
2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
16 x IEEE802.3af 15.4W PoE ports
8 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 8.8 Gbps
Thunder Protection: ±4 KV
Power: 450W
1 Fan
Power Supply: AC
AC: 180~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
E1000-48P+8CF

COMMANDO Scout E1000 48FE PoE+, 4GE/4SFP Combo Uplinks, 600W, Unmanaged Switch


48 x 10/100Mbps Ethernet PoE+ ports
4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
38 x IEEE802.3af 15.4W PoE ports
18 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 13.6 Gbps
Thunder Protection: ±4 KV
Power: 600W
3 Fans
Power Supply: AC
AC: 180~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
E1000-8P+4CF

COMMANDO Scout E1000 8FE Full PoE/PoE+, 2GE/2SFP Combo Uplinks, 150W, Unmanaged Switch


8 x 10/100Mbps Ethernet PoE+ ports
2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
8 x IEEE802.3af 15.4W PoE ports
4 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 5.6 Gbps
Thunder Protection: ±4 KV
Power: 150W
Power Supply: AC
AC: 100~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
E1000-8G+4CF

COMMANDO Scout E1000 8GE, 2GE+2SFP Uplinks, Unmanaged Switch


8 x 10/100/1000Mbps Ethernet ports
2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
Switching Capacity: 24 Gbps
Thunder Protection: ±4 KV
Power: 24W
Power Supply: AC
AC: 100~240V 50/60Hz
Gigabit Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
E1000-16G+4CF

COMMANDO Scout E1000 16GE, 2GE+2SFP Uplinks, Unmanaged Switch


16 x 10/100/1000Mbps Ethernet ports
2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
Switching Capacity: 40 Gbps
Thunder Protection: ±4 KV
Power: 24W
Power Supply: AC
AC: 100~240V 50/60Hz
Gigabit Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
E1000-24G+4CF

COMMANDO Scout E1000 24GE, 2GE+2SFP Uplinks, Unmanaged Switch


24 x 10/100/1000Mbps Ethernet ports
2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
Switching Capacity: 56 Gbps
Thunder Protection: ±4 KV
Power: 24W
Power Supply: AC
AC: 100~240V 50/60Hz
Gigabit Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/

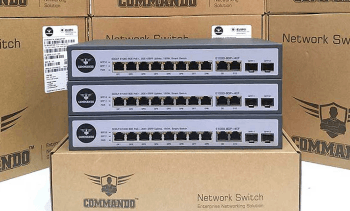

E1000-8GP+4CF

COMMANDO Scout E1000 8GE Full PoE/PoE+, 2GE+2SFP Uplinks, 150W, Unmanaged Switch


8 x 10/100/1000Mbps Ethernet PoE+ ports
2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
8 x IEEE802.3af 15.4W PoE ports
4 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 24 Gbps
Thunder Protection: ±4 KV
Power: 150W
Power Supply: AC
AC: 100~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/

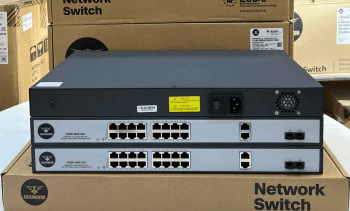

E1000-16GP+4CF

COMMANDO Scout E1000 16GE Full PoE/PoE+, 2GE+2SFP Uplinks, 260W, Unmanaged Switch


16 x 10/100/1000Mbps Ethernet PoE+ ports
2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
16 x IEEE802.3af 15.4W PoE ports
8 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 40 Gbps
Thunder Protection: ±4 KV
Power: 260W
1 Fan
Power Supply: AC
AC: 180~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/

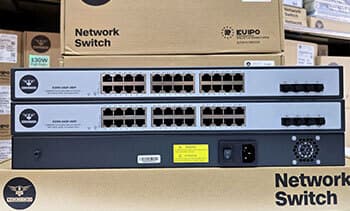

E1000-24GP+4CF

COMMANDO Scout E1000 24GE Full PoE/PoE+, 2GE+2SFP Uplinks, 450W, Unmanaged Switch


24 x 10/100/1000Mbps Ethernet PoE+ ports
2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
24 x IEEE802.3af 15.4W PoE ports
12 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 56 Gbps
Thunder Protection: ±4 KV
Power: 450W
1 Fan
Power Supply: AC
AC: 180~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
E1000-48GP+8CF

COMMANDO Scout E1000 48GE PoE/PoE+, 2GE+2SFP Uplinks, 600W, Unmanaged Switch


48 x 10/100/1000Mbps Ethernet PoE+ ports
4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
38 x IEEE802.3af 15.4W PoE ports
18 x IEEE802.3at 30W PoE+ ports
Switching Capacity: 104 Gbps
Thunder Protection: ±4 KV
Power: 600W
3 Fans
Power Supply: AC
AC: 180~240V 50/60Hz
Gigabit PoE+ Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
E1000-48G+8CF

COMMANDO Scout E1000 48GE, 4GE/4SFP Combo Uplinks, Unmanaged Switch


48 x 10/100/1000Mbps Ethernet ports
4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
Switching Capacity: 104 Gbps
Thunder Protection: ±4 KV
Power: 48W
1 Fan
Power Supply: AC
AC: 100~240V 50/60Hz
Gigabit Unmanaged Switch
3 Year Extendable Warranty

https://www.commandonetworks.com/switches/
