COMMANDO AirONE Wireless Series

Super Wds mode where bridge can act as Ap+ Gateway+ Mesh+ Repeater+ Bridge, all in one at a same time with up to 4 bridges connected at a same time. All bridges act as master and slave simultaneously. With this Super WDS meshing of bridges makes network failure rate to zero. It enables communication between wireless and wired computers/laptops and mobile devices in the network. It complies with IEEE 802.11ac standard and is backward compatible with IEEE 802.11b/g/n standard along with build in MIMO High Gain 18/15/11 dBi Internal Antenna as per model. All Bridges Supports HI-MAX TDMA Technology which use polling technique to solve the hidden node and resource waste problem between the CPE and base station. It provides low latency, high throughput in PTP/PTMP/MTMP application likes IP camera, long range Wi-Fi Transmission) with Beamforming Technology.

eparate Gigabit 1 WAN & 1 LAN port IP65 Waterproof and Dust proof Enclosure casing. It enables the connection of two or more different local area network (LAN) segments by bridging a wireless connection between them. It works much like a wired network bridge and is used to connect LANs that are logically separated and/or located in different physical locations. It is primarily used in corporate LANs, which often span across geographical locations. At the back-end the wireless bridges are connected to the LAN switch or router. For the two network segments to communicate, each data packet travels from the local Ethernet/router to the wireless bridge, which wireless broadcasts it to the wireless bridge of the other LAN segment.

1

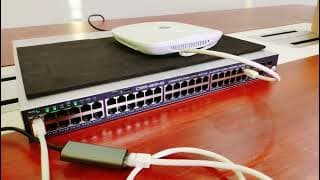

AIR-AP1200 -- COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point
19 Sep 2023
2

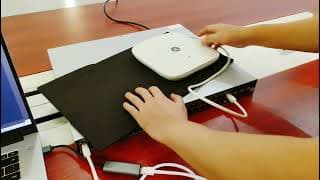

AIR-AP750 -- COMMANDO AirONE 750Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point
19 Sep 2023
3
AIR-AP300 -- COMMANDO AirONE 300Mbps, 2.4GHz, 802.11n, MIMO, Indoor Access Point
19 Sep 2023
4
How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB-1K / AIR-CPE1K+, 802.11n
03 Feb 2023
5
How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-WB5G-10K / AIR-CPE10K+, 900Mbps
03 Feb 2023
6
How to Install and Configure Wireless Bridge - COMMANDO AirONE AIR-CPE10K+ / AIR-WB5G-10K, 900Mbps
01 Feb 2023
7
How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP750 750M 802.11ac
01 Feb 2023
8
How to Install and Configure Outdoor Access Point - COMMANDO AirONE AIR-APO1200, 1200Mbps, 802.11ac
30 Jan 2023
9
How to Install and Configure Ceiling Wireless Access Point - COMMANDO AirONE AIR-AP300, 802.11n
23 Jan 2023
10
How to Install and Configure Wi-Fi 6 Wireless Access Point - COMMANDO AirONE AIR-AP1800AX 1800Mbps
16 Jan 2023
AIR-AP300

COMMANDO AirONE 300Mbps, 2.4GHz, 802.11n, MIMO, Indoor Access Point


Highlights

Operation Modes: AP, Gateway, WISP, Repeater Modes
Wireless data rate: 300Mbps
Distance covered: Up to 45 Meters
Users Supported: Access end users 64 max, concurrent end users 50
Technology Supported: -
Max. SSID: 4
Encryption: WPA/WPA2PSK_TKIPAES
Standard: IEEE802.11N/G/B
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Frequency Band: 2.4GHz
WAN: 1x 10/100Mbps WAN
LAN: 1x 10/100Mbps LAN
DC: DC:12V, 1A
PoE Power: WAN Port 48V, 802.3af POE
AP: Standalone
Flash: 16MB
RAM: 128MB
RF Power: ≤27dBm
Dimensions: 168mmX168mmX32mm
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-AP300
AIR-AP750

COMMANDO AirONE 750Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point


Highlights

Operation Modes: AP, Gateway, WISP, Repeater Modes
Wireless data rate: 300Mbps + 450Mbps
Distance covered: Up to 91 Meters
Users Supported: Access end users 128 max, concurrent end users 90
Technology Supported: -
Max. SSID: 8
Encryptio: WPA/WPA2PSK_TKIPAES
Standard: IEEE802.11AC/N/G/B
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Frequency Band: 2.4GHz+5GHz
WAN: 1x 10/100Mbps WAN
LAN: 1x 10/100Mbps LAN
DC: 12V, 1.5A
PoE Power: WAN Port 48V 802.3at POE+
AP: Standalone
Flash: 16MB
RAM: 128MB
RF Power: ≤ ≤ ≤27dBm
Dimensions: 188mmX188mmX50mm
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-AP750
AIR-AP1200

COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Indoor Access Point


Highlights

Operation Modes: AP, Gateway, WISP, Repeater Modes
Wireless data rate: 300Mbps + 900Mbps
Distance covered: Up to 91 Meters
Users Supported: Access end users 128 max, concurrent end users 120
Technology Supported: Wave 2
Max. SSID: 8
Encryptio: WPA/WPA2PSK_TKIPAES
Standard: IEEE802.11AC/N/G/B
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Frequency Band: 2.4GHz+5GHz
WAN: 1x 10/100/1000M WAN
LAN: 1x 10/100/1000M LAN
DC: 12V, 1.5A
PoE Power: WAN Port 48V 802.3at POE+
AP: Standalone
Flash: 16MB
RAM: 128MB
RF Power: ≤ ≤ ≤28dBm
Dimensions: 198mmx198mmx28mm
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-AP1200
AIR-AP3000AX

COMMANDO AirONE 3000Mbps, 2.4GHz+5GHz, 802.11ax, OFDMA, Wi-Fi 6 Access Point


Highlights

Multiple Operational Modes like Gateway Mode, AP mode (Default mode is AP mode).
Multi SSID up to 8 with inbuilt WIFI channel analysis.
Supports IEEE 802.11ax/ac/b/g/n with backward compatibility for wireless clients.
Wireless Dual band with 2.4GHz (600Mbps 11ax 2*2) + 5GHz (2400Mbps 2*2) with radio RF Power 250mW.
Support wireless RF power adjustable as per user movements and environment.
Supports data rate up to 3000Mbps.
Comply with 11ax 2x2 MU-MIMO, 160MHz, dual band, High power up to 24dBi for stronger signal strength.
Supports large wireless coverage 91m and above in all directions depending on surrounding conditions.
Build in 4*4dBi dual band MIMO Antenna.
Access end users 128 and Max 64 users to access each band.
Supports 5G Prior band steering automatically moves to wider 5G band for faster connections, intelligent load balance based on users.
Support tag VLAN and VLAN management & client isolation to improve the wireless stability.
Supports advance security by MAC ACL, Static DHCP, Flow control, URL Mapping, IP/MAC/URL filters, Port mapping and DMZ.
Support Seamless Roaming, TWT & OFDM.
Dual purposes WAN or IEEE 802.3at Port (PoE+)port supporting 1x 10/100/1000Mbps and dedicated LAN ports 1x 10/100/1000Mbps.
Dual input for power either PoE+ via WAN port or DC power inputs 12V, 1.5A.
Support Open or encryption WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3.
Comply with IEEE 802.3az standard, Support Wi-Fi time on/off to save energy.
Plug and Play design simplifies installation with self-adaption.
Compact, silent design perfect for noise sensitive environments.
With Zero Touch Provisioning: Plug and play and no setup.
Affordable, Compatible & Easy-to-Use AP for all sized business networks. Suitable for Deployment of Large Scale Commercial Scenarios
Built-in High-Performance Processor with Flash: SPI NOR 8MB (1.8v) + NAND 128MB, and 512MB DDR3 RAM which greatly improved the data processing performance.
Comes with 1 year default warranty – optionally extendable up to 3 years.

https://www.commandonetworks.com/wireless/AIR-AP3000AX
AIR-AP1800AX

COMMANDO AirONE 1800Mbps, 2.4GHz+5GHz, 802.11ax/ac/b/g/n, Wave 2.0, Wi-Fi 6 Access Point


Highlights

Operation Modes: AP, Gateway Modes
Wireless data rate: 1800Mbps
Distance covered: 91+ Meters
Users Supported: Access end users 256 max, concurrent end users 120+
Technology Supported: Wave 2.0
Max. SSID: 8
Encryption: WPA/WPA2PSK_TKIPAES
Standard: IEEE 802.11ax/ac/b/g/n
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Frequency Band: 2.4GHz+5GHz
WAN: 1x 10/100/1000Mbps WAN
LAN: 1x 10/100/1000Mbps LAN
DC: 12V, 2A
PoE Power: WAN Port 48V, 802.3at POE+
AP: Standalone
Flash: SPI NOR 32MB
RAM: 256MB
Antenna & RF Power: Build in 3dBi MIMO Antenna, 300mW
Dimensions: 168mmX168mmX32mm
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-AP1800AX
AIR-APO300

COMMANDO AirONE 300Mbps, 2.4GHz, 802.11n, MIMO, Multi-Mode, Outdoor Access Point


Highlights

Operation Modes: AP, Gateway, Super WDS, WISP, Repeater Modes
Wireless data rate: 300Mbps
Distance Covered: Up to 500 meters
Users Supported Max: 64, Recommended: 50
Max. SSID: 4
Encryption: WPA/WPA2PSK_TKIPAES
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Standard: IEEE802.11N/G/B
Frequency: 2.4GHz
WAN: 1x 10/100Mbps
LAN: 1 x 10/100Mbps
APO: Standalone
Casing: Weatherproof Enclosure with IP65
DC: 12V 1.5A
PoE Power: Support 24V POE
Lightning Level: Common mode: 6KV; Differential mode 2KV
RF Power: 1000mW
Water-proof Level: IP65
Dimensions: 315mm * 145 mm * 80 mm
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-APO300
AIR-APO750

COMMANDO AirONE 750Mbps, 2.4GHz+ 5GHz, 802.11ac, MIMO, Multi-Mode, Outdoor Access Point


Highlights

Operation Modes: AP, Gateway, WISP, Repeater Modes
Wireless data rate: 300Mbps + 450Mbps
Distance Covered: Up to 500 meters
Users Supported: Max: 128, Recommended: 80
Max. SSID: 8
Encryption: WPA/WPA2PSK_TKIPAES
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Standard: IEEE802.11AC/N/G/B
Frequency: 2.4GHz + 5.8GHz
WAN: 1 x 10/100Mbps
LAN: 1 * 10/100Mbps
APO: Standalone
Casing: Weatherproof Enclosure with IP65
DC: 12V 1.5A
PoE Power: IEEE 802.3at/af 48V POE
Lightning Level: Common mode: 6KV; Differential mode 2KV
RF Power: 500mW
Water-proof Level: IP65
Dimensions: 315mm * 145 mm * 80 mm
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-APO750
AIR-APO1200

COMMANDO AirONE 1200Mbps, 2.4GHz+5GHz 802.11ac, Multi-Mode, Outdoor Access Point


Highlights

Operation Modes: AP, Gateway, WISP, Repeater Modes
Wireless data rate: 300Mbps + 900Mbps
Distance Covered: Up to 500 meters
Users Supported: Max: 128, Recommended: 100
Max. SSID: 8
Encryption: WPA/WPA2PSK_TKIPAES
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Standard: IEEE802.11AC/N/G/B
Frequency: 2.4GHz + 5.8GHz
WAN: 1 x 10/100/1000Mbps
LAN: 1 x 10/100/1000Mbps
APO: Standalone
Casing: Weatherproof Enclosure with IP65
DC: 12V 1.5A
PoE Power: IEEE 802.3at 48V POE
Lightning Level: Common mode: 6KV; Differential mode 2KV
RF Power: 500mW
Water-proof Level: IP65
Dimensions: 257mm * 87mm * 38 mm
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-APO1200
AIR-CPE1K+

COMMANDO AirONE 1KM+, 300Mbps, 2.4GHz, 802.11n, MIMO, Wireless Bridge


Highlights

Operation Modes: AP, Super WDS, Repeater, Gateway Modes
Wireless data rate: 300Mbps
Distance covered: Up to 1KM
Encryption: WPA/WPA2PSK_TKIPAES
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Standard: IEEE802.11b/g/n
Frequency: 2.4GHz
WAN: 1x 10/100Mbps
LAN: 1x 10/100Mbps
Casing: Weatherproof Enclosure with IP65
POE Power: Support 24V POE
Antenna: 11dBi Panel Antenna
RF Power: 100mW
Lightning Level: Common mode: 6KV; Differential mode +2kV
Flash/RAM: 8MB/64MB
PoE IN: 24V, 0.5A
DC IN: 12V, 0.5A
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-CPE1K+
AIR-CPE10K+

COMMANDO AirONE 10KM+, 900Mbps, 5GHz, 802.11ac, MIMO, Wireless Bridge


Highlights

Operation Modes: AP, Super WDS, Repeater, WISP, Gateway Modes
Wireless data rate: 900Mbps
Distance covered: Up to 10KM
Encryption: WPA/WPA2PSK_TKIPAES
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Standard: IEEE802.11ac/an/a
Frequency: 5.8GHz
WAN: 1 x 10/100/1000Mbps
LAN: 1 x 10/100/1000Mbps
Casing: Weatherproof Enclosure with IP65
POE Power: 24V Passive POE
Antenna: 18dBi Panel Antenna
RF Power: 500mW
Lightning Level: Common mode: 6KV; Differential mode +2kV
Flash/RAM: 16MB/128MB
PoE IN: 24V, 1A
DC IN: 12V, 1A
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-CPE10K+
AIR-CPE5K+

COMMANDO AirONE 5KM+, 900Mbps, 5GHz, 802.11ac, MIMO, Wireless Bridge


Highlights

Operation Modes: AP, Super WDS, Repeater, Gateway Modes
Wireless data rate: 900Mbps
Distance covered: Up to 5KM
Encryption: WPA/WPA2-PSK
Wi-Fi analysis: Inbuilt Wi-Fi channel analysis.
Standard: IEEE802.11ac/a
Frequency: 5.8GHz
WAN: 1 x 10/100/1000Mbps
LAN: 1 x 10/100/1000Mbps
Casing: Weatherproof Enclosure with IP65
POE Power: 24V Passive POE
Antenna: 15dBi Panel Antenna
RF Power: 500mW
Lightning Level: Common mode: 6KV; Differential mode +2kV
Flash/RAM: 16MB/128MB
PoE IN: 24V, 1A
DC IN: 12V, 1A
Restore factory default: 1x Reset Button/ Software based
Operating and Storage Temperature: -40°C to +70°C
Operating Humidity: 5%~95%RH Non-Condensing

https://www.commandonetworks.com/wireless/AIR-CPE5K+

Share this link via

Or copy link

COMMANDO Networks Whatsapp
COMMANDO Networks Telegram
