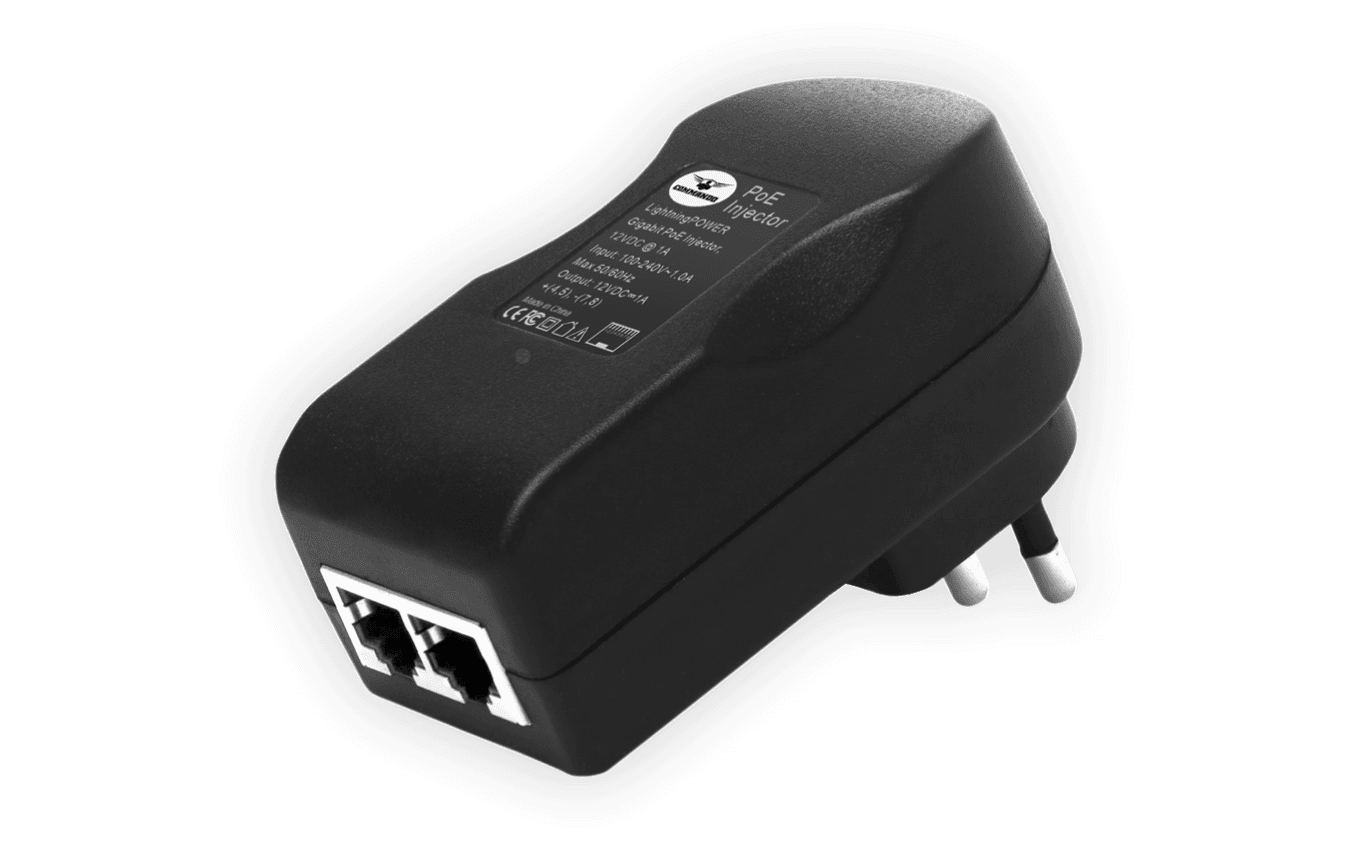

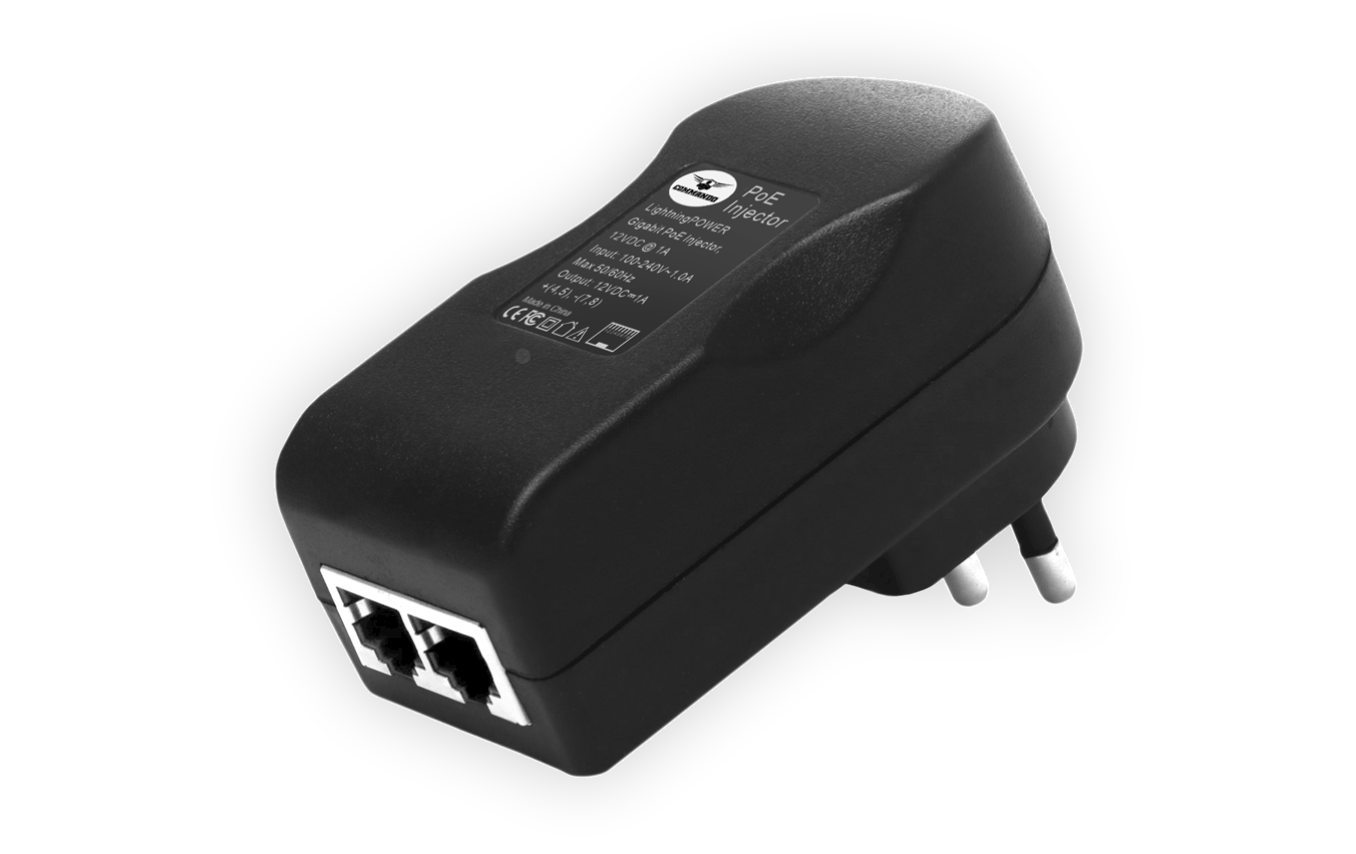

COMMANDO LightningPOWER 10/100Mbps, Max Power 48VDC @ 0.5A, PoE Injector
COMMANDO LightningPOWER 10/100Mbps, Max Power 48VDC @ 0.5A, PoE Injector
COMMANDO LightningPOWER 10/100Mbps, Max Power 48VDC @ 0.5A, PoE Injector
COMMANDO LightningPOWER 10/100Mbps, Max Power 48VDC @ 0.5A, PoE Injector
COMMANDO LightningPOWER Gigabit PoE Injector, Power Over Ethernet up to 48VDC@0.5A (Max 24W), Non-PoE/Non-Compliance PoE Standard,Combines Electrical Power with a Gigabit Network Connection to Produce a Gigabit Power over Ethernet (PoE) Signal, Expands Network to Areas with no Power Lines or Outlets are Available, Plug and Play no Configuration Required, Ideal for use with IP Phone, Access Points, IP Print Servers, Security Cameras, Smart Door System
Price & Availability:
COMMANDO LightningPOWER PoE Injector, Power Over Ethernet up to 48VDC@0.5A (Max 24W), Non-PoE/Non-Compliance PoE Standard, Expands Network to Areas with no Power Lines or Outlets are Available, Plug and Play no Configuration Required, Ideal for use with IP Phone, Access Points, IP Print Servers, Security Cameras, Smart Door System.
Hardware | |
---|---|
Model | CMD-FPOE-48V-0.5A |
PoE Standard | Non-PoE/Non-Compliance Standard |
Input | 100-240V AC, 50-60Hz |
Output | 48VDC@0.5A (Max 24W) |
Interface | 10/100/1000Mbps |
Adjusting range | 90-264VAC, 47-63Hz |
Protection | Short-circuit/over-load/over-current/over-voltage protection |
Pin assignments | Pin (4, 5+/7, 8-) |
Output ripple | 1% max |
Efficiency | >=90% |
Response time | <1ns |
Combined load regulation | ±3% |
Combined line regulation | ±5% |
Operating temp | 0 to 40°C (32 to 104°F) |
Operating humidity | 10 to 90% non condensing |
